2.3
Assembly
Before assembly, take a close look at the individual assembly steps shown and carry out the assembly
in the order given.
NOTICE
L
First loosely screw all parts together and check that they fit properly. Tighten the screws using
the tool only when you are instructed to do so.

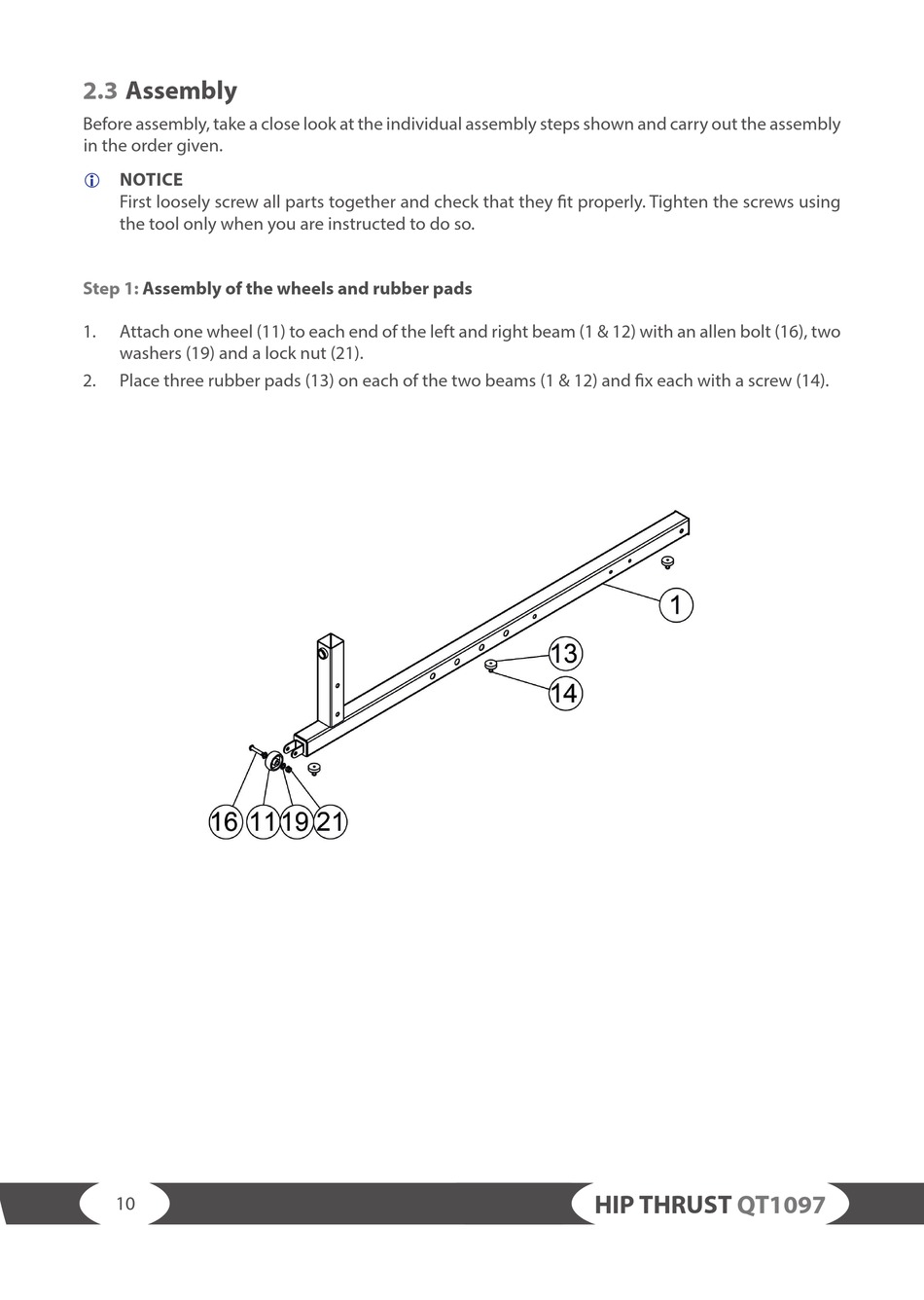

Step 1:
Assembly of the wheels and rubber pads
1.
Attach one wheel (11) to each end of the left and right beam (1 & 12) with an allen bolt (16), two
washers (19) and a lock nut (21).
2.
Place three rubber pads (13) on each of the two beams (1 & 12) and fix each with a screw (14).
