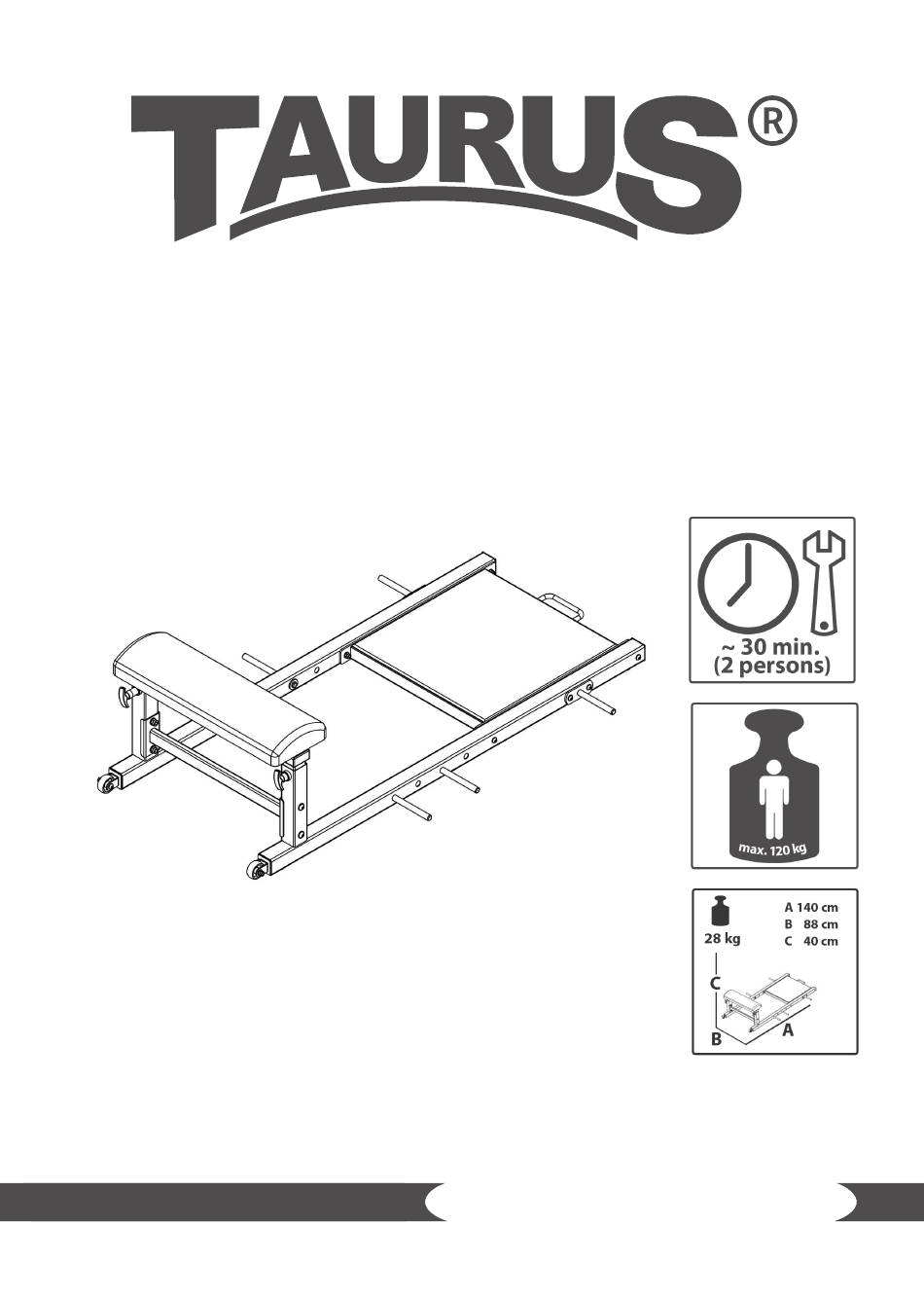

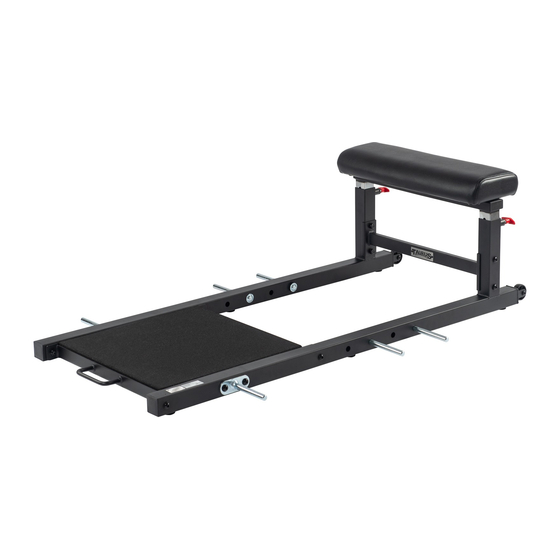

- Page 1 Assembly Instructions TFQT1097.01.01 TF-QT1097 TAURUS LIGHT COMMERICAL HIP THRUST...
- Page 2 HIP THRUST QT1097...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly STORAGE AND TRANSPORT General Instructions Transportation Wheels TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List... - Page 4 With Taurus® fitness equipment, the focus is on what sport is all about: maximum performance! Therefore, the equipment is developed in close consultation with athletes and sports scientists.
- Page 5 ABOUT THIS MANUAL Please carefully read the entire manual before installation and first use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
-
Page 6: General Information
GENERAL INFORMATION Technical Data Weight and Dimensions Article weight (gross, incl. packaging): 30 kg Article weight (net, excl. packaging): 28 kg Package dimensions (L x W x H): approx. 146 cm x 52 cm x 14.5 cm Set-up dimensions (L x W x H): approx. 140 cm x 88 cm x 40 cm Maximum user weight: 120 kg HIP THRUST QT1097... -
Page 7: Personal Safety
Personal Safety ⚠ DANGER Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 8: Set-Up Place
Set-Up Place ⚠ WARNING Do not place the equipment in main corridors or escape routes. CAUTION ⚠ The training room should be well ventilated during training and not be exposed to any draughts. Choose the place in which to set up the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. -
Page 9: Scope Of Delivery
Scope of Delivery The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. In the event of complaints, the contractual partner must be contacted directly. CAUTION ⚠... -
Page 10: Assembly
Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Tighten the screws using the tool only when you are instructed to do so. Step 1: Assembly of the wheels and rubber pads Attach one wheel (11) to each end of the left and right beam (1 &... - Page 11 Step 2: Mounting the cross brace and the footrest Mount the two beams (1 & 12) to the ends of the cross beam (6) using two allen bolts (17), four washers (20) and two lock nuts (22). Mount the main beam (2) to the two beams (1 & 12) with each two allen bolts (18), four washers (20) and two lock nuts (22).
- Page 12 Step 3: Assembly of the backrest frame, upholstery and retaining pins Slide the ends of the support (3) into the holes of the two beams (1 & 12). WARNING ⚠ Make sure that the fast pins (10) audibly engage in the adjusting holes of the support (3) during the next step.
-
Page 13: Storage And Transport
STORAGE AND TRANSPORT General Instructions WARNING ⚠ The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ࣑... -
Page 14: Troubleshooting, Care And Maintenance
TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions WARNING ⚠ Do not make any improper changes to the equipment. ⚠ CAUTION Damaged or worn components may affect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner. -
Page 15: Disposal
DISPOSAL At the end of its operational life, this equipment cannot be disposed of in normal household waste. Instead, it must be disposed of via an electricals recycling centre. Further information can be obtained from your local authority‘s recycling service. The materials can be recycled as per their symbols. -
Page 16: Recommended Accessories
RECOMMENDED ACCESSORIES To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. This could be a floor mat, for example, which makes your fitness equipment stand more securely and also protects the floor from falling sweat, but it could also be additional handrails on some treadmills or silicone spray to keep moving parts in good shape. -
Page 17: Ordering Spare Parts
The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate field. Serial number: Brand / Category: Taurus / Hip Thrust Model Name: QT1097 Article Number: TF-QT1097... -
Page 18: Parts List
Parts List Specification Name Qty. QT1097-01-00L Left Beam QT1097-02-00 Main Beam QT1097-03-00 Support QT1097-04-00 Strap Support Tube QT1097-05-00 Board QT1097-06-00 Cross Beam QT1097-08-00 Tube QT1049B-05-00 Square Rubber Pad 1.12.15.10970000000000000 Cushion 1.08.75.002000000400400 Fast pin 1.99.05.000000000001000 Wheel QT1097-01-00R Right Beam 1.05.99.000430100000700 Rubber Pad 1.08.25.000600100001036 Allen Bolt M6*10 1.08.25.000800250001036... -
Page 19: Exploded Drawing
Exploded Drawing 19 21... -
Page 20: Warranty
WARRANTY Training equipment from Taurus® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. - Page 21 Warranty Conditions For the warranty to be valid, the following steps must be taken: Please contact our customer service by email or phone. If the product under warranty has to be sent in for repair, the seller bears costs. After expiry of the warranty, the buyer bears the costs of transport and insurance.
-
Page 22: Contact
CONTACT TECHNICAL SUPPORT TECHNICAL SUPPORT & SERVICE TECHNICAL SUPPORT & SERVICE �� �� �� +49 4621 4210-900 80 90 16 50 +33 (0) 172 770033 +49 4621 4210-945 +49 4621 4210-933 �� +49 4621 4210-698 �� �� info@fitshop.dk service-france@fitshop.fr �� technik@sport-tiedje.de ��... - Page 23 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA Sport-Tiedje is Europe’s largest specialist store for www.sport-tiedje.co.uk home fitness equipment with currently 80 stores www.sport-tiedje.de/blog and one of the world’s most renowned online mail order companies for fitness equipment. Private customers order via the 25 web shops www.facebook.com/SportTiedje in the respective national language or have their desired equpiment assembled on site.
- Page 24 TAURUS LIGHT COMMERICAL HIP THRUST...
