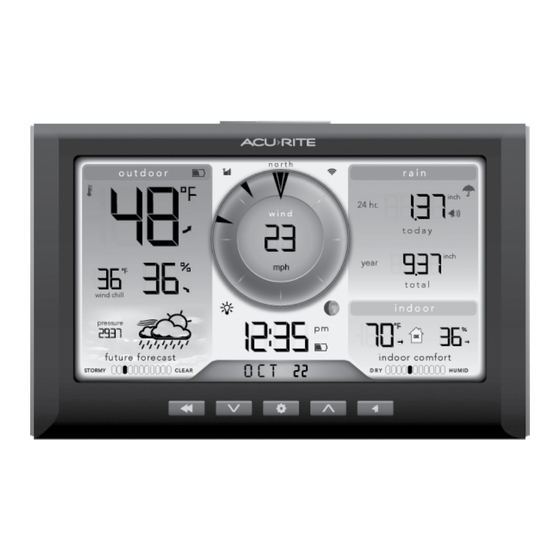

Instruction Manual Professional Weather Display model 06086 This product requires an AcuRite 5-in-1 Weather Sensor (sold separately) to be operational. CONTENTS Backlight Settings ....10 Unpacking Instructions ... 2 Using the Weather Center ..11 Package Contents ....2 Programmable Alarms ...12 Product Registration ....
Congratulations on your new AcuRite product. To ensure the best possible product performance, please read this manual in its entirety and retain it for future reference. Unpacking Instructions Remove the protective film that is applied to the LCD screen prior to using this product.
Wi-Fi Setup for Weather Underground This weather station features wireless Internet connectivity in order to connect and send your data to Weather Underground . If you do not already have a WU (Weather Underground ) account, please create your account at wunderground.com prior to the following Wi-Fi setup.
Features & Benefits DEVICE ID ############ DISPLAY BACK 1. Backlight Button 5. Plug-in for Power Adapter For momentary backlight and dimmer 6. Battery Compartment Cover settings. 7. Power Adapter 2. Integrated Hang Holes For easy wall mounting. 8. RESET Button 3.
Page 7
DISPLAY FRONT 1. Seasonal Display Button Heat Index calculation displays For viewing high and low records. when temperature is 80°F (27°C) Icon or higher. Dew Point calculation auto Indicates display is in auto-dimming displays when temperature is brightness mode (see page 9). 79°F (26°C) or below.
SETUP Display Setup Set the A-B-C Switch 2. Insert 3 x AAA batteries into the battery compartment, as Locate the A-B-C switch inside the shown. Follow the polarity battery compartment. Set the A-B-C (+/-) diagram in the battery switch to A, B or C. You must select compartment.
Placement for Maximum Accuracy AcuRite sensors are sensitive to surrounding environmental conditions. Proper placement of both the display and the sensor are critical to the accuracy and performance of this unit. Display Placement Place the display in a dry area free of dirt and dust. Display stands upright for tabletop use and is wall-mountable.
Set the Time, Date & Units Press the “ ” button, located on the front of the display, to enter SET MODE. Once in set mode, the preference you are currently setting will blink on the display. To adjust the currently selected (flashing) item, press and release the “ “...
OPERATION Using the Professional Weather Center Learning Mode Self-Calibrating Forecasting use a unique algorithm to analyze changes in pressure over a time period (called Learning Mode) to determine your altitude. After 14 days, the self-calibrated pressure is tuned in to your location and the unit is ready for superior weather prediction. Weather Forecast AcuRite’s patented Self-Calibrating Forecasting provides your personal forecast of weather conditions for the next 12 to 24 hours by collecting data from the sensor in your backyard.
Programmable Alarms This display features programmable alarms that sound an alert to notify you when a value (for outdoor temperature, humidity, wind speed or rainfall) has been reached or exceeded. When an alarm is triggered, the display emits an audible beep and flashes data in the affected category.
Troubleshooting Problem Possible Solution • Relocate the display and/or the 5-in-1 sensor. The units must be within 330 ft (100 m) of each other. • Make sure both units are placed at least 3 feet (.9 m) away from electronics that may interfere with the wireless communication (such as TVs, microwaves, computers, etc).
Page 14
Troubleshooting Problem Possible Solution • Your internet router and display must be within range of each other. Relocate your display closer to your router. • Ensure the network name (SSID) and password you've entered are correct. NOTE: Both network name and password are case sensitive.
If your AcuRite product does not operate properly after trying the troubleshooting steps, visit www.AcuRite.com or email support@chaney-inst.com for assistance. Care & Maintenance Display Care Clean with a soft, damp cloth. Do not use caustic cleaners or abrasives. Keep away from dust, dirt and moisture.
Specifications DISPLAY’S BUILT-IN 32ºF to 122ºF; 0ºC to 50ºC TEMPERATURE SENSOR RANGE DISPLAY’S BUILT-IN 1% to 99% HUMIDITY SENSOR RANGE OPERATING FREQUENCY 433 MHz 5V power adapter POWER 3 x AAA alkaline batteries (optional) DATA REPORTING Display: Indoor temperature & humidity: 60 second updates Wind Speed: 18 second updates;...
Customer Support AcuRite customer support is committed to providing you with best-in- class service. For assistance, please have the model number of this product available and contact us in any of the following ways: support@chaney-inst.com AcuRite Visit us at www. .com Installation Videos Register your Product...
Instruction Manual 5-in-1 PRO+ Weather Sensor model 06014 Package Contents 1. 5-in-1 PRO+ Weather Sensor 2. Mounting Hardware 3. Sensor Mounting Bracket 4. Instruction Manual IMPORTANT PRODUCT MUST BE REGISTERED TO RECEIVE WARRANTY SERVICE PRODUCT REGISTRATION Register online to receive 1 year warranty protection www.AcuRite.com Questions? Contact Customer Support at...
Page 20
Features & Benefits 5-in-1 SENSOR 5. Temperature & Humidity Sensors 1. Rainfall Collector Funnel (internal) 2. Solar Cell Panel 6. Mounting Point Converts sunlight into power to run Wind Speed Anemometer internal aspirating fan. Internal Aspirating Fan 8. Wind Direction Vane (not shown) 9.
Page 21
SETUP 5-in-1 Sensor Setup Set the A-B-C Switch The 5-in-1 sensor requires lithium Locate the A-B-C switch inside the batteries in low temperature battery compartment. Set the A-B-C conditions. Cold temperatures can switch to A, B or C. You must select cause alkaline batteries to function the same letter choice for both the improperly.
Page 22
Placement for Maximum Accuracy AcuRite sensors are sensitive to surrounding environmental conditions. Proper placement of both the display and the sensor are critical to the accuracy and performance of this product. 5-in-1 Sensor Placement The 5-in-1 sensor is designed to remain outdoors all year long. Choose an open location with no obstructions above or around the sensor for the most accurate measurements.
Page 23
5-in-1 Sensor Installation Guidelines INSTALLATION HEIGHT Mount the sensor at a minimum height of 5 feet (1.5 meters) off the ground, in an open area. Higher is better for wind measurements - the National Weather Service recommends 33 feet (10 meters) high! MOUNTING OPTIONS The included mounting bracket is designed to screw directly onto wooden posts or surfaces that are 2”x 4”...
Page 24
Calibrate the Rain Gauge The rain gauge on the 5-in-1 sensor can be calibrated to improve accuracy. Items Needed: 5-in-1 sensor, companion unit, plastic cup, pin, screw driver 1. First, ensure 5-in-1 sensor is perfectly level using built-in bubble level. 2.
Page 25
FCC Information This device complies with part 15 of FCC rules. Operation is subject to the following two conditions: 1- This device may NOT cause harmful interference, and 2- This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Page 27
• At least one compatible AcuRite device WHAT YOU NEED ® • Network router with an available Ethernet port (not included) • “Always-on” internet connection PACKAGE CONTENTS CONNECT ACCESS Connect the Ethernet cable to the Access 1. AcuRite Access 2. Ethernet cable 3.
