This product requires an AcuRite 5-in-1 Weather Sensor
CONTENTS
Unpacking Instructions ........... 2
Package Contents .................. 2
Product Registration ............... 2
Wi-Fi Setup............................ 3
Features & Benefits ................. 4
Setup .................................... 7
Placement Guidelines ............. 8
Questions?
www.AcuRite.com/support or email support@chaney-inst.com
SAVE THIS MANUAL FOR FUTURE REFERENCE.
Weather Station Display
(sold separately) to be operational.
Instruction Manual
High Resolution
Using the Weather Station ...... 9
Expand the System................ 11
Troubleshooting ....................12
Care & Maintenance .............14
Specifications ........................14
FCC Information ...................14
Customer Support .................15
Warranty..............................15
model 06088
Advertisement
Table of Contents
Related Manuals for ACU-RITE 06088
Summary of Contents for ACU-RITE 06088
-
Page 1: Table Of Contents
Instruction Manual High Resolution Weather Station Display model 06088 This product requires an AcuRite 5-in-1 Weather Sensor (sold separately) to be operational. CONTENTS Using the Weather Station ..9 Unpacking Instructions ... 2 Expand the System....11 Package Contents ....2 Troubleshooting ....12... -
Page 2: Unpacking Instructions
Congratulations on your new AcuRite product. To ensure the best possible product performance, please read this manual in its entirety and retain it for future reference. Unpacking Instructions Remove the protective film that is applied to the LED screen prior to using this product. -
Page 3: Wi-Fi Setup
Wi-Fi Setup for Weather Underground and Dark Sky Forecast This weather station features wireless internet connectivity in order to connect and down- load forecasts from Dark Sky. You also have the option to share your weather data with Weather Underground, but this is not required to get a forecast. 1. -
Page 4: Features & Benefits

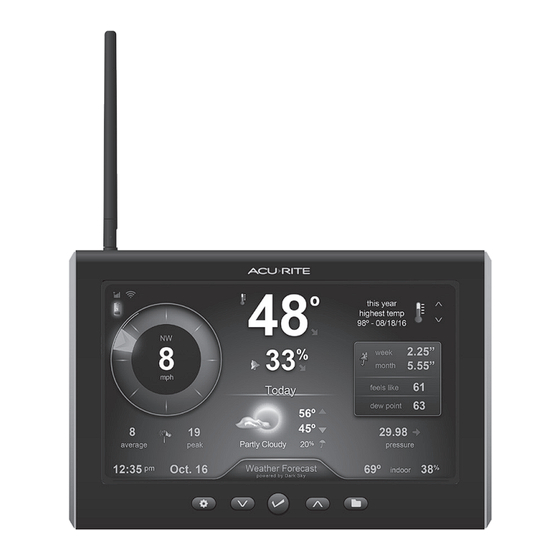

Features & Benefits Display BACK OF DISPLAY Buttons For setup preferences and manually 1. Plug-in for Power Adapter cycling through messages (see 2. Display Stand page 6). Button 3. Mounting Bracket For setup preferences. For easy wall mounting. Button FRONT OF DISPLAY For viewing high &... - Page 5 Features & Benefits Weather Overview Dashboard...
- Page 6 1. 5-in-1 Sensor Signal Strength 17. Messages Displays weather information and 2. Sensor Low Battery Indicator messages (see page 11). 3. Current Wind Direction 18. Current Outdoor Humidity 4. Current Wind Speed Arrow icon indicates direction Background color changes based on humidity is trending.
-
Page 7: Setup
SETUP Display Setup Plug Power Adapter into Electrical Outlet Settings After powering on for the first time, the display will automatically enter setup mode. Follow the on-screen instructions to set up the display. To adjust the currently selected item, press and release the “ ”... -
Page 8: Placement Guidelines
Placement for Maximum Accuracy AcuRite sensors are sensitive to surrounding environmental conditions. Proper placement of both the display and the sensor are critical to the accuracy and performance of this unit. Display Placement Place the display in a dry area free of dirt and dust. Display stands upright for tabletop use and is wall-mountable. -
Page 9: Using The Weather Station
OPERATION Using the Weather Station Navigate to the main menu at any time by pressing the “ ” button. From the main menu, you can view records, set alarms, setup an additional sensor and more. 1. Records Access the “Records” sub-menu to view high and low values recorded for each location by date and view trends for the sensor’s readings on a graphic chart. - Page 10 AUTO DIM MODE: Automatically adjusts display brightness based on time of day. 6:00 a.m. - 9:00 p.m. = 100% brightness 9:01 p.m. - 5:59 a.m.= 15% brightness 5. Connections Access the “Connections” sub-menu to add, remove or view information about a sensor, or enable Wi-Fi setup. 6.
-
Page 11: Expand The System
Expand the System Compatible Sensor This weather station measures temperature, humidity, wind speed, wind direction and Lightning Sensor rainfall. The weather station can be expanded Model 06045 to include lightning detection by connecting a compatible AcuRite Lightning Sensor (optional; sold separately). NAME DATE DIMENSIONS ARE IN INCHES... -
Page 12: Troubleshooting
Troubleshooting Problem Possible Solution • Relocate the display and/or the 5-in-1 sensor. The units must be within 330 ft (100 m) of each other. • Make sure both units are placed at least 3 feet (.9 m) away from electronics that may interfere with the wireless communication (such as TVs, microwaves, computers, etc). - Page 13 Problem Possible Solution • Make sure both the display and 5-in-1 sensor are placed away from any heat sources or vents (see page 8). • Make sure both units are positioned away from Inaccurate temperature moisture sources (see page 8). or humidity •...
-
Page 14: Care & Maintenance
Care & Maintenance Display Care Clean with a soft, damp cloth. Do not use caustic cleaners or abrasives. Keep away from dust, dirt and moisture. Clean ventilation ports regularly with a gentle puff of air. Specifications DISPLAY’S BUILT-IN 32ºF to 122ºF; 0ºC to 50ºC TEMPERATURE SENSOR RANGE DISPLAY’S BUILT-IN... -
Page 15: Customer Support
Customer Support AcuRite customer support is committed to providing you with best-in- class service. For assistance, please have the model number of this product available and contact us in any of the following ways: support@chaney-inst.com AcuRite Visit us at www. .com Installation Videos Register your Product... - Page 16 ©Chaney Instrument Co. All rights reserved. AcuRite is a registered trademark of the Chaney Instrument Co., Lake Geneva, WI 53147. All other trademarks and copy- rights are the property of their respective owners. AcuRite uses patented technology. Printed in China 06088 INST 103118 Visit www.AcuRite.com/patents for details.
-
Page 17: Contact Customer Support At
Instruction Manual 5-in-1 PRO+ Weather Sensor model 06014 Package Contents 1. 5-in-1 PRO+ Weather Sensor 2. Mounting Hardware 3. Sensor Mounting Bracket 4. Instruction Manual IMPORTANT PRODUCT MUST BE REGISTERED TO RECEIVE WARRANTY SERVICE PRODUCT REGISTRATION Register online to receive 1 year warranty protection www.AcuRite.com Questions? Contact Customer Support at... - Page 18 Features & Benefits 5-in-1 SENSOR 5. Temperature & Humidity Sensors 1. Rainfall Collector Funnel (internal) 2. Solar Cell Panel 6. Mounting Point Converts sunlight into power to run Wind Speed Anemometer internal aspirating fan. Internal Aspirating Fan 8. Wind Direction Vane (not shown) 9.
- Page 19 SETUP 5-in-1 Sensor Setup Set the A-B-C Switch The 5-in-1 sensor requires lithium Locate the A-B-C switch inside the batteries in low temperature battery compartment. Set the A-B-C conditions. Cold temperatures can switch to A, B or C. You must select cause alkaline batteries to function the same letter choice for both the improperly.
- Page 20 Placement for Maximum Accuracy AcuRite sensors are sensitive to surrounding environmental conditions. Proper placement of both the display and the sensor are critical to the accuracy and performance of this product. 5-in-1 Sensor Placement The 5-in-1 sensor is designed to remain outdoors all year long. Choose an open location with no obstructions above or around the sensor for the most accurate measurements.
- Page 21 5-in-1 Sensor Installation Guidelines INSTALLATION HEIGHT Mount the sensor at a minimum height of 5 feet (1.5 meters) off the ground, in an open area. Higher is better for wind measurements - the National Weather Service recommends 33 feet (10 meters) high! MOUNTING OPTIONS The included mounting bracket is designed to screw directly onto wooden posts or surfaces that are 2”x 4”...
- Page 22 Calibrate the Rain Gauge The rain gauge on the 5-in-1 sensor can be calibrated to improve accuracy. Items Needed: 5-in-1 sensor, companion unit, plastic cup, pin, screw driver 1. First, ensure 5-in-1 sensor is perfectly level using built-in bubble level. 2.
- Page 23 FCC Information This device complies with part 15 of FCC rules. Operation is subject to the following two conditions: 1- This device may NOT cause harmful interference, and 2- This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
