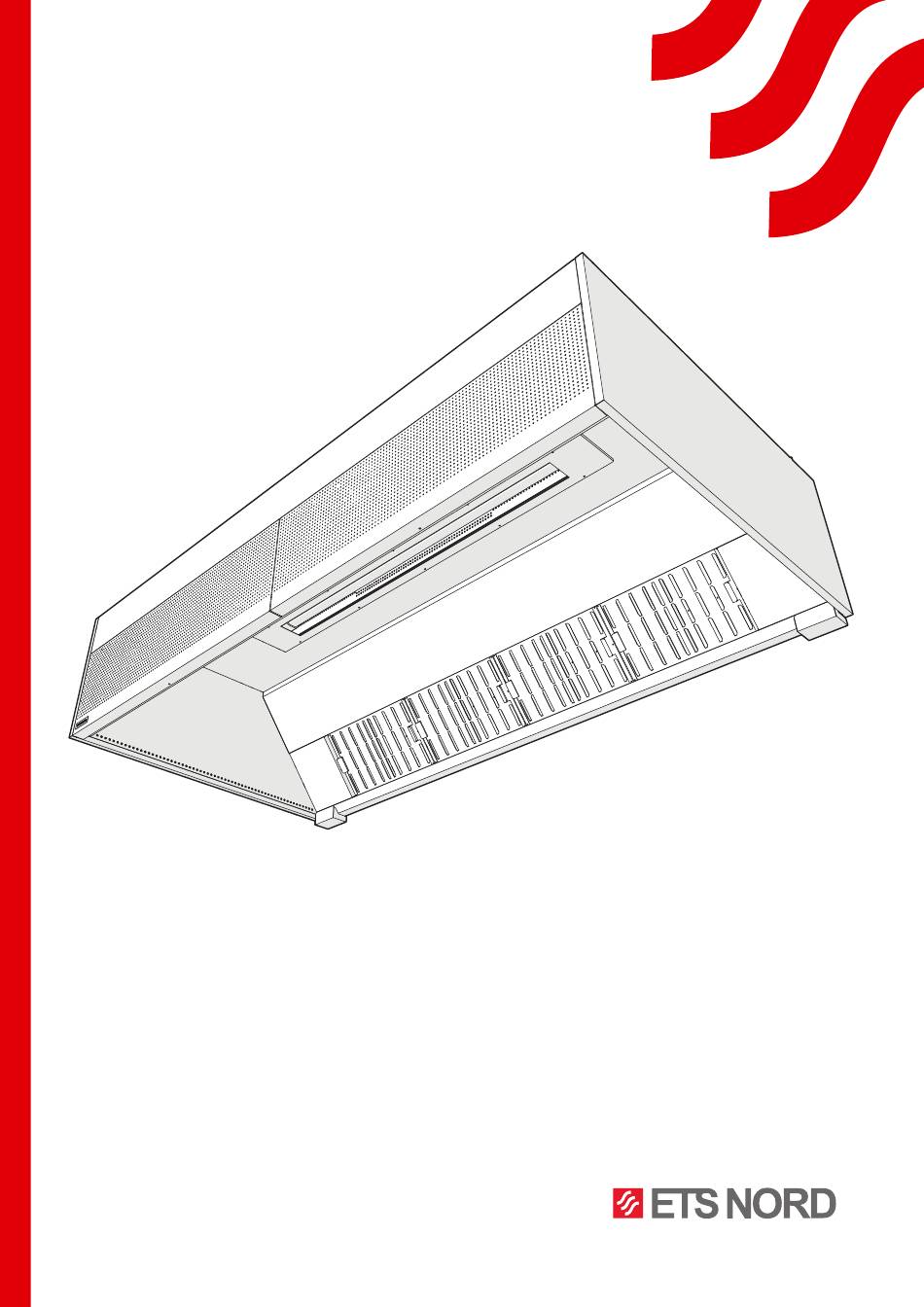

- Page 1 NORDcanopy aSAP – a Self Assembly Package Installation, use and maintenance manual www.nordcooking.ee...
- Page 2 ® NORDcanopy | aSAP Content 1. Assembling the canopy 2. Canopy installation 3. Measuring and adjusting airflow 4. Accessories 5. Maintenance Installation, use and maintenance manual A1 – Grease chamber B1 – Side panels C1 – Supply chamber E1 – Ceiling panel D1 –...
- Page 3 ® NORDcanopy | aSAP 1. Assembling the canopy 1.1 Preparations Note! For assembly a clean surface and packaging foam piece (a) is needed 1.2 Connecting the side panels with grease chamber M4/16 M5/10 Gx12 1.3 Removing the front panel of supply chamber Images are for illustrative purposes.
- Page 4 ® NORDcanopy | aSAP 1.4 Connecting the supply chamber M4/16 M5/10 Gx10 1.5 Flipping the canopy Flip 180° 1.6 Supporting the side on a modular canopy Gx12 M5/10 M4/16 www.etsnord.com RDM-035-0922...
- Page 5 ® NORDcanopy | aSAP 1.7 Assembling the lighting fixture M5/10 M4/16 1.8 Assembling the ceiling panel M4/16 M5/10 Images are for illustrative purposes. RDM-035-0922 We reserve the right to make changes.
- Page 6 ® NORDcanopy | aSAP 1.9 Blind panel installation on the filter rail of the HU Steam canopy www.etsnord.com RDM-035-0922...
-
Page 7: Canopy Installation
® NORDcanopy | aSAP 2. Canopy installation 1 – Supply air adjustment plate 2 – Supply air connection 3 – Ozonator 4 – Front panel 5 – Suspension points 6 – Lighting 7 – Exhaust air connection 8 – Adjustment plate for exhaust air 9 –... - Page 8 ® NORDcanopy | aSAP L+50 L-30 L+50 L1+25 L2+25 L2-30 Safety! It is prohibited to hold or add additional weight on the top of the canopy.. 2.1 Removing the ceiling panel Optional! With larger canopies, removing the center ceiling panel can provide better access for exhaust duct and insulation installation.
- Page 9 ® NORDcanopy | aSAP 2.2 Hanging the kitchen canopy and ozone duct installation 2.3 Leveling the canopy Is performed for each module. 2.4 Opening the front panel Note! The panel locks automatically. At the end of the installation, make sure that the panels are correctly fixed. Images are for illustrative purposes.
- Page 10 ® NORDcanopy | aSAP 2.5 Fastening kitchen canopy modules together 2.5.1 Hanging the canopy modules Each module has to be suspended at least from four anchor points M5/10 M5/10 2.5.2 Sequential connection 5x G 6x G 2.5.3 Installation of the ceiling panel between the modules 4x H www.etsnord.com RDM-035-0922...
- Page 11 ® NORDcanopy | aSAP 2.5.4 Fastening sides back-to-back Requires additional bolt holes. M5/10 M5/10 M4/16 4x G 4x Ø6mm 2.6 Installing grease collection containers and blind panels for the grease filter rail 2.7 nstalling HFK grease filters Images are for illustrative purposes. RDM-035-0922 We reserve the right to make changes.
- Page 12 ® NORDcanopy | aSAP 2.8 Installing the ozonator Connecting and starting the ozonator is described in the “Ozonator Installation and Maintenance Manual”. 2.9 Lighting connection Note! PERFORMED BY ELECTRICIAN www.etsnord.com RDM-035-0922...
- Page 13 ® NORDcanopy | aSAP 3. Measuring and adjusting airflow NORDcanopy canopies are fitted with measuring nozzles located inside the canopy. ATTN! During measurement, HFK all grease filters and blind plates must be in place and the front panel must be closed. In order to adjust supply airflow, the position of the adjusting plate located in the supply chamber is adjusted.
- Page 14 ® NORDcanopy | aSAP 4. Accessories 4.1 Installation of cover plates 4.2 Grease filter removal tool Use the Helping Hand filter tool for easy filter handling. www.etsnord.com RDM-035-0922...
-
Page 15: Maintenance
® NORDcanopy | aSAP 5. Maintenance 5.1 Replacing the luminaires NORDcanopy kitchen canopys use integrated light fixtures with protection class IP 66. All luminaires are fitted with a power cable (3x1.5 mm, length 1,5 m) and a junction box. To remove luminaires, fastening screws of the protective glass are unfastened and the glass is removed. - Page 16 ETS NORD AS Address: Peterburi tee 53 11415 Tallinn Estonia Phone: +372 680 7360 info@etsnord.ee www.etsnord.ee ETS NORD Finland Address: Pakkasraitti 4 04360 Tuusula Finland Phone: +358 40 18 42 842 info@etsnord.fi www.etsnord.fi ETS NORD Sweden Address: Järsjögatan 7 69235 Kumla...
