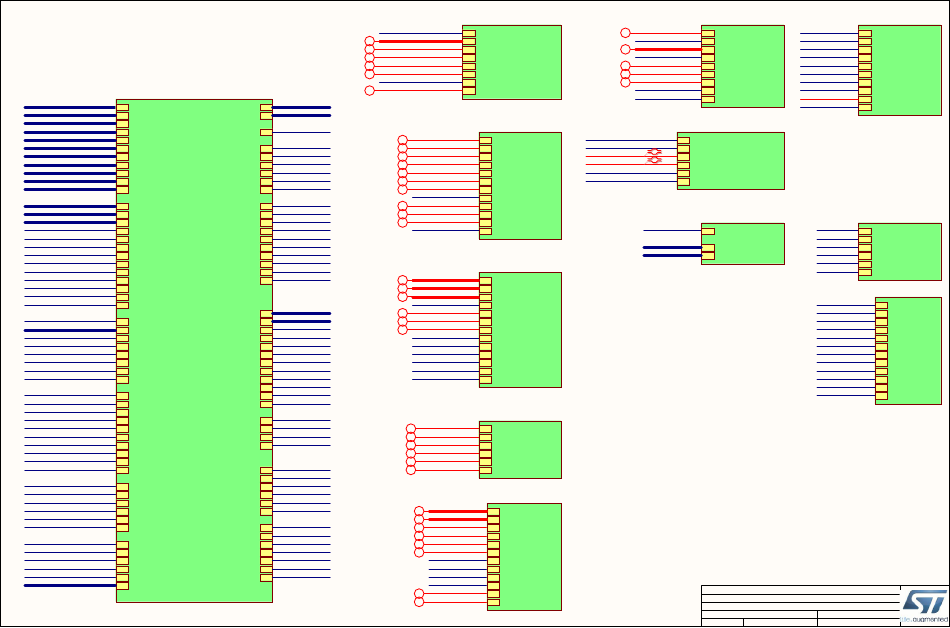

U_STM32F7
STM32F7.SchDoc
PA[0..15]
PA[0..15]
PB[0..15]
PB[0..15]
ARD_D[0..15]
PC[0..15]
PC[0..15]
PD[0..15]
PD[0..15]
PE[0..15]
PE[0..15]
PF[0..15]
PF[0..15]
PG[0..15]
PG[0..15]
PH[0..15]
PH[0..15]
PI[0..15]
PI[0..15]
PJ[0..15]
PJ[0..15]
PK[0..7]
PK[0..7]
LCD_R[0..7]
LCD_R[0..7]
LCD_G[0..7]
LCD_G[0..7]
LCD_B[0..7]
LCD_B[0..7]
SAI2_MCLKA
LCD_BL_CTRL
LCD_BL_CTRL
LCD_HSYNC
LCD_HSYNC
LCD_CLK
LCD_CLK
LCD_VSYNC
LCD_VSYNC
LCD_DISP
LCD_DISP
LCD_DE
LCD_DE
LCD_RST
LCD_RST
LCD_INT
LCD_INT
LCD_SDA
LCD_SDA
LCD_SCL
LCD_SCL
FMC_A[0..11]
DCMI_NRST
DCMI_NRST
FMC_D[0..15]
DCMI_D[0..7]
DCMI_D[0..7]
FMC_SDNWE
DCMI_PWR_EN
DCMI_PWR_EN
FMC_SDNRAS
DCMI_VSYNC
DCMI_VSYNC
FMC_SDNCAS
DCMI_HSYNC
DCMI_HSYNC
FMC_SDCLK
DCMI_PIXCK
DCMI_PIXCK
DCMI_SDA
DCMI_SDA
DCMI_SCL
DCMI_SCL
FMC_SDCKE0
RMII_RXER
RMII_RXER
RMII_TXD0
RMII_TXD0
RMII_TX_EN
RMII_TX_EN
RMII_RXD0
RMII_RXD0
RMII_REF_CLK
RMII_REF_CLK
RMII_CRS_DV
RMII_CRS_DV
RMII_MDC
RMII_MDC
RMII_MDIO
RMII_MDIO
RMII_TXD1
RMII_TXD1
RMII_RXD1
RMII_RXD1
OTG_FS_PowerSwitchOn
OTG_FS_PowerSwitchOn
OTG_FS_OverCurrent
OTG_FS_OverCurrent
OTG_FS_N
OTG_FS_N
OTG_FS_P
OTG_FS_P
OTG_FS_ID
OTG_FS_ID
OTG_FS_VBUS
OTG_FS_VBUS
OTG_HS_OverCurrent
OTG_HS_OverCurrent
ULPI_DIR
ULPI_DIR
ULPI_STP
ULPI_STP
ULPI_NXT
ULPI_NXT
ULPI_CK
ULPI_CK
ULPI_D[0..7]
ULPI_D[0..7]
Matched Net Lengths [Tolerance = 100mil]
NRST
ULPI_D[0..7]
USB HS
i
ULPI_CK
USB HS
i
ULPI_DIR
USB HS
i
ULPI_NXT
USB HS
i
ULPI_STP
USB HS
i
OTG_HS_OverCurrent
OSC_24M
CLOCK
i
ARD_A[0..5]
ARD_A[0..5]
ARD_D[0..15]
Matched Net Lengths [Tolerance = 100mil]
OSC_25M
OSC_25M
RMII
QSPI_D3
QSPI_D3
RMII
QSPI_D2
QSPI_D2
RMII
QSPI_D1
QSPI_D1
RMII
QSPI_D0
QSPI_D0
RMII
QSPI_CLK
QSPI_CLK
RMII
QSPI_NCS
QSPI_NCS
RMII
AUDIO_SDA
AUDIO_SDA
RMII
AUDIO_SCL
AUDIO_SCL
RMII
SAI2_MCLKA
CLOCK
SAI2_SCKA
SAI2_SCKA
SAI2_FSA
SAI2_FSA
SAI2_SDA
SAI2_SDA
SAI2_SDB
Matched Net Lengths [Tolerance = 100mil]
SAI2_SDB
Audio_INT
Audio_INT
TP_PH15
TP_PH15
SPDIF_RX0
SPDIF_RX0
LCD
LCD
LCD
FMC_A[0..11]
LCD
FMC_D[0..15]
LCD
FMC_SDNWE
LCD
FMC_SDNRAS
FMC_SDNCAS
FMC_SDCLK
FMC_BA0
FMC_BA0
FMC_BA1
FMC_BA1
FMC_SDNE0
FMC_SDNE0
FMC_SDCKE0
FMC_NBL0
FMC_NBL0
FMC_NBL1
Matched Net Lengths [Tolerance = 100mil]
FMC_NBL1
B_USER
B_USER
EXT_SCL
EXT_SCL
QSPI
EXT_SDA
EXT_SDA
QSPI
EXT_RST
EXT_RST
QSPI
QSPI
QSPI
SWDIO
SWDIO
QSPI
SWCLK
SWCLK
NRST
NRST
SWO
Matched Net Lengths [Tolerance = 100mil]
SWO
VCP_RX
VCP_RX
VCP_TX
VCP_TX
SDRAM
SDRAM
uSD_CLK
uSD_CLK
SDRAM
uSD_CMD
uSD_CMD
SDRAM
uSD_D0
uSD_D0
SDRAM
uSD_D1
uSD_D1
SDRAM
uSD_D2
uSD_D2
uSD_D3
uSD_D3
uSD_Detect
uSD_Detect
SDRAM
SDRAM
U_USB_OTG_HS
Matched Net Lengths [Tolerance = 100mil]
USB_OTG_HS.SchDoc
NRST
ULPI_D[0..7]
ULPI_CK
ULPI_DIR
ULPI_NXT
ULPI_STP
OTG_HS_OverCurrent
OSC_24M
U_Ethernet
Ethernet.SchDoc
RMII_TXD0
i
RMII_TXD0
RMII_TX_EN
i
RMII_TX_EN
RMII_RXD0
i
RMII_RXD0
RMII_REF_CLK
i
RMII_REF_CLK
RMII_CRS_DV
i
RMII_CRS_DV
RMII_MDC
i
RMII_MDC
RMII_MDIO
i
RMII_MDIO
NRST
NRST
RMII_TXD1
i
RMII_TXD1
RMII_RXD1
i
RMII_RXD1
OSC_25M
i
OSC_25M
RMII_RXER
RMII_RXER
U_LCD-43
LCD-43.SchDoc
LCD_R[0..7]
i
LCD_R[0..7]
LCD_G[0..7]
i
LCD_G[0..7]
LCD_B[0..7]
i
LCD_B[0..7]
LCD_BL_CTRL
LCD_BL_CTRL
LCD_HSYNC
i
LCD_HSYNC
LCD_CLK
i
LCD_CLK
LCD_VSYNC
i
LCD_VSYNC
LCD_DISP
LCD_DISP
LCD_DE
LCD_DE
LCD_RST
LCD_RST
LCD_INT
LCD_INT
LCD_SDA
LCD_SDA
LCD_SCL
LCD_SCL
U_QSPI
QSPI.SchDoc
QSPI_NCS
i
QSPI_NCS
QSPI_CLK
i
QSPI_CLK
QSPI_D0
i
QSPI_D0
QSPI_D1
i
QSPI_D1
QSPI_D2
i
QSPI_D2
QSPI_D3
i
QSPI_D3
U_SDRAM
SDRAM.SchDoc
FMC_A[0..11]
i
FMC_A[0..11]
FMC_D[0..15]
i
FMC_D[0..15]
FMC_SDNWE
i
FMC_SDNWE
FMC_SDNRAS
i
FMC_SDNRAS
FMC_SDNCAS
i
FMC_SDNCAS
FMC_SDCLK
i
FMC_SDCLK
FMC_BA0
FMC_BA0
FMC_BA1
FMC_BA1
FMC_NBL0
FMC_NBL0
FMC_NBL1
FMC_NBL1
FMC_SDNE0
i
FMC_SDNE0
FMC_SDCKE0
i
FMC_SDCKE0
Camera-Connectors
Camera-Connectors.SchDoc
OSC_24M
CLOCK
i
OSC_24M
DCMI_NRST
DCMI_NRST
DCMI_D[0..7]
DCMII
i
DCMI_D[0..7]
DCMI_PWR_EN
DCMI_PWR_EN
DCMI_VSYNC
DCMII
i
DCMI_VSYNC
DCMI_HSYNC
DCMII
i
DCMI_HSYNC
DCMI_PIXCK
DCMII
i
DCMI_PIXCK
DCMI_SDA
DCMI_SDA
DCMI_SCL
DCMI_SCL
U_USB_OTG_FS
USB_OTG_FS.SchDoc
OTG_FS_PowerSwitchOn
OTG_FS_PowerSwitchOn
OTG_FS_OverCurrent
OTG_FS_OverCurrent
OTG_FS_N
OTG_FS_N
OTG_FS_P
OTG_FS_P
OTG_FS_ID
OTG_FS_ID
OTG_FS_VBUS
OTG_FS_VBUS
U_Arduino_ Connectors
Arduino_ Connectors.SchDoc
NRST
NRST
ARD_A[0..5]
ARD_A[0..5]
ARD_D[0..15]
ARD_D[0..15]
Title:
STM32F746 Discovery Interconnexion
Project:
STM32F746G-DISCO
Variant:
F746NGH6
Revision:
C 01
-
Size:
A4
Date:
17/07/2019
U_AUDIO
AUDIO.SchDoc
SAI2_SCKA
SAI2_SCKA
SAI2_FSA
SAI2_FSA
SAI2_SDA
SAI2_SDA
SAI2_SDB
SAI2_SDB
Audio_INT
Audio_INT
AUDIO_SDA
AUDIO_SDA
AUDIO_SCL
AUDIO_SCL
SAI2_MCLKA
SAI2_MCLKA
SPDIF_RX0
SPDIF_RX0
TP_PH15
TP_PH15
U_ST_LINK_V2-1
ST_LINK_V2-1.SCHDOC
VCP_RX
VCP_RX
VCP_TX
VCP_TX
SWCLK
SWCLK
SWDIO
SWDIO
SWO
SWO
NRST
NRST
U_Peripherals
Peripherals.SchDoc
NRST
NRST
EXT_RST
EXT_RST
EXT_SDA
EXT_SDA
EXT_SCL
EXT_SCL
uSD_CLK
uSD_CLK
uSD_CMD
uSD_CMD
uSD_D0
uSD_D0
uSD_D1
uSD_D1
uSD_D2
uSD_D2
uSD_D3
uSD_D3
uSD_Detect
uSD_Detect
B_USER
B_USER
Reference:
MB1191
Sheet:
2
of
14
