Rear Module Installation (Optional)
If you are installing the card into a slot with no rear module, you should have ordered and received a
Rear Module with your card. You will need to install it in the frame before you can connect cables.
Use the following steps to install the rear module in a frame:
This completes the procedure for installing the rear module in the frame.
Page 10
1.
On the rear of the frame, locate the card frame slot.
2.
As shown in Figure 2, seat the bottom of the rear module in the seating slot at the
base of the frame's back plane.

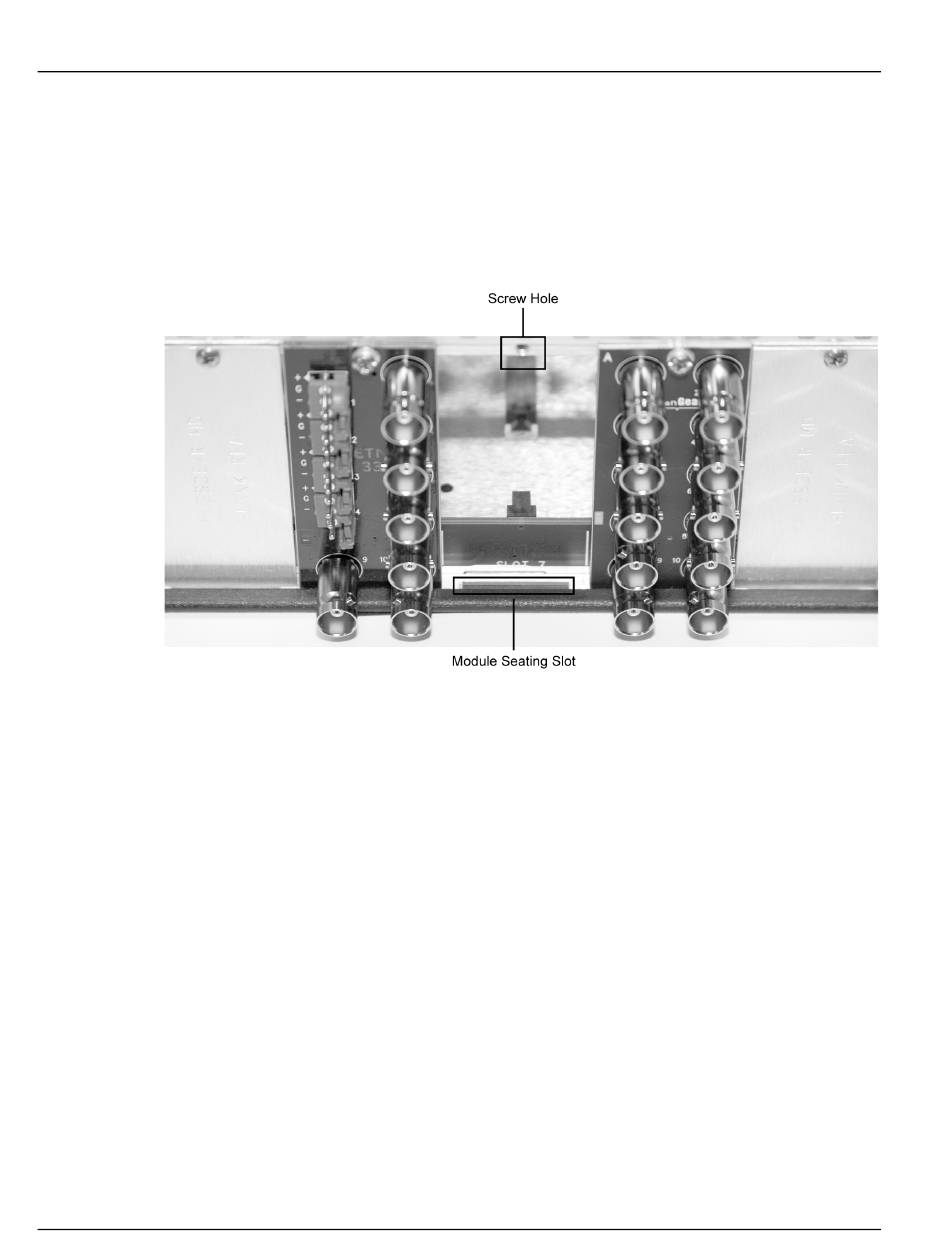

Figure 2. Rear Module Installation
3.
Align the top hole of the rear module with the screw hole on the top edge of the
frame back plane.
4.
Using a Phillips driver and the supplied screw, fasten the rear module panel to the
frame back plane. Do not over tighten.
9003 Owner's Manual • • • • (V 1.7)
