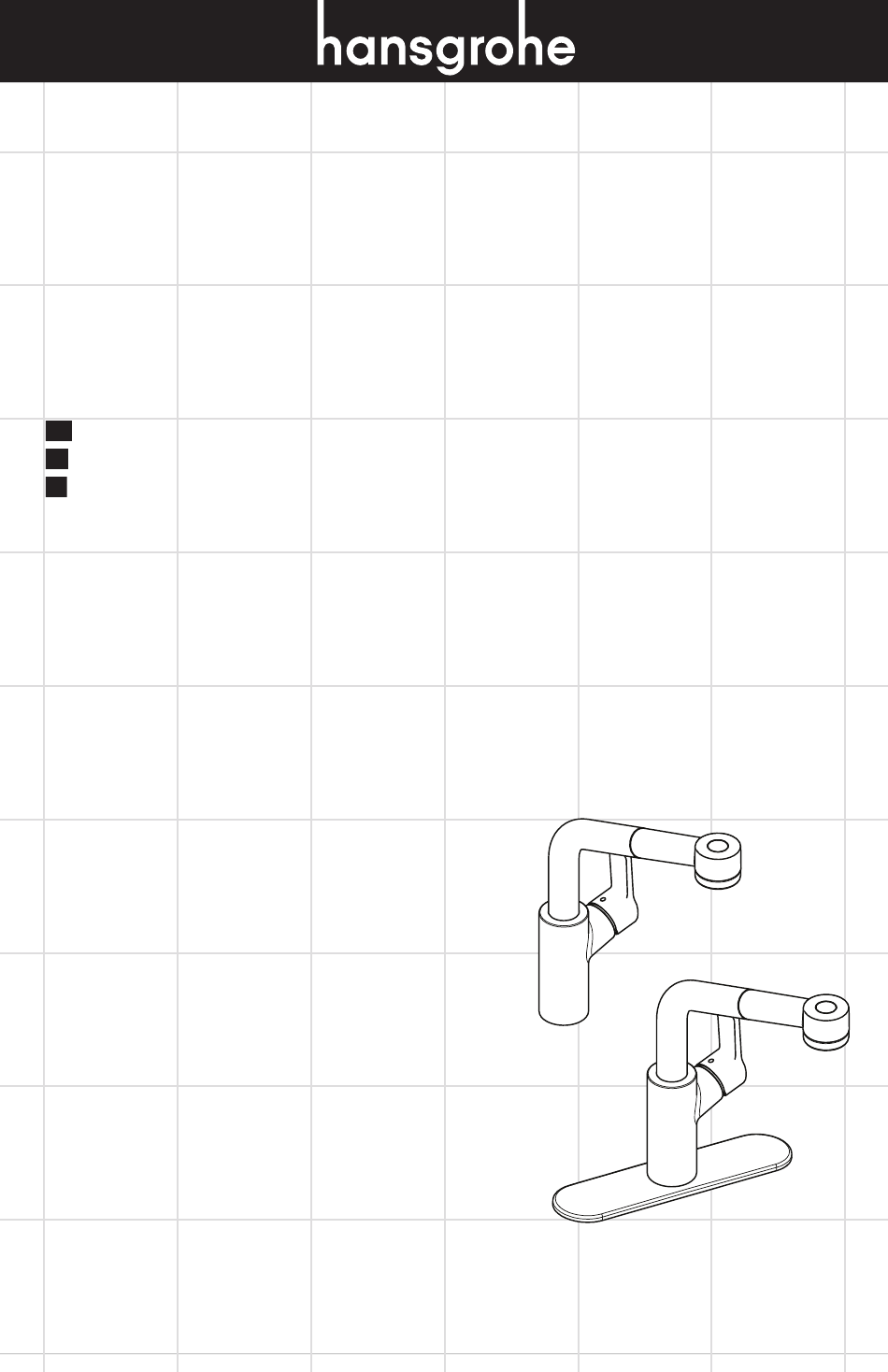

- Page 1 EN Installation / User Instructions / Warranty FR Instructions de montage / Mode d'emploi / Garantie ES Instrucciones de montaje / Manejo / Garantía Status 04281xx0...
- Page 2 English Français Technical Information Données techniques Water pressure Pression d’eau Recommended 15 - 75 PSI (0.1 - 0.5 MPa) recommandée 15 - 75 PSI (0.1 - 0.5 MPa) Maximum 145 PSI (1 MPa) maximum 145 PSI (1 MPa) Hot water temp. Température d'eau chaude Recommended 120°-140° F (48° - 60° C)* recommandée 120°-140° F (48° - 60° C)* Maximum 158°F (70° C)* maximum 158°F (70° C)* Max. flow rate 1.75 GPM (6.6 L/min) Capacité nominale 1.75 GPM (6.6 L/min) Hole size in mounting surface 1⅜" (35 mm) Dimension du trou dans 1⅜ po (35 mm) Max. depth of mounting surface 2⅜" (60 mm) la surface de montage Profondeur maximale de 2⅜ po (60 mm) la surface de montage * Please know and follow all applicable local plumbing codes when setting the temperature on the water heater.
- Page 3 Español Datos tecnicos Tools Required / Outiles Utiles / Herramientas Útiles Presión en servicio recomendada 15 - 75 PSI (0.1 - 0.5 MPa) max. 145 PSI (1 MPa) Temperatura del agua caliente recomendada 120°-140° F (48° - 60° C)* max. 158°F (70° C)* Caudal máximo 1.75 GPM (6.6 L/min) Tamaño del orificio en la superficie 1⅜" (35 mm) de montaje 9 mm Profundidad máxima de la 2⅜" (60 mm) 16 mm superficie de montaje 4 mm * Debe conocer y cumplir todos los códigos locales aplicables para ajustar la temperatura del calentador de agua.
- Page 4 Status 04281xx0 approx. 19⅝" (500 mm) 4⅞" (123 mm) 4" (101 mm) 3½" (89 mm) Ø 2"(52 mm) Ø1⁵⁄₁₆" (34 mm) 10½" (267 mm) 9" (229 mm) 1⅜" (35 mm) ⅜ 3⅛" 1" (25 mm) (80 mm)
- Page 5 Optional: Install the baseplate / En Option : Installez l'embasse / Opcional: Instale la placa de base English Français Español Position the baseplate and Placez l’embase et le joint sur la Ubique la placa de base y la gasket over the holes in the surface de montage. junta sobre los orificios de la mounting surface. superficie de montaje. La plaque de base sera main- The baseplate will be held in tenue en place par le robinet. La placa de base quedará su- place by the faucet. jeta en su posición por el grifo.
-
Page 6: Installation / Installation / Instalación
Installation / Installation / Instalación 2.2 ft-lb 3 Nm English Français Español Place the faucet and sealing ring Placez l'anneau d'étanchéite Coloque el oro de sellado y on the mounting surface. et le robinet sur la surface de el grifo sobre la superficie de montage. montaje. Install the mounting plate, fric- tion washer, metal washer, and Installez la plaque de montage, Instale la placa de montaje, la mounting nut. la rondelle en fibre, la rondelle arandela de fibra, la arandela de friction, et l'écrou de montage. - Page 7 CLICK! English Français Español Connect the hot and cold supply Connectez les tuyaux d'arrivée Conecte las mangueras de sumi- hoses to the stops. d'eau chaude et d'eau froide nistro de agua caliente y fría a aux tuyau d'alimentation. las alimentaciones de la red. Use two wrenches. Servez-vous de deux Use dos llaves, como se Do not allow the sup- clés, tel qu'illustre illustra en el diagrama. ply hoses to twist. dans le schema. Serrez fermement a l'aide des No permita que nin- clés.
- Page 8 CLICK! English Français Español Install the hose weight on the Installez le contrepoids sur le Instale el contrapeso. handspray side of the hose, near tuyau. the loop. Tire del rociador de mano. Debe Tirez sur la douchette. Elle moverse con facilidad y retraerse Test the handspray hose. If it devrait coulisser facilement et se suavemente. Reposicione el con- does not retract smoothly, reposi- rétracter sans à-coups. Modifiez trapeso según sea necesario. tion the weight. la position du contrepoids au besoin. Remove the protective cap from Retirez le capuchon de protec- Retire la tapa protectora de...
- Page 9 > 2 min. English Français Español Remove the hose filter. Retirez le filtre. Retire el filtro. Flush the faucet for at least two Rincez le robinet pour un mini- Enjuague el grifo durante un minutes. mum de deux minutes. mínimo de dos minutos. Reinstall the hose filter. Installez le filtre. Instale el filtro.
- Page 10 0.74 ft-lb 1 Nm English Français Español Install the sprayhead. Installez la douchette. Instale la ducha.
- Page 11 Set the High Temperature Limit Stop (optional) / Réglage de la butée limite d’eau chaude (en option) / Ajuste el tope de límite de alta temperatura (opcional) 140°F 50°F 44 PSI 4 mm 4 mm 17 X 4 mm 3.6 ft-lb 5 Nm 4 mm...
- Page 12 Replacement Parts / Pièces détachées / Repuestos Status 95919xx0 04281xx0 96338000 97735000 95140000 93218000 95008000 96468xx0 97209000 92730000 96316001 95561000 97523000 95049000 88624000 xx = Colors / Couleurs / Acabados 00 = Chrome 80 = Steel Optik...
- Page 13 User Instructions / Instructions de service / Manejo ouvert fermé abierto cerrar cold froid chaud frío caliente...
- Page 14 Cleaning / Nettoyage / Limpieza...
- Page 15 0.74 ft-lb 1 Nm...
- Page 16 Cleaning Recommendation for Hansgrohe Products Modern bathroom faucets, kitchen faucets and shower products are made from different materials to comply with the needs of the market with regard to design and functionality. To avoid damage to the product, it is necessary to take proper care of it. For best results: • Prevent the buildup of mineral scale and /or soap residue by cleaning your Hansgrohe product(s) when needed. • Select a cleaning agent specifically intended for the type of product. • Do not use these types of cleaners as they will cause damage to your Hansgrohe product: ´ Any cleaning agent containing hydrochloric acid, formic acid, lye, or acetic acid. ´ Abrasive cleaning powders, pads, or brushes. ´ Steam cleaners. ´ “No rinse” cleaning agents. • Always follow the instructions provided by the manufacturer of the cleaning agent. • mix cleaning agents, unless directed by the manufacturer. • Do not spray cleaners directly onto the product as drops could enter openings and gaps and cause damage. When using spray cleaners, spray the cleaner onto a soft cloth or sponge. • Always rinse your Hansgrohe product thoroughly with clear water and polish dry with a soft cloth after cleaning. Important • Residue from soaps and shampoos can cause damage. Rinse the product with clean water after each use.
-
Page 17: Para Obtener Mejores Resultados
Important • Les residus de produits pour le corps comme les savons liquides, shampooings, gels de douche, teintures pour cheveux, parfums, apres-rasage et vernis a ongles peuvent causer des deteriorations. Rincez le produit avec de l’eau propre après chaque utilisation. • Le résidu provenant des nettoyants pour cuvette/baignoire/carrelage peut endommager les robinets et les raccords de tuyauterie. Rincez immédiatement toute surpulvérisation sur le produit Hansgrohe. • De meme, il est interdit de stocker des detergents ou des produits chimiques sous les produits, par ex. dans un meuble sous lavabo, car les vapeurs qui s’en degagent risquent d’abimer les produits. • Les dommages au produit causés par un mauvais entretien ou par l’utilisation de produits de nettoyage inadéquats ne sont pas couverts par la garantie. • Si un composant du produit est endommagé, remplacez-le, car il existe un risque de blessure. -
Page 20: Limited Consumer Warranty
Limited Consumer Warranty This warranty is limited to products manufactured by Hansgrohe, conditions in the home such as excessive water pressure Inc. (“Hansgrohe”) that are purchased by a consumer in the United or corrosion. States or Canada after March 1, 1996, and installed in either the C. Labor and other expenses for disconnection, deinstallation, United States or in Canada. or return of the product for warranty service (including but not limited to proper packaging and shipping costs), or for WHO IS COVERED BY THE WARRANTY installation or reinstallation of the product. D. Accessories, connected materials and products, or related This limited warranty extends to the original purchaser only. This products not manufactured by Hansgrohe. warranty is non-transferable. Hansgrohe neither assumes nor Any Hansgrohe or Axor product sold for display purposes. authorizes any person to create for it any other obligation or liability HANSGROHE SHALL NOT BE LIABLE TO PURCHASER OR in connection with this product.
