46226.312FM
Telecamera Dome IP a colori Day & Night, sensore CMOS 1/2,5", risoluzione 8 Mpx
(3804x2160), obiettivo varifocale motorizzato 3,3-12 mm, filtro IR meccanico, H.265 e H.264
Multistream, alimentazione PoE o 12 Vdc, slot SD CARD, IR 20- 30 m, CVBS, Audio IN/OUT,
funzioni WDR, HLC, BLC, ROI, 3DNR, Mask, Motion, DC-Iris, Smart IR, RTSP, protocollo
ONVIF, grado di protezione IP66 e IK10. Dimensioni: Ø 150x114 mm. Peso 1260 g

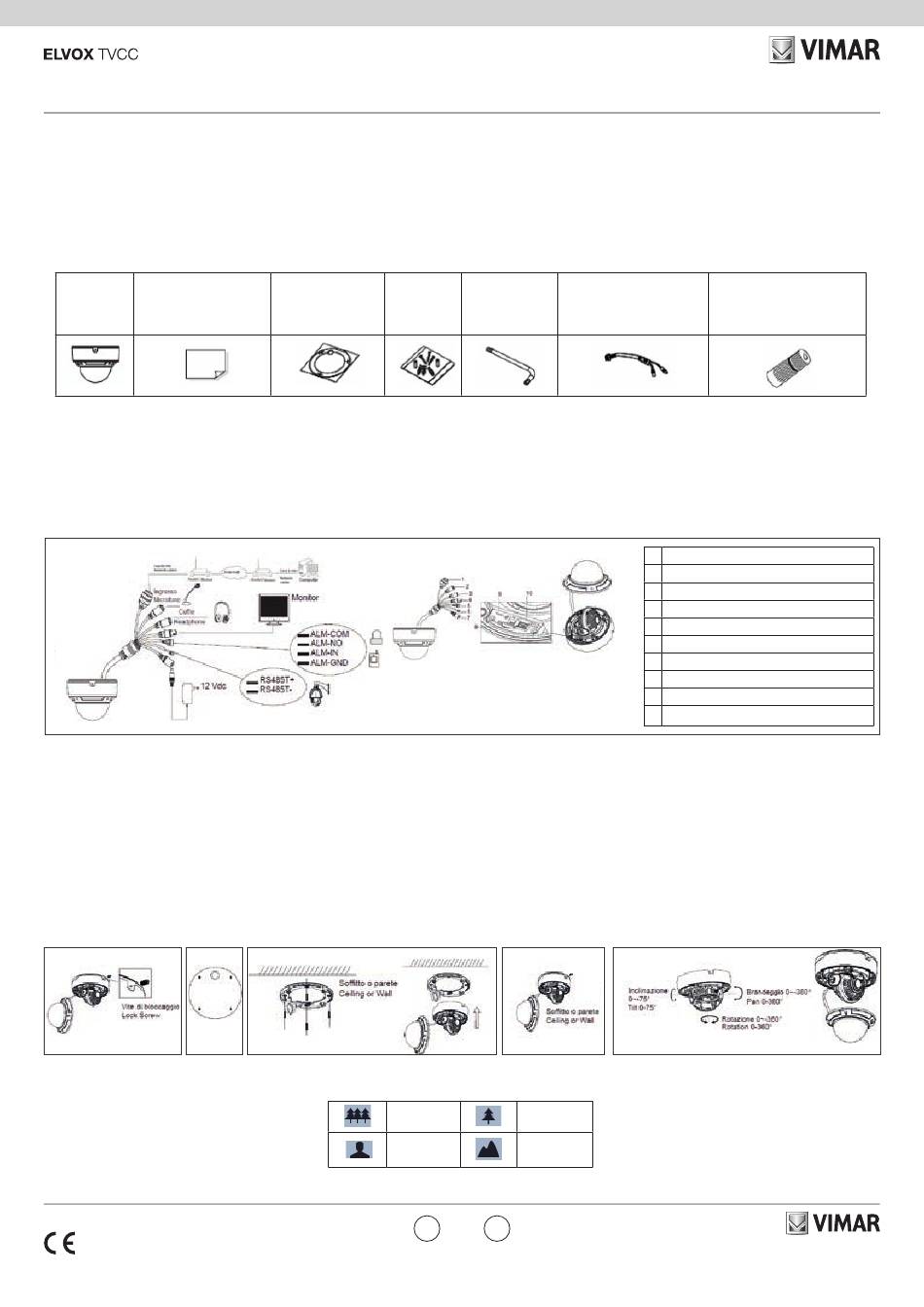

Contenuto della confezione
Una volta ricevuto il dispositivo, controllare gli accessori indicati di seguito.Le illu-
strazioni sotto riportate hanno solo funzione di riferimento. Far riferimento all'appa-
recchiatura in dotazione.
Telecamera
Istruzioni per l'uso
Camera
Quick and start guide
Introduzione
Questa telecamera IP (abbreviato in IP-CAM) è stata progettata per fornire soluzioni
TVCC ad elevate prestazioni. Adotta chip di elaborazione video allo stato dell'arte.
Utilizza le tecnologie più avanzate, di codifica e decodifica video ed è conforme al
protocollo TCP/IP, SoC.(System on chip) ecc. per assicurare la stabilità e l'affidabilità
del sistema. I manuali completi e i software CVM.exe, Iptool.exe e Diskcalculator.exe
sono disponibili nella scheda prodotto consultabile nel sito www.vimar.com
Connessioni
Di seguito sono riportate le principali connessioni della telecamera
Installazione
Prima di iniziare, assicurarsi che la parete o il soffitto siano sufficientemente solidi
per sopportare tre volte il peso della telecamera. Installare e utilizzare la telecamera
in ambiente asciutto. Si consiglia di riposizionare il copri obiettivo entro 4 ore dalla
sua rimozione. La procedura di montaggio è la seguente:
1) Allentare le viti per aprire la cupola inferiore, quindi allentare la vite di bloccag-
gio per rimuovere la base di montaggio.
2) Posizionare la dima per la foratura dove si intende fissare la telecamera, quindi
praticare i 4 fori per le viti e il foro per i cavi (nel caso si intenda far passare i
cavi attraverso la base di montaggio) in base alla dima.
3) Passare i cavi e collegarli. Quindi fissare la base di montaggio al soffitto o pare-
te con le viti.
4) Fissare la telecamera alla base di montaggio con la vite di bloccaggio.
5) Regolazione dei tre assi. Prima della regolazione, visualizzare l'immagine della
telecamera su un monitor e quindi effettuarne la regolazione secondo le figure
seguenti per ottenere l'angolo migliore.
1
2
6) Regolazione della messa a fuoco e dello zoom.
Questo modello di telecamera, è dotato di lente motorizzata. Utilizzare i controlli
dell'interfaccia web per modificare le impostazioni di Fuoco e Zoom.
7) Fissare la cupola inferiore sulla telecamera con le viti e rimuovere
delicatamente la pellicola di protezione per completare l'installazione.
49401245A0 00 1711
Viti
Dima di foratura
Screws &
Drill template
spiles
3
Zoom -
Focus -
IT
IP Dome Day&Night colour camera, CMOS 1/2,5" sensor, 8 Mpx (3804x2160) resolution,
3,3-12 mm motorized varifocal lens, mechanic IR filter, H.265 and H.264 Multistream, PoE
or 12 Vdc supply, slot SD CARD, IR 20- 30 m, CVBS, Audio IN/OUT, WDR, HLC, BLC, ROI,
3DNR, Mask, Motion, DC-Iris, Smart IR, RTSP functions, ON/VIF protocol, IP66 and IK10
protection degree. Dimensions: Ø 150x114 mm. Weight 1260 g

Package content

After you receive your device, please check the following accessories.
The pictures here are for reference only.
Cavo di connessione
Cacciavite
CVBS e DC IN
Screw-driver
CVBS & DC
in cables

Introduction

This IP-camera (short for IP-CAM) is designed for high performance CCTV solu-
tions. It adopts state of the art video processing chips. It utilizes most advanced
technologies, such as video encoding and decoding technology, complies with the
TCP/IP protocol, SoC (System on chip), etc to ensure this system more stable and
reliable. Complete manuals and CVM.exe, Iptool.exe e Diskcalculator.exe software are
available to download in the Product info sheet section of www.vimar.com website.

Connections

Here below the main connections of the camera
1
2
3
4
5
6
7
8
9
10

Installation

Before start, please make sure that the wall or ceiling is strong enough to withstand
3 times the weight of the camera. Please install and use the camera in the dry en-
vironment. You'd better install back the lens cover less than 4 hours after removing
it. The mounting steps are as follows:
1) Unscrewed the lock screw to open the lower cup and remove the base;
2) Position the drill template to fix the camera and drill the 4 holes for screws and
cables (in case it is necessary to pass the cable through the mounting base)
3) Connect the cables and fix with the screws the mounting base to the ceiling or
wall
4) Fix the camera with thelock screw to the mounting base
5) Adjustment of 3 axis. Before the adjustment, display the image to a monitor and
then adjust the camera according to the diagram below in order to achieve the
expected angle.
4
5
6) Adjustment the focusing and zoom. This type of camera is supplied of motorized
lens, it is necessary to connect to the web interface for setting the zoom and
focusing.
Zoom +
Focus +
7) Screw the lower cup of the camera and remove softly the protection film to
complete the installation procedure.
EN
Cappuccio impermeabile
Water-proof Cap
Cavo di rete / Network Cable
Cavo alimentazione / Power Cable
Cavo cuffie / Headphone Cable
Uscita video / Video output
Ingresso-uscita allarme / Alarm input-output
Cavo RS485 / RS485 cable
Cavo alimentazione / Power cable
Slot per cheda TF / TF Card slot
Foro per il reset / Reset Hole
Porta CVBS/DC IN per test
CVBS/DC IN port for testing
Viale Vicenza, 14
36063 Marostica VI - Italy
www.vimar.com
