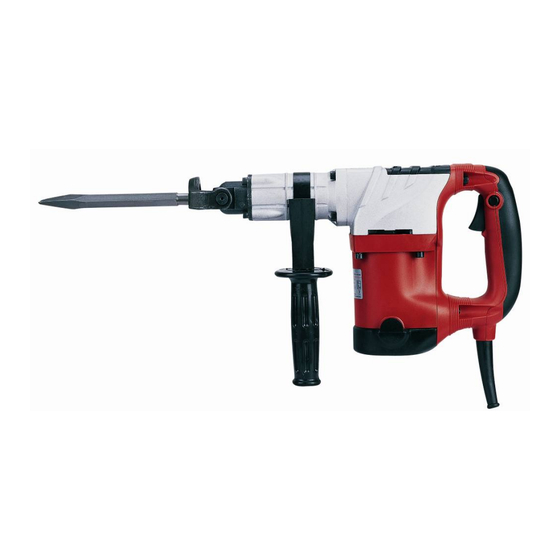

Demolition Hammer
Model: XP-45HD
HANDLING INSTRUCTIONS
Before using this XINPU demolition hammer, please carefully read
though these HANDLING INSTRUCTIONS. Ensure that you know how the machine works, and
how it should be operated. Maintain the machine in accordance with the instructions, and make
certain that the machine work correctly, please store this instriation and other enclosed documents
with the machine together.
Bj:2013
Zhejiang Xinpu Industrial & Commercial Co., Ltd.
106, No. 330 National Road, Huajie Industrial Zone, Yongkang City, Zhejiang 321300, P. R. China

Advertisement

loading
Need help?

Need help?

Do you have a question about the XP-45HD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Xinpu XP-45HD

Summary of Contents for Xinpu XP-45HD

  • Page 1 Model: XP-45HD HANDLING INSTRUCTIONS Before using this XINPU demolition hammer, please carefully read though these HANDLING INSTRUCTIONS. Ensure that you know how the machine works, and how it should be operated. Maintain the machine in accordance with the instructions, and make certain that the machine work correctly, please store this instriation and other enclosed documents with the machine together.

  • Page 2: Table Of Contents

    Contents 1. Machine information 2. Safety instruction 3. Assembly 4. Operation 5. Maintenance 1. Machine information Technical specifications XP-45HD Machine Type Voltage AC 230V Frequency 50Hz Input power 1200W Impact rate...
  • Page 3 Optional accessories (sold separately） Notice: Optional accessories (sold separately) are recommended only for XINPU tool for specified purpose in manual, any other brand accessories or attachments used may present risk of injury. 1. Point chisel Hexagon size17*280 length (Unit: mm) 2.

  • Page 4: Safety Instruction

    2. Safety instructions In this operator's manual/or machine’s labels following symbols are used: Read the manual carefully Accordance with essential applicable safety of European directives Denote risk of personal injury, loss of life or damage to the tool in case of nonobservance of the instruction in this manual.
  • Page 5 General Power Tool Safety Warnings WARNING Read all safety warnings and all instructions Failure to follow all warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference The term “power tool” in the warnings refer to your mains operated (corded) power tool or battery operated (cordless) power tool.
  • Page 6 your finger on the switch or plugging in power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach.

  • Page 7: Assembly

    12、Any damage and abnormal happen, please stop to use immediately and disconnect it, ask authorized serve center to check and repair. 13. Parts replace: Only original XINPU's parts can be used to replace by authorized service center. 14. Right use accessories and parts: Don't use other parts and accessories which not mentioned in the manual otherwise may cause injuries! 15.

  • Page 8: Operation

    Mounting tool bits Warning: before do it, make sure unplug the machine! (1) Please properly press the lock block； (2) please insert the bit as picture showing； (3) put the bit into the bottom, then loose the lock block and turning the retainer as picture's opposize direction.

  • Page 9: Maintenance

    Note: Sometimes the power tool does not begin the striking the stroke even the motor keep running, because oil inside become thick. If the power tool is used at a low temperature, or it is used after a long idle time, this demolition hammer should be kept running for above 5 minutes to warm up. 5.
  • Page 10 out, at that time, replace a new couple of them as following procedure: 5.2 Use "+" screw drive to loose the bush holder then use "-" screw drive to loosethe cap, now you can take out of the worn carbon brush, change another pair of specified carbon brush.
  • Page 11 CE Declaration of conformity Zhejiang Xinpu Industrial & Commercial Co., Ltd. We herewith declare, No.106, 330 National Highway, Huajie Industrial Zone, Yongkang, Zhejiang 321300, China That the following machine complies with the appropriate basic safety and health requirements of the EC Directive based on its design and type, as brought into circulation by us.
