- Page 1 Kit Instructions C600 Coupon Printer Arm 7709-K509 Issue A...
- Page 2 NCR, therefore, reserves the right to change specifications without prior notice. All features, functions, and operations described herein may not be marketed by NCR in all parts of the world. In some instances, photographs are of equipment prototypes. Software screen images are representative, and in some cases, may not match a customer’s installed software exactly.
- Page 3 Revision Record Issue Date Remarks Jun 2019 First Issue...

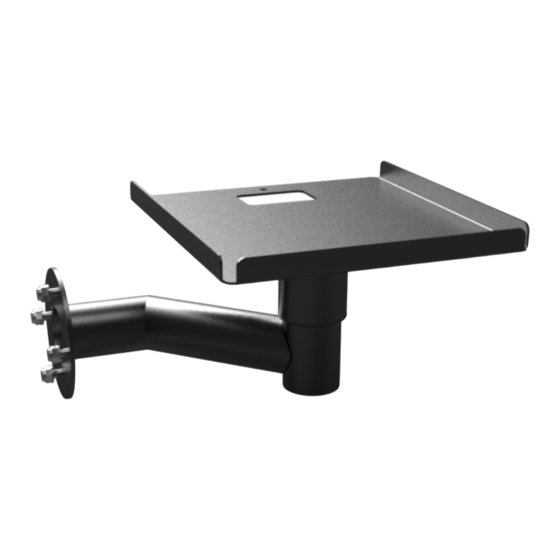

- Page 5 C600 Coupon Printer Arm This publication provides procedures for installing the C600 Coupon Printer Arm on an NCR SelfServ™ 90 (7709) Kiosk. Kit Contents Part Number Description 497-0525214 7709–K509 C600 Coupon Printer Arm 497-0525218 Pad Mount, Printer, Catalina C600, 7709...
- Page 6 C600 Coupon Printer Arm Installation Procedure Warning: Disconnect the AC power cord before disassembling the Terminal. 1. Open the front of the kiosk. 2. Remove PIN pad arm blank plate. a. Unstrap the cinch straps (2) that secure the power supply to the bracket. Remove...
- Page 7 C600 Coupon Printer Arm b. Remove the screws (2) that secure the power supply bracket. Remove the bracket. c. Remove the screws (2) that secure the blank plate. Remove the blank plate.
- Page 8 6. Connect the power cable and ethernet cable to the Catalina Coupon Printer. 7. Connect the Ethernet cable to the LAN. Note: Ensure that the Ethernet Cable from the Catalina Coupon Printer is directly connected to the Store network. Do not connect to the NCR 7709 LAN.
