TMG -SBC60 Product Manual

60” heavy-duty skid steer brush cutter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

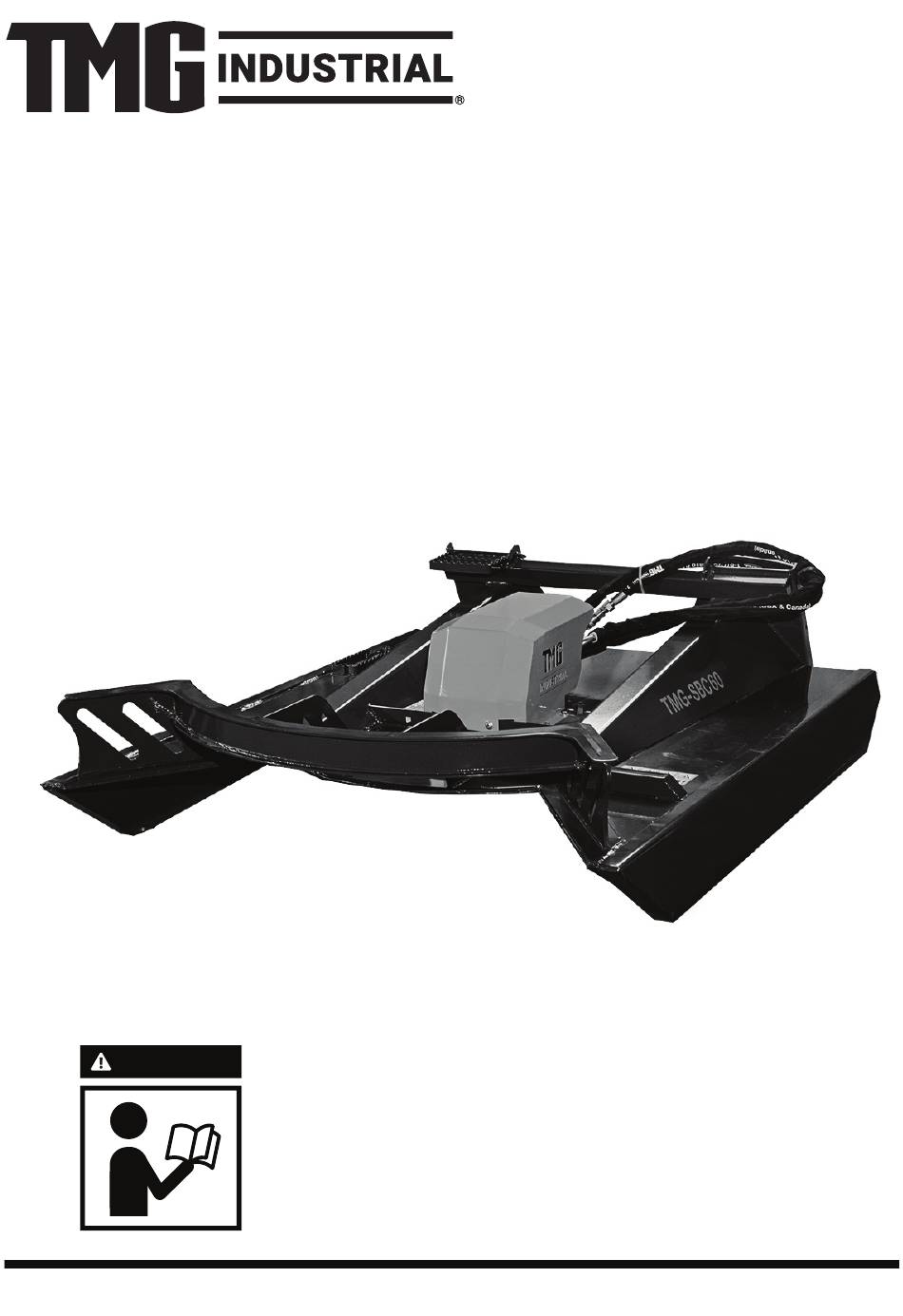

60" HEAVY-DUTY SKID STEER
WARNING
www.tmgindustrial.com
BRUSH CUTTER
• Please read and understand the product manual completely before assembly
• Check against the parts list to make sure all parts are received
• Wear proper safety goggles or other protective gears while in assembly
• Do not return the product to dealer. They are not equipped to handle your requests.
Missing parts or have questions on assembly?
Please call: 1-877-761-2819 or email: cs@tmgindustrial.com
TMG-SBC60
PRODUCT MANUAL
v.2022.10.14
TOLL FREE: 1-877-761-2819

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TMG-SBC60 and is the answer not in the manual?

Questions and answers

Related Manuals for TMG TMG-SBC60

Summary of Contents for TMG TMG-SBC60

  • Page 1 TMG-SBC60 PRODUCT MANUAL v.2022.10.14 60” HEAVY-DUTY SKID STEER BRUSH CUTTER WARNING • Please read and understand the product manual completely before assembly • Check against the parts list to make sure all parts are received • Wear proper safety goggles or other protective gears while in assembly •...

  • Page 2: Safety Information

    I N F O R M A T I O N Your Safety YOU are responsible for the SAFE operation and maintenance of your TMG Skid Steer Brush Cutter. YOU must ensure that you and anyone else who is going to use, maintain or work around the Skid Steer Brush Cutter be familiar with the using and maintenance procedures and related SAFETY information contained in this manual.

  • Page 3: General Safety

    I M P O R T A N T S A F E T Y I N F O R M A T I O N General Safety 1. Read and understand the Operator’s Manual and all safety signs before using, maintaining, adjusting or cleaning the Skid Steer Brush Cutter.

  • Page 4: Safety Training

    I M P O R T A N T S A F E T Y I N F O R M A T I O N 6. This equipment is dangerous to children and persons unfamiliar with its operation. The operator should be a responsible, properly trained and physically able person familiar with machinery and trained in this equipment's operations.
  • Page 5 I M P O R T A N S A F E T Y I N F O R M A T I O N 6. Train all new personnel and review instructions frequently with existing workers. Be certain only a properly trained and physically able person will use the machinery.

  • Page 6: Maintenance Safety

    I M P O R T A N S A F E T Y I N F O R M A T I O N Maintenance Safety 1. Good maintenance is your responsibility. Poor maintenance is an invitation to trouble. 2.

  • Page 7: Hydraulic Safety

    I M P O R T A N T S A F E T Y I N F O R M A T I O N Hydraulic Safety 1. Make sure that all the components in the hydraulic system are kept in good condition and are clean. 2.

  • Page 8: Transport Safety

    I M P O R T A N T S A F E T Y I N F O R M A T I O N Transport Safety 1. Comply with state and local laws governing safety and transporting of machinery on public roads. 2.

  • Page 9: Operation

    O P E R A T I O N Bolt Torque CHECKING BOLT TORQUE The tables shown below give correct torque values for various bolts and cap screws. Tighten all bolts to the torques specified in chart unless otherwise noted. Check tightness of bolts periodically, using bolt torque chart as a guide.

  • Page 10: Specifications And Capacities

    S P E C I F I C A T I O N Specifications & Capacities • Universal skid steer mount • Maximum cutting capacity: 2" • Max hydraulic pressure: 2900 psi • Hydraulic flow rate: 15-25GPM • Total width: 62" •...
  • Page 11 P A R T S L I S T SBC60 Brush Cutter Assembly WWW.TMGINDUSTRIAL.COM 10 / 12 Toll Free:1-887-761-2819...
  • Page 12 P A R T S L I S T Part No. Ref. Part Description GB/T 5783 Bolt M8*20 JSSL60.12TMG Protective cover Weldment GB/T 93 Spring Washer 8 GB/T 97.1 Washer 8 SBC60.5 Hydraulic components ASME B 18.3 Hex Bolt 1/2-13*1-3/4 GB/T 93 Washer 12 GB/T 889.1...
  • Page 13 P A R T S L I S T SBC60 Hydraulic components Part No. Ref. Part Description BMS-160-F6-F-D-B Motor MD/YLF-133/35 Overflow valve block W-05-GE18L1/2NPT End Straight Joint NPT1/2"-M27*1.5 W-05-KIS-PT-N04PF Flat Faced Couplers NPT1/2 Male GB/T 97.1 Washer 10 GB/T 93 Washer 10 GB/T 5783 Bolt M12*50...
