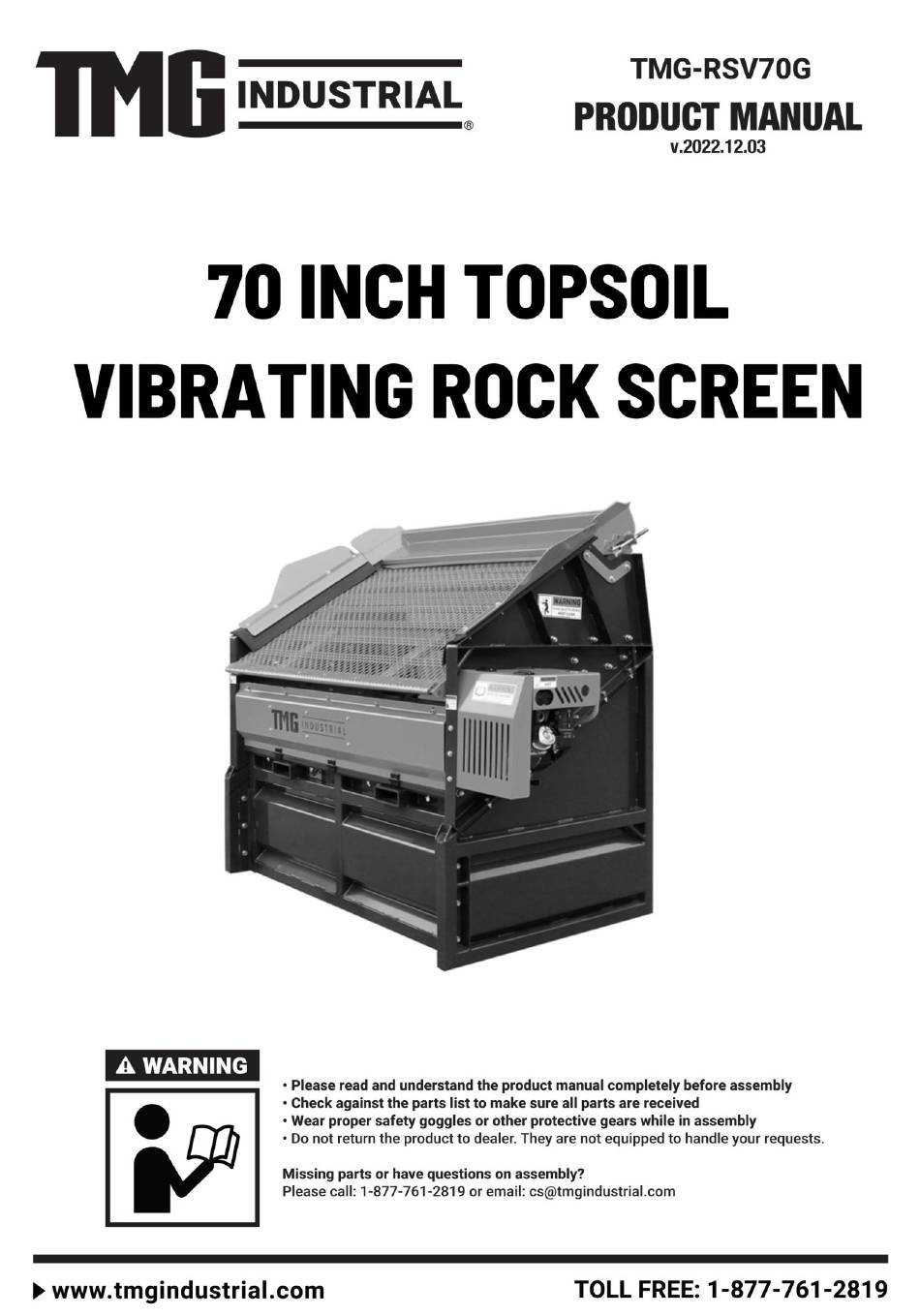

- Page 1 0 / 20 TOLL FREE: 1-877-761-2819 ►www.tmgindustrial.com...
-
Page 2: Table Of Contents
CONTENTS 1. PREFACE..............................3 2. SAFETY ALERTS ............................3 3. DRIVING QUALIFICATION ......................... 3 4. SAFETY PRECAUTIONS ..........................3 4.1 General precautions ........................3 4.2 Preparations for safety operation ..................... 4 4.3 Attentions before starting up engine ....................4 4.4 Attentions after starting up engine ....................4 4.5 Attentions during working ....................... - Page 3 7 REGULAR MAINTENANCE .......................... 8 7.1 Maintenance and repairs every 10 hours ..................8 7.2 Maintenance and repairs every 50 hours ..................9 7.3 Maintenance and repairs every 100 hours ..................9 7.4 Maintenance and repairs every 300 hours ..................10 7.5 Maintenance and repairs every 500 hours ..................
-
Page 4: Preface
1. PREFACE Thank you very much that you have purchased the products. This operation manual will tell you how to correctly operate and maintain your machine. Before using the machine, please read the operation manual thoroughly to guarantee the correct operation. Following the operation requirements in the operation manual will make that your machine is in the best operation state so as to extend the life of the set. -
Page 5: Preparations For Safety Operation
Pay attention to fireproof. Fuel and oil catch fire easily, do not smoking and using match and lighter. The engine should be turned off the engine before filling fuel and far from open fire. 4.2 PREPARATIONS FOR SAFETY OPERATION Cleaning the machine. -
Page 6: Set-Up For First Use
Engine oil and oil in reduction system will be hot after the machine has run for a few minutes, don’t do the repair until the machine become cool. Disposal of the waste oil. Discharge the oil into a suitable container instead of draining the waste oil to the river and sewer. Attention to ... -
Page 7: Operation
Grease the bearings（6）. Machine was pre greased at factory, just to do a check. Check and tension the mesh by tightening the bolts（7）. Trial running. Number Name Main body Lower side panel-Left Lower side panel-Front Lower side panel-Right Engine Grease nipple Mesh tension bolt... -
Page 8: Start Up The Engine
6.2 START UP THE ENGINE 1) Turn fuel shut-off valve to the “ON” position (if equipped). 2) Start engine as follows: Cold engine: Place throttle control midway between SLOW and FAST position. Place choke control into ON position. Warm engine: Place throttle control midway between SLOW and FAST position. Return choke to OFF position as soon as engine starts. -
Page 9: Machine Movement
5) If long-term storage is needed , please start the machine regularly to prevent corrosion. Start the machine at least one time per month to prevent the oil layer deteriorates, and charge at the same time. 6.6 MACHINE MOVEMENT Using a forklift, adjust the width of folk arm to fit the distance of holes in the front of the machine. 6.6 OPERATION UNDER THE LOW TEMPERATURE. -
Page 10: Maintenance And Repairs Every 50 Hours
7.2 MAINTENANCE AND REPAIRS EVERY 50 HOURS 1） Inject the grease to the bearings. 2）Change oil in 2 : 1 with Clutch Reduction System. 7.3 MAINTENANCE AND REPAIRS EVERY 100 HOURS 1）Change the engine oil. Open the oil plug and discharge the engine oil when the oil is still warm. Tighten the drain plug;... -
Page 11: Maintenance And Repairs Every 300 Hours
7.4 MAINTENANCE AND REPAIRS EVERY 300 HOURS 1）Replace air cleaner element. 2）Check the fuel filters and clean or replace if needed. 3）Check and adjust valve clearance when engine is cold. 7.5 MAINTENANCE AND REPAIRS EVERY 500 HOURS 1）Replace spark plug and set gap. 7.6 RECOMMENDED LUBRICANT 1）Engine oil in low temperature... -
Page 12: Main Technical Parameters
8. MAIN TECHNICAL PARAMETERS TECHNICAL SPECIFICATIONS Topsoil, Compost, Drainage Rock, Pea Gravel, Sand, Bark, Site Application Clearance, Groundworks KEY SPECIFICATIONS DATA Capacity 60 TPH Fuel Consumption 0.8 L/h Fuel Tank Capacity 2.6 Liters Length 1250 mm Width 2320 mm Height 1940 mm Number of Screen Deck Single... - Page 13 Engine Manufacturer KOHLER Model Command PRO CH255 with reduction system Number of Cylinders Single Power 5.5 HP (4kW) Starter Retractable Starter Displacement 177 cc Oil Capacity 0.6 L Cooling Air Cooling Weight 650 kgs Packing size 2230 mm x 1690 mm x 840 mm Shipping Weight 820 kgs 12 / 20...
-
Page 14: Part List
9. PART LIST PART OF MACHINE 13 / 20 TOLL FREE: 1-877-761-2819 ►www.tmgindustrial.com... -
Page 15: Part Of Screen Deck
PART OF SCREEN DECK 14 / 20 TOLL FREE: 1-877-761-2819 ►www.tmgindustrial.com... -
Page 16: Part Of Main Body
PART OF MAIN BODY 15 / 20 TOLL FREE: 1-877-761-2819 ►www.tmgindustrial.com... -
Page 17: Part Of Drive Box
PART OF DRIVE BOX 16 / 20 TOLL FREE: 1-877-761-2819 ►www.tmgindustrial.com... -
Page 18: Part List
PART LIST PART NAME Below panel left Below panel front Below panel right Upper panel left Upper panel front Pulley box cover Pulley box Upper panel right Engine guard cover Engine /Reduction CH255 Engine guard L plate Beam Screen deck 12-1 Mesh Deck 1700*1260... - Page 19 12-12 Rear spring Bolt/Nut/Washer M8*40 12-13 Rear spring clip plate 12-14 Mesh tensioner 12-15 Front spring Bolt/Nut/Washer M8*50 12-16 Bolt/Nut/Washer M12*45 Bolt/Nut/Washer M16*40 Bolt/Nut/Washer M10*20 Hinge CL218-1A Timing pulley 5M-60Z-N25 Shaft-end plate/bolt M8*15 Idle pulley SPZ190-2 Timing belt 5M-2060-20 V-Belt SPZ1663La Drive pulley SPZ63-2...
- Page 20 19 / 20 TOLL FREE: 1-877-761-2819 ►www.tmgindustrial.com...
