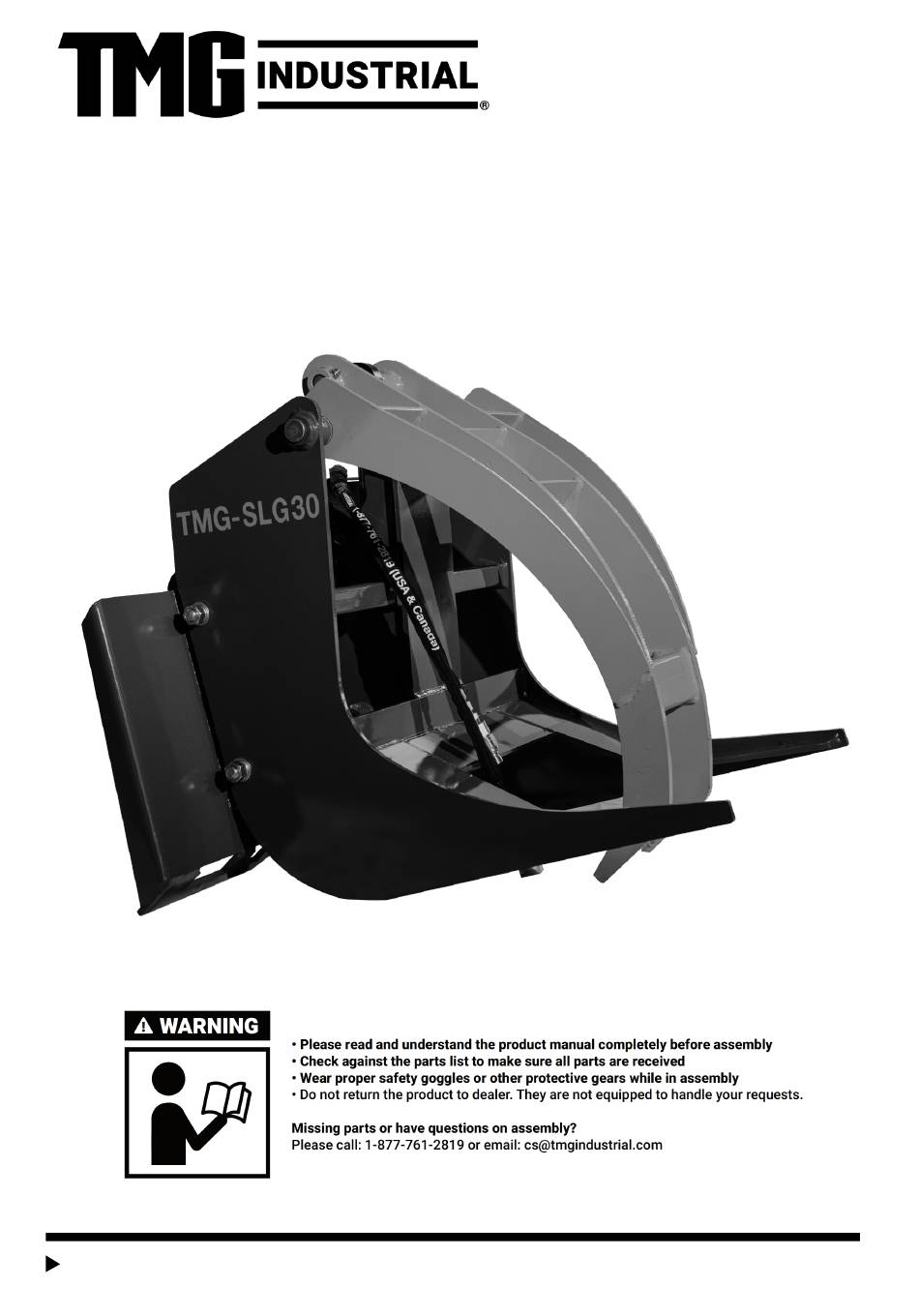

- Page 1 TMG-SLG30 PRODUCT MANUAL v.2023.02.23 30“ SKID STEER LOG GTAPPLE www.tmgindustrial.com TOLL FREE: 1-877-761-2819...
-
Page 2: Table Of Contents
CONTENTS IMPORTANT SAFETY INFORMATION ............................3 ..................................... 3 AFETY ..................................3 ENERAL AFETY ..............................4 QUIPMENT AFETY UIDELINES ..................................5 AFETY RAINING .................................... 5 AFETY IGNS ..................................6 AFETY ECALS ..................................... 6 REPARATION ................................7 AINTENANCE AFETY ..................................7 YDRAULIC AFETY ................................... -
Page 3: Important Safety Information
Your Safety YOU are responsible for the SAFE operation and maintenance of your TMG Skid Steer Log Grapple. YOU must ensure that you and anyone else who is going to use, maintain or work around the Skid Steer Log Grapple be familiar with the using and maintenance procedures and related SAFETY information contained in this manual. -
Page 4: Equipment Safety Guidelines
- Wet weather gear - Hearing Protection 6. Install and secure all guards before starting. 7. Wear suitable ear protection for prolonged exposure to excessive noise. 8. Turn machine off, stop and disable engine, remove ignition key and place in your pocket, set park brake and wait for all moving parts to stop before servicing, adjusting, repairing, or unplugging. -
Page 5: Safety Training
10. In addition to the design and configuration of this implement, including Safety Signs and Safety Equipment, hazard control and accident prevention are dependent upon the awareness, concern, prudence, and proper training of personnel involved in the operation, transport, maintenance, and storage of the machine. Refer also to Safety Messages and operation instruction in each of the appropriate sections of the skid steer and machine manuals. -
Page 6: Safety Decals
Safety Decals Preparation Never use the machine until you have read and completely understand this manual, the skid steer tractor Operator's Manual and each of the Safety Messages found on the safety signs on the skid steer tractor and machine. Personal protection equipment including hard hat, safety glasses, safety shoes, and gloves are recommended during assembly, installation, operation, adjustment, maintaining, repairing, removal, cleaning, or moving the unit. -
Page 7: Maintenance Safety
Use only in daylight or good artificial light. Be sure machine is properly mounted, adjusted and in good operating condition. Ensure that all safety shielding, and safety signs are properly installed and in good condition. Maintenance Safety Good maintenance is your responsibility. Poor maintenance is an invitation to trouble. Follow good shop practices. -
Page 8: Transport Safety
Wear proper hand and eye protection when searching for a high-pressure hydraulic leak. Use a piece of wood or cardboard as a backstop instead of hands to isolate and identify a leak. If injured by a concentrated high-pressure stream of hydraulic fluid, seek medical attention immediately. Serious infection or toxic reaction can develop from hydraulic fluid piercing the skin surface. -
Page 9: Operation
OPERATION Packing List The detailed packing list of TMG-SLG30 and accessory as the following table. Item Description Qty. Main body of the log grapple Skid steer mount plate (L) Skid steer mount plate (R) Assembly and Set-up Skid steer mount plate (R) -
Page 10: Hydraulic Connections & Mounting
Make sure there is enough room and clearance to safely drive up to the Skeleton. Drive up to The Skeleton while aligning the mounting components, and hook up into the mount. Secure the mounting: Drive into the mounting frame. Seat the top of the face plate into the frame of the Skeleton. Raise the loader and tilt the face plate until it is fully mated. - Page 11 Operate at a safe slow-paced speed that will allow you to watch the area ahead and behind the attachment & loader. Since about half of your duty cycle may be in reverse, look behind you and/or utilize your mirrors when backing up. Verify that your backup alarm is working properly to warn others when you are in reverse, but never think that the alarm replaces your responsibility to visually check what’s behind you.
-
Page 12: Maintenance
11. Be careful that a branch or root doesn’t “whip” back at the skid steer. Wear safety glasses to prevent dirt getting in your eyes. WARNING! Use extreme caution when working around low hanging electrical lines. Do not raise the attachment in an area where there are low electrical lines to prevent an accident that could result in Death or Serious Injury. -
Page 13: Hydraulic System
WARNING! Hazardous dust can be generated if painted surfaces are heated or welded and could result in death or Serious Injury. Remove paint before welding and always make repairs in a well-ventilated area and wear an approved respirator. CAUTION! Cutting edges can be very heavy and could cause Minor or Serious Injury if mishandled. Always wear protective gloves and footwear. -
Page 14: Specification
SPECIFICATION Specifications & Capacities Universal skid steer style hookup • • Greaseable pins and bushings Hoses and flat-faced couplers are included • • 3,000 PSI cylinder Overall Width:30” • Open Height:42” • Closing Height:6” • Tine Thickness: 0.625” • • Weight Capacity: 3,000 lb. -
Page 15: Parts List
PARTS LIST 30” Skid Steer Log Grapple Assembly Part No. Ref. Part Description SLG29.1 Skid steer mount plate (L) SLG29.2 Skid steer mount plate (R) SLG29.3 Frame Weldment SLG29.4 Grapple Arm SLG29.5 Hydraulic components SLG29.6 Pin 01：Ф25*302 SLG29.7 Pin 02：Ф25*228 GB/T 5783 Bolt M10*65 GB/T 6170... -
Page 16: Hydraulic Components
Hydraulic components Part No. Ref. Part Description GE08LR1/2ED Adaptor SLG29.5-1 Hydraulic hose 01:M14*1.5 Length:2200mm W-05-KIS-PT-N04SF FLAT FACED COUPLERS NPT1/2 FEMALE W-05-KIS-PT-N04PF FLAT FACED COUPLERS NPT1/2 MALE JB/T 978 Hinged bolts M14*1.5 JBT 982 Combined washer SLG29.5-2 Hydraulic hose 02:M14*1.5Length:2200mm SLG29.5-3 Cylinder Bore ：50mm；...
