Summary of Contents for TMG TMG-AB72

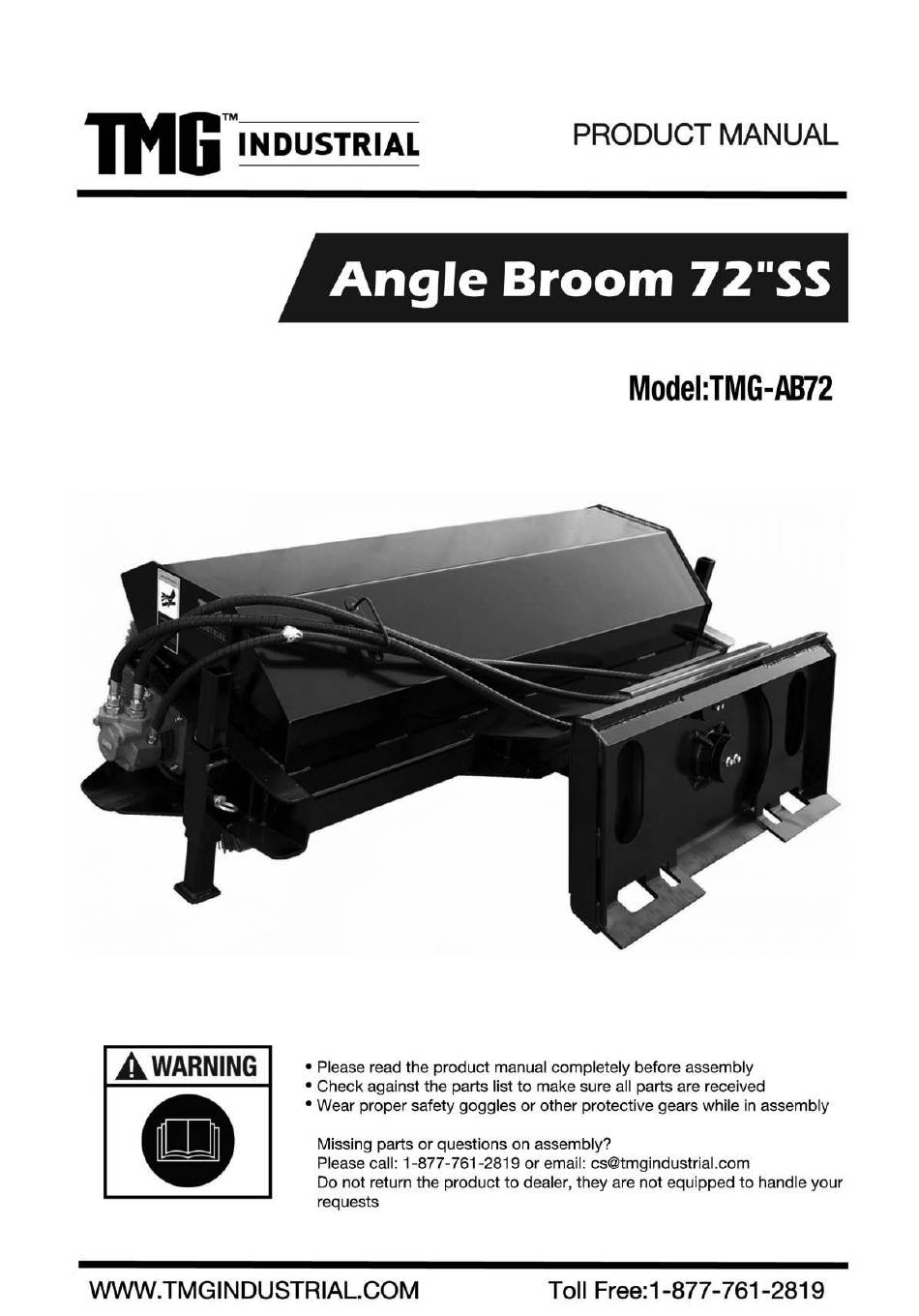

- Page 1 W W W . T M G I N D U S T R I A L . C O M P 2 4 / 2 5 T o l l F r e e : 1 - 8 7 7 - - 2 8 1 9 7 6 1...
-
Page 2: Table Of Contents
TABLE OF CONTENTS GENERAL COMMENTS..............2 SAFETY PRECAUTIONS ............... 3 SAFETY DECALS................5 MAIN SPECIFICATIONS..............6 SKID STEER REQUIREMENTS ............7 IDENTIFICATIONS OF MAIN COMPONENTS....... OPERATING INSTRUCTIONS ............10 Attaching Check before operation Angling of the broom Sweeping operation Disconnecting Transporting Storage MAINTENANCE ................ -
Page 3: General Comments
GENERAL COMMENTS Congratulations on the purchase of a new Angle broom. This product has been designed and built to clean and handle all types of material including fine dirt, gravel, mud, millings and other debris. You or any other people who will be assembling, operating, maintaining, or working with this product are required to read and completely understand the information and instructions contained in this manual. - Page 4 All bystanders should be kept a minimum of 10 feet (3 meters) away from working area of the attachment. PROTECT AGAINST FLYING DEBRIS: Always wear an OSHA approved hard hat and safety eye protection when operating or servicing this equipment. Do not wear loose fitting clothing, flopping cuffs, dangling neckties and scarves, or rings and wrist watches that can catch moving parts.
- Page 5 rating of at least 25% higher than highest pressures of the system. Avoid steep hillside operation which could cause the vehicle to overturn. Consult your vehicle operator’s and safety manuals for maximum incline allowable. Never perform any work on an attachment unless you are authorized and qualified to do so. Always read the operator service manual(s) before any repair is made.
-
Page 6: Safety Decals
SAFETY DECALS WARNING 1、 READ AND UNDERSTAND OPERATING INSTRUCTIONS AND SAFETY INFORMATION PRIOR TO OPERATING YOUR ATTACHMENT.。 PINCH POINT HAZARD 2、 FLYING OBJECTS HAZARD 3、 HIGH PRESSURE FLUID HAZARD 4、 W W W . T M G I N D U S T R I A L . C O M P 5 / 2 5 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9... -
Page 7: Main Specifications
MAIN SPECIFICATIONS ： SPECIFICATIONS Standard, angle broom 72" SS Model Number TMG-AB72 Working Width 1828 mm (72"). Overall Width 2200 mm Brush Diameter 26"(670mm) Overall Height 740 mm (29") Wafer Quantities, Combination Poly & Wire 2 Straight Poly Wafers 39 Convoluted Wafers... -
Page 8: Skid Steer Requirements
SKID STEER LOADER REQUIREMENTS The Angle broom is designed to attach to skid steers with the following minimum requirements: SAE Lift Capacity ....... . . 1200 lbs. Hitch Type . - Page 9 The angle broom was supplied with hoses. Proper hose end fittings and/or quick couplers must be purchased as the hose threads. Hose End Fittings:......One hose end must be metric M18X1.5. The fitting for the other end can be whatever you determine to be the most beneficial to making the connection to your skid steer. W W W .
-
Page 10: Identifications Of Main Components
IDENTIFICATIONS OF MAIN COMPONENTS Angle broom main frame Poly/Steel broom bristle wafer kit Rest support Shaft hub, non-motor bracket Hydraulic Hitch attach-plate hoses Hydraulic motor Connecting angled bars (attachment flange) Motor shield Articulation pin /Angle hole Pivot connecting plate W W W . T M G I N D U S T R I A L . C O M P 9 / 2 5 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9... -
Page 11: Operating Instructions
OPERATING INSTRUCTIONS: INSTALLATION INSTRUCTIONS The installation of your ATTACHMENT is the same for any other powered attachment for your skid steer loader: NOTE: 1. Remove any attachments from the front of the loader. 2. Following all standard safety practices and the instructions for installing an attachment in your skid-steer operator's manual, install the ATTACHMENT onto your skid-steer. - Page 12 * ATTACHING TO SKID STEER LOADER： LOCK SKID STEERS LOCK HANDLES. REFER MANUAL OF SKID STEER LOADER. MOUTING HITCH PLATE 1. Check for and remove any debris in the hitch point areas before attaching to Angle broom to skid steer loader. Read the skid steer operator's manual connecting and removing instructions.
- Page 13 5. Rotate top of skid steer loader tilt arms back until Angle broom makes full contact with face of hitch plate so the lock handles can be engaged. 6. Push lock handles on the skid steer loader hitch down. Make sure lock pins go through bottom slots in the Angle broom hitch and handles are fully locked down.
- Page 14 Hydraulic Hose Hook-up Connect hydraulic hoses to skid steer auxiliary quick couplers. 2 or 3 quick couplers should be connected according to the equipment on the skid steer loader. If only 2 couplers are equipped on the skid steer without the case drain line, then just remove the 3 one and plug the outlet port accordingly.
- Page 15 CONNECT QUICK COUPLERS REFER TO THE MANUAL OF SKID STEER LOADER Now the mechanism and hydraulic device have been properly connected to be ready for working. NOTE: The ATTACHMENT attaches to the toolbar/quick-attach mechanism of your skid-steer loader. Due to this arrangement, thorough knowledge of the skid-steer controls is necessary for machine operation.
-
Page 16: Check Before Operation
Check Equipment before operation It is important to check clearance before putting the Angle broom into operation. Make sure hydraulic hoses are long enough and won’t become pinched or entangled in the equipment. 1. Visually inspect hydraulic hoses for possible pinch points and shortness. If needed, make hose adjustments before putting equipment into service. - Page 17 Operating instructions (continued) Operation of sweeping The angle broom is capable of, and in fact intended to be utilized for, sweeping away dirt, light snow and other debris. Directions for use are as follows: 1. Start the skid steer at idle speed and raise the brush head. 2.
-
Page 18: Angling Of The Broom
Angling the Broom Angling the broom will control the direction debris will leave the broom. Angling the brush head the same direction as the wind will also help reduce the amount of material that blows onto the operator and the area just swept. - Page 19 auxiliary hydraulic system. Slowly increase the engine speed until the desired brush speed is reached. To stop, slow the skid steer engine speed to idle and then disengage the auxiliary hydraulic system. Slowly lower the broom until ground contact is made. Engage the skid steer drive and move the skid steer in the forward direction to start sweeping.
-
Page 20: Transporting
Stopping the broom The broom quits moving when the auxiliary control is neutralized. When you are done sweeping for a period of time, always rest the broom attachment on the brackets designed to support the weight of the broom when not in use. -
Page 21: Storage
6. Return to skid steer loader and tilt top of loader hitch slightly forward towards the Angle broom. 7. Slowly lower skid steer loader hitch plate until top angle bars and hitch plate have separated. 8. Back skid steer loader slowly away from the Angle broom STORAGE CAUTION Keep brush away from intense heat or flame. -
Page 22: Parts Chart
W W W . T M G I N D U S T R I A L . C O M P 2 1 / 2 5 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9... - Page 23 REQ’D Description remarks Part no. Serial no Quantity/unit 9367001 Nut M14 9367002 Spring Washer 14 9367003 Hydraulic Motor 9367004 Motor support hexagonal sleeve 9367005 Motor mounting plate 9367006 Bolt M14X55 9367007 Brush core weldment 9367008 Bristles wafer 9367009 Retainer plate, wafer lock 9367010 Spring Washer 8 9367011...
- Page 24 REQ’D Description remarks Part no. Serial no Quantity/unit 9367026 Bolt M10X90 9367027 Pivot pin 9367028 Adjusting Bolt 9367029 Plastic bushφ50.8 9367030 Nut M20X1.5 9367031 Spacer 9367032 Retaining washer 50 9367033 Oscillation limit plate I 9367034 Oscillation rear pivot weldment 9367035 Nut M10 9367036 Bolt M14X40...
- Page 25 W W W . T M G I N D U S T R I A L . C O M P 2 4 / 2 5 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
- Page 26 REQ’D Part no. Description remarks Serial no Quantity/unit φ5β Pin 9367046 9367047 Support lock pin 9367048 Support assembly 9367049 Attachment plate assembly 9367050 Oilless bearing 80x100x40 9367051 Shaft cover 9367052 Bolt M8X55 9367053 Rotation limit shaft cover W W W . T M G I N D U S T R I A L . C O M P 2 5 / 2 5 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
