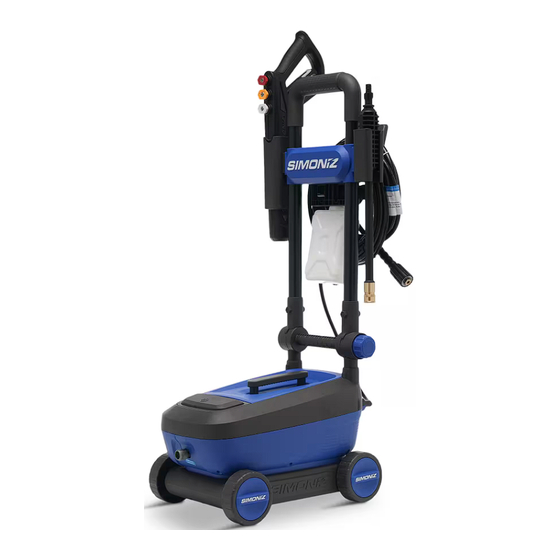

1800 PSI
ELECTRIC PRESSURE WASHER
MODEL: VE 26 / 039-8119-2
Use and Care Guide
Congratulations on the purchase of your new pressure washer. In
order to ensure you have the best possible experience, please read
through the following instructions. If you require any help, please
contact the customer service department at:
1-866-474-6664
Contact us for assistance; we're here to help.
Version. 01
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Simoniz VE 26
Summary of Contents for Simoniz VE 26
- Page 1 1800 PSI ELECTRIC PRESSURE WASHER MODEL: VE 26 / 039-8119-2 Use and Care Guide Congratulations on the purchase of your new pressure washer. In order to ensure you have the best possible experience, please read through the following instructions. If you require any help, please...
-
Page 2: Table Of Contents
Table of contents 1. Important Precautions ............... 3 1.1 Definitions ............................3 1.2 Safety Warnings ..........................3 1.3 Intended Applications ........................5 2. Safety Features and Electrical Information ......... 5 2.1 Extension Cords ..........................5 3. Exploded View ................... 6 4. -
Page 3: Important Precautions
MODEL: VE 26 / 039-8119-2 Important Precautions 1. Important Precautions IMPORTANT! RETAIN FOR FUTURE 1.2 Safety Warnings REFERENCE AND READ CAREFULLY! DANGER Do not attempt to install or operate this device until you have read the safety instructions in this manual. Safety items... - Page 4 Important Precautions 1. Important Precautions CAUTION — USE • Learn how to stop the device and release the 1.2 Safety Warnings pressure quickly. Familiarize yourself with the controls. • Keep all connections dry and off the ground. • Avoid accidental starts. Shut power OFF before WARNING —...
-
Page 5: Intended Applications
This equipment was not instructions listed below: designed for industrial use. Please refer to the icons below for suggested applications. For questions regarding other uses, please refer to our website at www.simoniz.ca or call CAUTION — USE A SUFFICIENT us at 1-844-474-6664. GAUGE •... -
Page 6: Exploded View
Exploded View / Parts List 3. Exploded View 4. Parts List Item # Part Name Qty. Part # Item # Part Name Qty. Part # QC Wand VE22-020-0002 Wand Holder VE26-030-0003 Gun Assembly VE24-030-0000 Cable Holder VE26-030-0004 Pre-attached on the Tips Kit (3 pc) VE26-020-0004 Water Filter... -
Page 7: Assembly Instructions
MODEL: VE 26 / 039-8119-2 Assembly Instructions 5. Assembly Instructions 5.4 Assembly 5.1 Surface Preparation Before beginning any cleaning task, it is important to inspect the area for objects that could create a hazard. Remove any objects from the work area that could be tripped over, such as toys or outdoor furniture. -
Page 8: Assembly Steps
Assembly Instructions 5. Assembly Instructions Connect garden hose to pump inlet and water supply respectively. Turn water on. 0˚ 15˚ 40˚ To install tip, gently slide the collar back before inserting the tip, then release the collar to lock the tip. Attach the desired spray tip to the wand. - Page 9 MODEL: VE 26 / 039-8119-2 Assembly Instructions 5. Assembly Instructions PURGING Push switch button to turn ON the machine. Push switch button one more time to turn OFF the machine. Purge air by squeezing the trigger on the gun until there...
-
Page 10: Operating Instructions
Operating Instructions 6. Operating Instructions 6.1 Working with the Foam Blaster Working with a detergent ensures quick soaking of the dirt, and allows the high-pressure water to penetrate and remove the dirt more effectively. Always spray detergent on a dry surface, do not pre-soak the area. -
Page 11: Shutting Down And Cleaning Up
MODEL: VE 26 / 039-8119-2 Operating Instructions 6. Operating Instructions 6.2 Shutting Down and Cleaning Up 6.4 Warnings Turn off water supply and disconnect the CAUTION garden hose from the water inlet on the pressure washer. Failure to clean this product properly will cause the... -
Page 12: Winterizing And Long-Term Storage
Winterizing 7. Winterizing and Long-Term Storage 7.1 Optimum Winterizing Procedure 7.2 Quick Winterizing Procedure Winterizing your pressure washer will help protect and If you are unable to perform the optimum winterizing prolong its life. We strongly recommend you follow the below procedure, you can still protect your pressure washer from steps using a pressure washer antifreeze before storing winter damage by doing the following:... -
Page 13: Cleaning And Maintenance
MODEL: VE 26 / 039-8119-2 Cleaning and Maintenance 8. Cleaning and Maintenance 8.3 Water Filter Screen 8.1 Connections The connections on the pressure washer’s hoses, gun, and spray wand should be cleaned and lubricated with non-water soluble grease regularly. The pressure washer is equipped with a water inlet screen to protect the pump. -
Page 14: Troubleshooting
Troubleshooting 10. Troubleshooting Disconnect the device from the power source before making any repairs. Problem Cause Solution The device is in OFF mode. Push the ON/OFF button once to turn to the ON mode. The power cord is not plugged in. Plug in the power cord. - Page 15 MODEL: VE 26 / 039-8119-2 Troubleshooting 10. Troubleshooting Disconnect the device from the power source before making any repairs. Problem Cause Solution Loose fittings. Tighten fittings. The garden hose connection leaks. Missing/worn rubber washer. Insert new washer. Ensure the quick-connect wand is attached securely.
-
Page 16: Warranty
The warranty is void if the equipment is used for commercial, rental or industrial purposes. If you have further questions, please visit our website (www.simoniz.ca) or call 1-866-474-6664. Made in China... -
Page 17: Icons Definitions
MODEL: VE 26 / 039-8119-2 Icons Definitions 12. Icons Definitions Hearing Protection This Way Up To protect hearing damage from the device When handling product, arrows must always noise, wear hearing protection while point up. operating the device. Store Indoors... - Page 18 Notes...
- Page 19 MODEL: VE 26 / 039-8119-2 Notes...
- Page 20 1800 PSI ELECTRIC PRESSURE WASHER MODEL: VE 26 / 039-8119-2 Imported by Trileaf Distribution Trifeuil, Toronto, Canada M4S 2B8...
