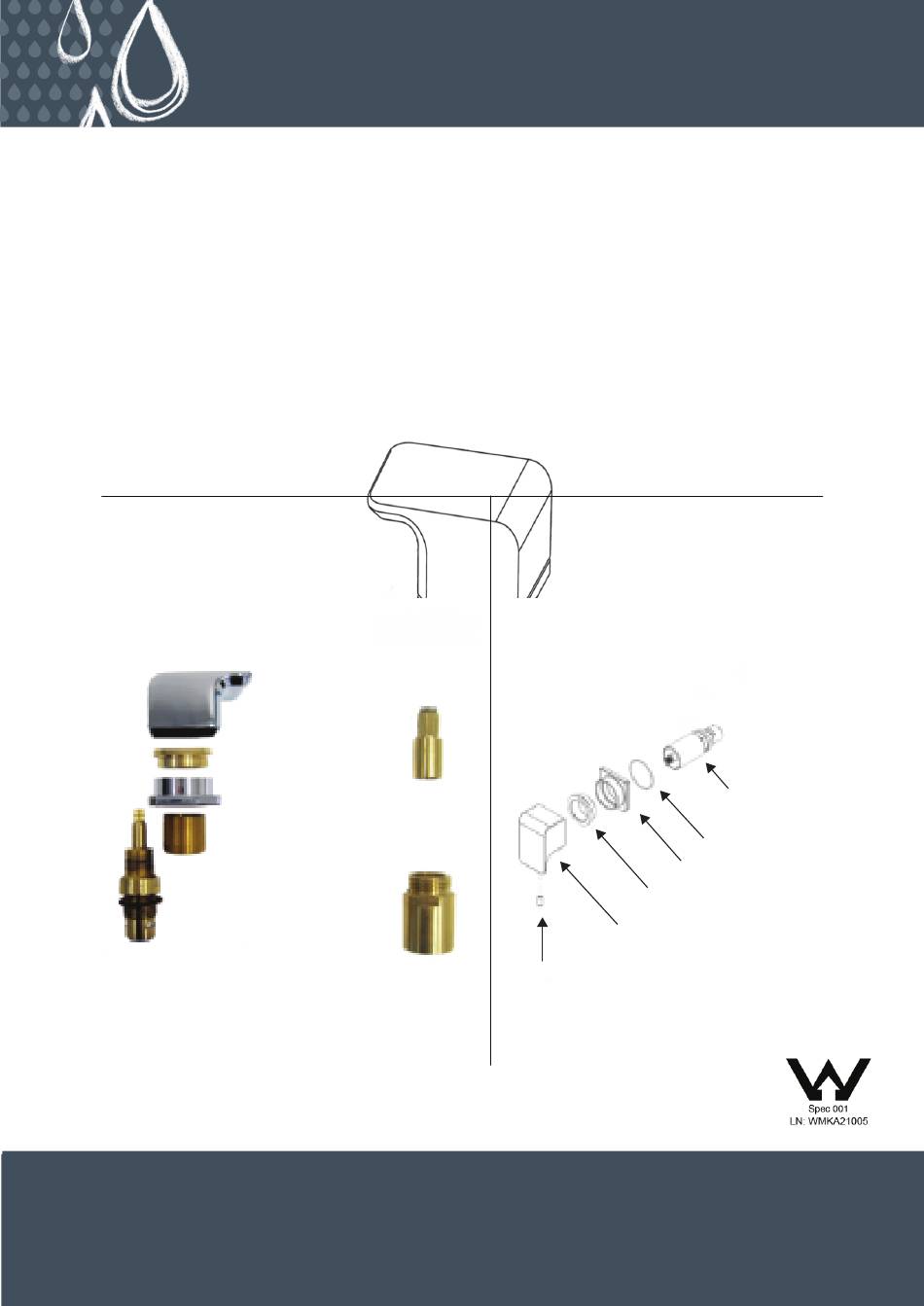

Wall Top Assembly
Technical Specifications
Inlet Connections:
Operating Pressure:
Operating Temperatures:
Recommended Rough in Set up:
Tolerance :
SPARE PARTS
Standard Spindle &
Handle Assembly Set up
Flange Male Adaptor
04-9905
Spindle Only
IMPORTANT
Hot 04-9752
Cold 04-9769
Please read all of the instructions before installation
Extended Spindles (Not Included)
Use of this product in non-domestic applications voids warranty.
Hot 04-9707
Cold 04-9714
All pipe work must be thoroughly flushed prior to the installation of the mixer.
Flange Male Adaptor 04-9899
NEFA inline filters must be installed on both hot and cold supplies.
Do not remove the ceramic cartridge from the mixer when installing.
AUG 2010
Damage caused by hydrostatic testing is not covered by our warranty.
The warranty statement shall apply to all tapware & showers supplied by Methven
For more information visit www.methven.com
THIS WARRANTY ISSUED BY: Methven Australia Pty Ltd, Melbourne Australia
We recommend that this product is installed by a licensed plumber.
Methven Australia Pty Ltd
ABN 15 104 813 390
Melbourne, Australia
www.methven.com
Kiri
Standard Spindle
12mm Extension
04-9837
(Not Included)
Illustration may not reflect actual product shape.
Installation Guide
Spindle Flange M & F
Extension 04-9875
(Not Included)
www.methven.com
All 1/2' BSP
150kPa - 500kPa
HOT 01-5795
Recommended hot water supply 50°C,
COLD 01-5788
maximum 70°C. AS 3500 requires all hot
water supplies to any sanitary fitting to be
tempered to 50°C.
Face of finished wall to front of breech
(body) 8mm
Min: 4mm Max: 12mm

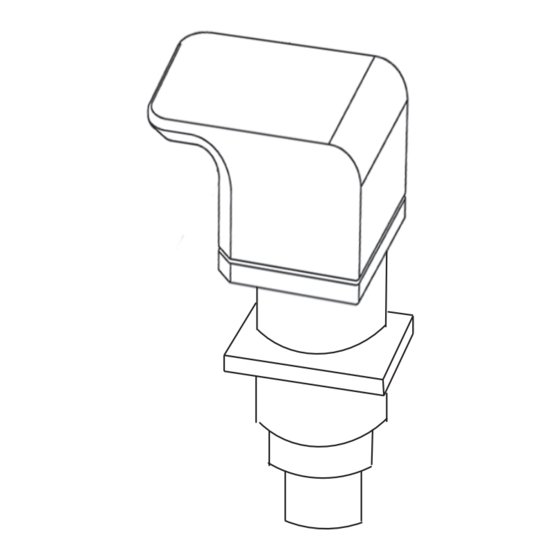

STANDARD WALL-TOP ASSEMBLY
Adjustment For Handle Line Up.
The spindle can be tightened allowing
the handle to be adjusted on the spline.
Grub screws
Spindle as assembled
Blue washer = COLD
Red washer = HOT
Spindle
Flange 0-rings
Flange
Flange Locking Nut
Handle
MA015801
