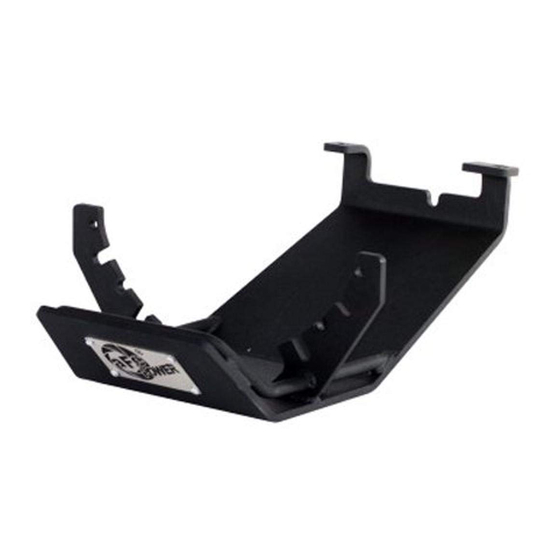

advanced FLOW engineering
Instruction Manual
P/N: 46-70049
Make: Dodge Model: RAM 2500/35000 Year: 2003-2012 Engine: L6-5.9/6.7L (td)

Advertisement

loading
Need help?

Need help?

Do you have a question about the 46-70049 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for aFe Power 46-70049

  • Page 1 ® advanced FLOW engineering Instruction Manual P/N: 46-70049 Make: Dodge Model: RAM 2500/35000 Year: 2003-2012 Engine: L6-5.9/6.7L (td)
  • Page 2 ® • Please read the entire instruction manual before proceeding. • Ensure all components listed are present. • If you are missing any of the components, call customer support at 951-493-7100. • Ensure you have all necessary tools before proceeding. •...
  • Page 3 aFepower.com Page 3...
  • Page 4 ® REMOVAL Figure A Refer to Figure A for step 1 NOTE: FOr aFE cOvEr FOllOw sTEps 1-8 & FOr sTOck cOvEr FOllOw sTEps 9-16. Step 1. Remove the 4 highlighted bolts. These will be used to mount your Glide Guard. Page 4...
  • Page 5 REMOVAL Figure B Refer to Figure B for step 2 Step 2. Place the Glide Guard on a stand and slide it on to line up the 4 bolt holes. aFepower.com Page 5...
  • Page 6 ® INSTALL Figure C Refer to Figure C for step 3 Step 3. Start all 4 screws by hand and be sure to install a washer on the backside of the Glide Guard mounting flange and another washer on the front side of the mounting flange. Page 6...
  • Page 7 INSTALL Figure D Refer to Figure D for step 4 Step 4. Install the hanger strap with the 2 long bolts and washers (hand tighten only). aFepower.com Page 7...
  • Page 8 ® INSTALL Figure E Refer to Figure E for step 5 Step 5. Tighten up the 4 mounting screws and torque to 16ft. lbs. Page 8...
  • Page 9 INSTALL Figure F Refer to Figure F for step 6 Step 6. Install the 2 set screws at the bottom of the Glide Guard. These screws are only to be hand tightened. aFepower.com Page 9...
  • Page 10 ® INSTALL Figure G Refer to Figure G for step 7 Step 7. Tighten down the bolts just until the hanger strap begins to flex. Page 10...
  • Page 11 INSTALL Figure H Refer to Figure H for step 8 Step 8. Your aFe Power Glide Guard installation is now complete. NOTE: Retighten all connections after approximately 100-200 miles. aFepower.com Page 11...
  • Page 12 ® REMOVAL Figure H Refer to Figure H for step 9 Step 9. Remove the 4 highlighted bolts. These will be used to mount your Glide Guard. Page 12...
  • Page 13 REMOVAL Figure I Refer to Figure I for step 10 Step 10. Place the Glide Guard on a stand and slide it on to line up the 4 bolt holes. aFepower.com Page 13...
  • Page 14 ® INSTALL Figure J Refer to Figure J for step 11 Step 11. Start all 4 screws by hand and be sure to install a spacer on the backside of the Glide Guard mounting flange and a washer on the front side of the mounting flange. Page 14...
  • Page 15 INSTALL Figure K Refer to Figure K for step 12 Step 12. Install the hanger strap with the 2 long bolts and washers (hand tighten only). aFepower.com Page 15...
  • Page 16 ® INSTALL Figure L Refer to Figure L for step 13 Step 13. Tighten up the 4 mounting screws and torque to 16ft. lbs. Page 16...
  • Page 17 INSTALL Figure M Refer to Figure M for step 14 Step 14. Install the 2 set screws at the bottom of the Glide Guard. These screws are only to be hand tightened. aFepower.com Page 17...
  • Page 18 ® INSTALL Figure N Refer to Figure N for step 15 Step 15. Tighten down the bolts just until the hanger strap begins to flex. Page 18...
  • Page 19 INSTALL Figure O Refer to Figure O for step 16 Step 16. Your aFe Power Glide Guard installation is now complete. NOTE: Retighten all connections after approximately 100-200 miles. aFepower.com Page 19...
