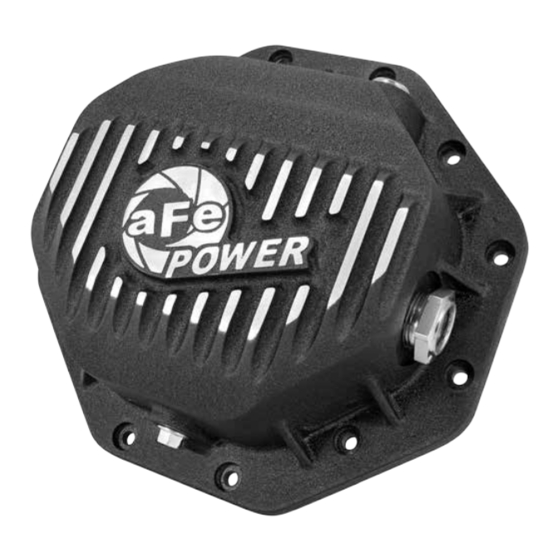

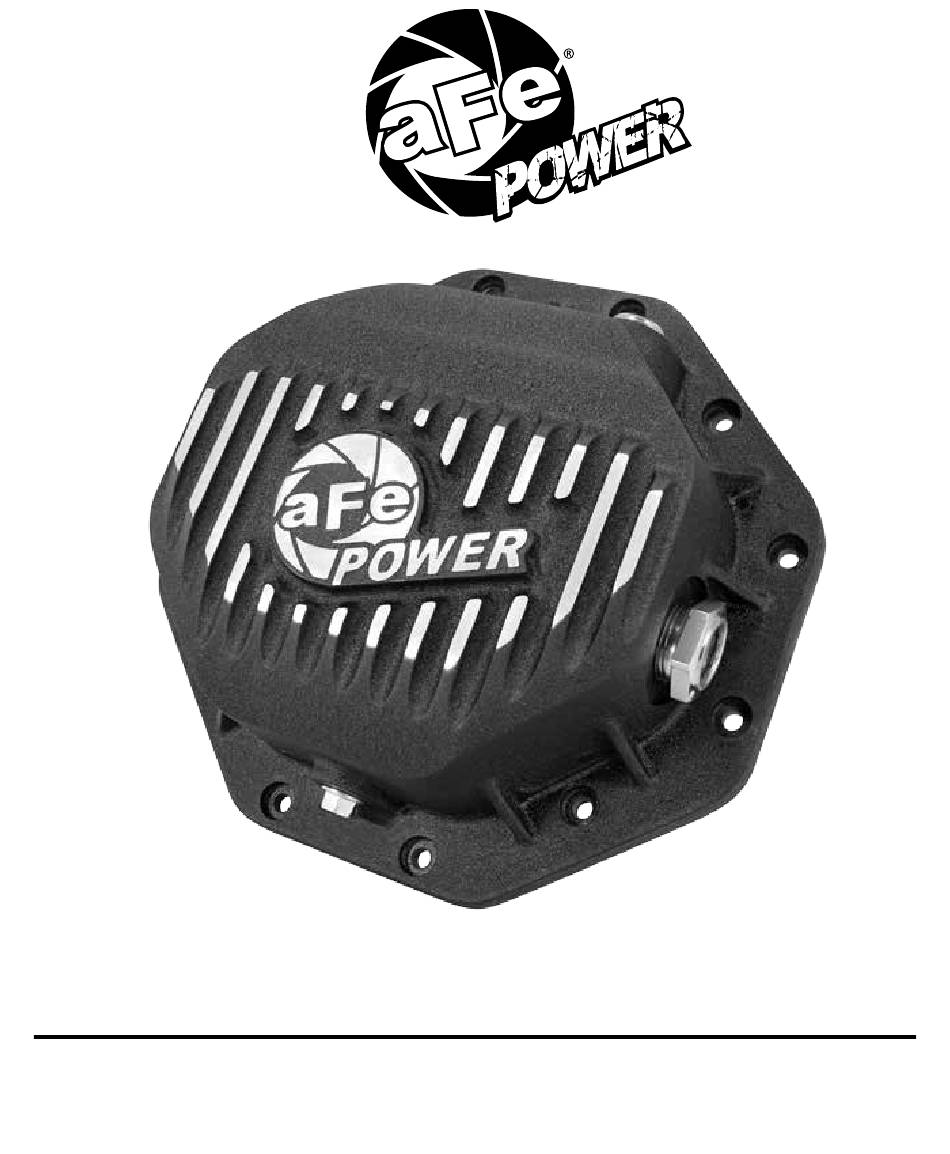

- Page 1 FLOW engineering Instruction Manual P/N: 46-70270 / 46-70272 Make: Dodge/RAM Model: 1500 Year: 1994-2016 Axle: Corporate 9.25-12 Bolt...
- Page 2 Diff. Cover - Machined Fins 05-60445B Plug, Hex Hd Socket: 1/8 NPT (Zn Plt) 03-50029 Plug, 3/4-14 NPTF, 6” Deep Reach (46-70272) 03-50223 Plug, 3/4-14 NPTF (46-70270) 03-50391 Plug, M12 x 1.25 (46-70272) 03-50385 Plug, 1"-11.5 NPT (46-70270) 03-50390 Screws, Socket Head Cap: 5/16-18 x 1.0 S/S...
- Page 3 aFepower.com Page 3...
- Page 4 REMOVAL Figure A Refer to Figure A for steps 1-3 Step 1: Park your truck on level ground and apply the parking brake. Step 2: Using a 15mm socket, remove the sway bar from the rear axle. Step 3: Using a 21mm socket and wrench, remove the rear panhard bar. Page 4...
- Page 5 REMOVAL Figure B Refer to Figure B for steps 4-9 Step 4: Place a drain pan under the rear differential cover. Step 5: Using a 13mm socket, remove all but 1 of the bolts from the differential cover leaving the last bolt in one of the top holes.
- Page 6 INSTALL Figure C Refer to Figure C for step 10 Step 10: Using the silicone provided lay a continuous line around the cover (as shown in the photo above). Page 6...
- Page 7 REMOVAL INSTALL Figure D Refer to Figure D for steps 11-12 Step 11: Position the cover by aligning the bolt holes. Start one of the new allen head bolts at the top bolt hole. Continue around the cover until all bolts are started. Step 12: Using a 5/16 allen socket, torque all allen head bolts to 12-16 ft.
- Page 8 INSTALL Figure E Refer to Figure E for step 13 Step 13: Using a 14mm socket, install the drain plug and crush washer into the aFe differential cover. Page 8...
- Page 9 Refer to Figure F for steps 14-15 Step 14: Apply teflon pipe sealant tape on the threads of the NPT plug components before installing. When installing kit number 46-70270 only: Step 15: Install the 1” NPT plug in the passenger side of the aFe differential cover.
- Page 10 Step 17: Install the supplied 6" deep reach magnet in the top fill hole and tighten using 1/2" ratchet torque wrench. DO NOT OVER TIGHTEN. When installing kit number 46-70270 only: Step 18: Install the supplied ¾" NPT plug in the top fill plug hole and tighten using 1/2" ratchet torque wrench.
- Page 11 INSTALL Figure H Refer to Figure H for steps 19-21 Step 19: Reinstall the rear panhard bar using the factory hardware and tighten. Step 20: Reinstall the rear sway bar using the factory hardware and tighten. Step 21: Your installation is now complete. Drive at least 25 miles and check oil level using aFe sight glass and fill if necessary.
- Page 12 Page left blank intentionally Page 12...
- Page 13 Page left blank intentionally aFepower.com aFepower.com Page 13...
- Page 14 Magnum FORCE Air Intake Stage-1 Intake System Stage-2 Intake System Magnum FORCE Air Intake P/N: 54-10381 P/N: 54-10502 P/N: 54-12012 P/N: 54-11992 Oil Filter Throttle Body Spacer Throttle Body Spacer Air Intakes P/N: 44-LF006 P/N: 46-32002 P/N: 46-32004 P/N: 30-10071 Cat-Back Exhaust Twisted Steel Header Cat-Back Exhaust...
-
Page 15: Warranty
Warranty General Terms: • aFe warrants their products to be free from manufacturer’s defects due to workmanship and material. • This warranty applies only to the original purchaser of the product and is non-transferrable. • Proof of purchase of the aFe product is required for all warranty claims. •... - Page 16 advanced FLOW engineering, inc. 252 Granite Street Corona, CA 92879 TEL: 951.493.7100 P/N: 06-80699...
