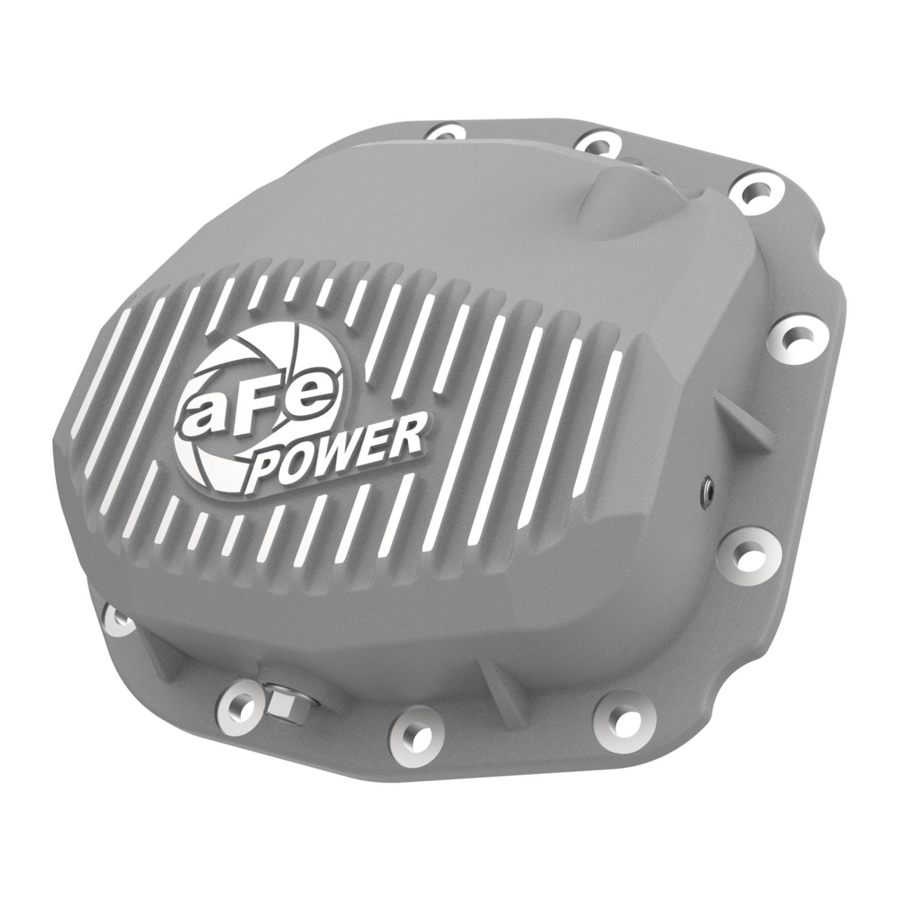

- Page 1 Instruction Manual P/N: 46-71180A / 46-71180B Super 8.8 – 12 Bolt Rear Differential Cover Make: Ford Model: F150 Year: 15-19 Engine: V6 – 2.7L/3.5L Make: Ford Model: F150 Year: 18-19 Engine: V6 – 3.0L Make: Ford Model: F150 Year: 15-19 Engine: V8 – 5.0L...
- Page 2 Washer, Flat 03-50470 Washer, Crush M12 03-50384 Plug, 1/8” NPT 03-50029 Plug, 3/4” NPT 03-50391 (Included in 46-71180A) Plug, Magnetic 3/4” NPT, 6” Deep Reach 03-50223 (Included in 46-71180B) Plug, 1” NPT Sight Glass 03-50224 (Included in 46-71180B) Plug, Magnetic M12x1.25...
- Page 4 1. Park your vehicle on a flat, dry surface. You will need to block the tires to prevent the vehicle from rolling. 2. Place a drain pan under the differential cover. 3. If applicable, remove the three (3) brake line clips and move the lines out of the way. 4.
- Page 5 7. Allow all of the gear oil to drain from the differential. 8. Remove the one (1) remaining bolt from the top of the differential cover. 9. Carefully insert a gasket scraper between the differential cover and the housing. Pry the differential cover off.
- Page 6 11. Use a clean, lint free shop towel to wipe down the remaining gear oil from the housing. 12. Clean off the sealing surface with a gasket scraper. Be careful not to gouge the surface while cleaning. 13. Check the surface of the housing for any irregularities. If there are any, carefully remove high spots using a smooth flat file.
- Page 7 14. Hold the supplied aFe differential cover up to the gasket surface to make sure you will be able to maneuver it into place easily. 15. Spread the supplied RTV silicone across the gasket surface. Be generous when spreading the silicone across the surface, ensuring to follow along the inside of all the bolt holes. Note: Before moving on, make sure that the silicone will completely seal with the gasket surface.
- Page 8 16. Hold the aFe differential cover in position, aligning the screw holes. Install four (4) of the supplied M10x1.5x30 socket head screws and flat washers into separate sides of the cover to hold it in place. Note: Be careful not to move the cover around once it touches the gasket surface. 17.
- Page 9 21. Install the supplied M12x1.25 drain plug and crush washer into the bottom of the cover. When installing kit number 46-71180B only: 22. Apply Teflon pipe sealant to the threads and install the supplied 1” NPT Sight Glass plug into the side of the cover.
- Page 10 23. Using the top fill port, fill the aFe differential cover using new gear oil. Fill until gear oil runs out of the 1/8” NPT port on the side of the cover (about 4 quarts). Note: If your vehicle is lifted and your axle has been rotated, you will have to verify you have the correct oil level for your vehicle.
- Page 11 24. Apply Teflon pipe sealant to the threads of the supplied 1/8” NPT plug.
- Page 12 25. Install the 1/8” NPT plug into the side of the cover.
- Page 13 When installing kit number 46-71180B only: 26. Apply Teflon pipe sealant to the threads of the supplied 3/4” NPT magnetic 6” deep reach plug.
- Page 14 If installing kit number 46-71180A: 27a.Install the supplied 3/4” NPT plug into the top of the cover. If installing kit number 46-71180B: 27b.Install the 3/4" NPT magnetic 6” deep reach plug into the top of the cover.
- Page 15 28. Your Installation is complete.
-
