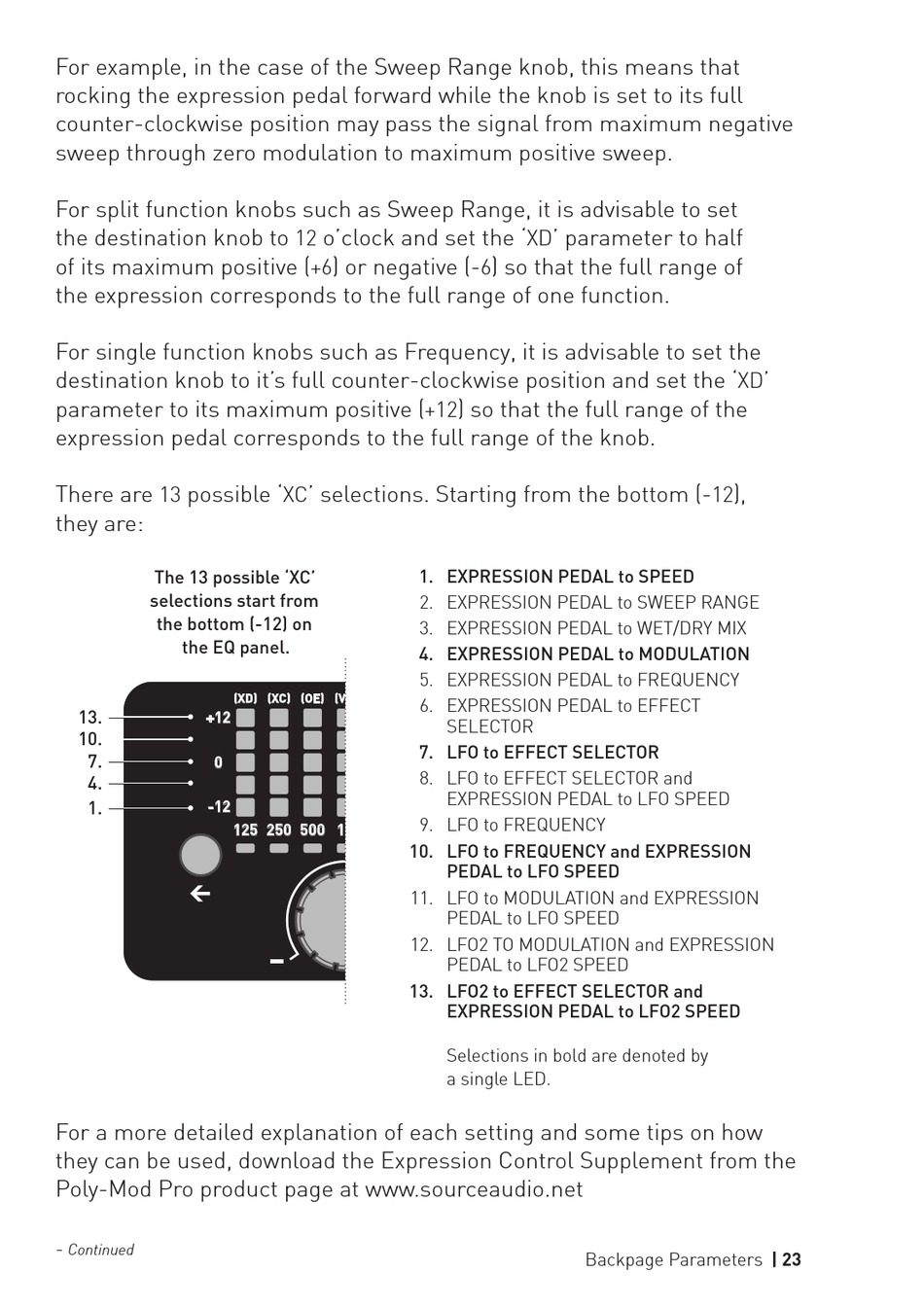

For example, in the case of the Sweep Range knob, this means that
rocking the expression pedal forward while the knob is set to its full
counter-clockwise position may pass the signal from maximum negative
sweep through zero modulation to maximum positive sweep.
For split function knobs such as Sweep Range, it is advisable to set
the destination knob to
of its maximum positive (
the expression corresponds to the full range of one function.
For single function knobs such as Frequency, it is advisable to set the
destination knob to it's full counter-clockwise position and set the '
parameter to its maximum positive (
expression pedal corresponds to the full range of the knob.
There are possible '
13
they are:
The 13 possible 'XC'
selections start from
the bottom (-12) on
the EQ panel.
13.
+12
10.
7.
0
4.
1. -12
<
For a more detailed explanation of each setting and some tips on how
they can be used, download the Expression Control Supplement from the
Poly-Mod Pro product page at www.sourceaudio.net
-
Continued
o'clock and set the '
12
) or negative (-
+6
' selections. Starting from the bottom (-
XC
(XD) (XC) (OE) (VA) (Q) (EL) (LS)
125 250 500 1K 2K
' parameter to half
XD
) so that the full range of
6
) so that the full range of the
+12
1. EXPRESSION PEDAL to SPEED
2. EXPRESSION PEDAL to SWEEP RANGE
3. EXPRESSION PEDAL to WET/DRY MIX
4. EXPRESSION PEDAL to MODULATION
5. EXPRESSION PEDAL to FREQUENCY
6. EXPRESSION PEDAL to EFFECT
USER
SELECTOR
7. LFO to EFFECT SELECTOR
8. LFO to EFFECT SELECTOR and
EXPRESSION PEDAL to LFO SPEED
9. LFO to FREQUENCY
4K 8K
10. LFO to FREQUENCY and EXPRESSION
PEDAL to LFO SPEED
>
11. LFO to MODULATION and EXPRESSION
PEDAL to LFO SPEED
12. LFO2 TO MODULATION and EXPRESSION
PEDAL to LFO2 SPEED
13. LFO2 to EFFECT SELECTOR and
EXPRESSION PEDAL to LFO2 SPEED
Selections in bold are denoted by
a single LED.
XD
),
12
