LEGRAND SANUS ELITE BSWME2 Instruction Manual

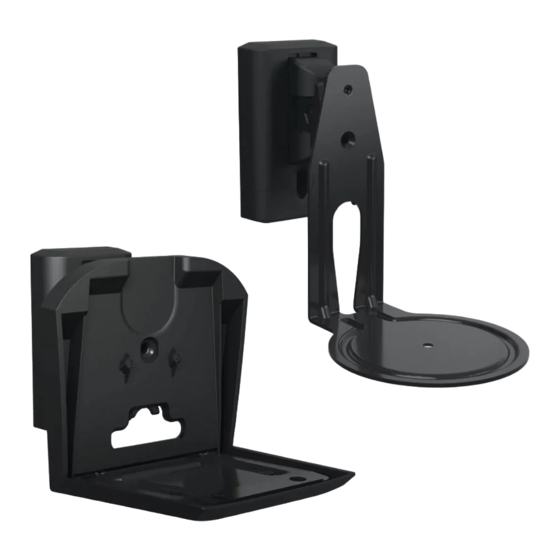

Tilt & swivel speaker wall mount for sonos era 100 and era 300
Hide thumbs

Advertisement

Quick Links

Download this manual
Era 300
Era 100
™
™
BSWME2
Tilt & Swivel Speaker Wall Mount
For SONOS
Era 100
Era 300
®
™ and
™
INSTRUCTION MANUAL
Texto en español, página 38
We'll Make It Stress-Free
If you have any questions along the way, just give us a call.
US: +1 (800) 359-5520
We're ready to help!

Advertisement

loading
Need help?

Need help?

Do you have a question about the SANUS ELITE BSWME2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LEGRAND SANUS ELITE BSWME2

Summary of Contents for LEGRAND SANUS ELITE BSWME2

  • Page 1 Era 300 Era 100 ™ ™ BSWME2 Tilt & Swivel Speaker Wall Mount For SONOS Era 100 Era 300 ® ™ and ™ INSTRUCTION MANUAL Texto en español, página 38 We’ll Make It Stress-Free If you have any questions along the way, just give us a call. US: +1 (800) 359-5520 We’re ready to help!

  • Page 2: Tools Needed

    IMPORTANT SAFETY INSTRUCTIONS — PLEASE READ ENTIRE MANUAL PRIOR TO USE — SAVE THESE INSTRUCTIONS Before getting started, let’s make sure this product is perfect for you! This stand is designed to support only Sonos® Era 100™ and Era 300™ speakers. CAUTION: Avoid potential personal injuries and property damage! •...
  • Page 3 Parts List ......4-5 100 Speaker ..... 6-21 Instructions 300 Speaker.
  • Page 4 Supplied Parts and Hardware WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service.
  • Page 5 STEP 2 STEP 3 Wall Plate Screw Era 100™ Speaker Screw Era 100™ Era 300™ Drywall / Concrete Anchor Speaker Screw STEP 4 Wall Plate Wall Plate Screw Wall Cap Era 300™ Drywall / Concrete Anchor...
  • Page 6 For SONOS Era 100 ® ™ Pages 6-21...
  • Page 7 Dimensions 0.22in 2.31in 5.6mm 58.8mm 2.64in 0.84in 1.17in 66.9mm 21.3mm 3.00in 3.50in 29.8mm 88.9mm 76.1mm 7.36in 186.9mm 1.73in 44mm 3.94in 0.26in 100mm 6.6mm 2.32in 59mm 4.04in 102.7mm 5.88in 149.3mm 1.97in 50mm...

  • Page 8: Installation

    STEP 1 Assemble Brackets BELOW Eye Level Installation...
  • Page 9 ABOVE Eye Level Installation (Speaker Upside Down)
  • Page 10 STEP 2 Attach Speaker to Bracket...
  • Page 12 STEP 3-A Attach Wall Plate to Wall Drywall Only Installation CAUTION: Avoid potential personal injury or property damage! ● Drywall covering the wall, must not be less than 1/2 in. (12.7 mm) 1 in. (2.5 cm) Min. 1/2 in. (12.7 mm) 1/4 in.
  • Page 13 CAUTION: Avoid potential personal injury or property damage! DO NOT use power tools for this step. MUST BE firmly tightened to prevent unwanted movement of the wall plate . Ensure the wall plate is securely fastened to the wall before continuing Both screws on to the next step, but DO NOT overtighten the screws.

  • Page 14: Wood Stud Installation

    STEP 3-B Attach Wall Plate to Wall Wood Stud Installation CAUTION: Avoid potential personal injury or property damage! ● Drywall covering the wall, must not exceed 5/8 in. (16 mm) ● Minimum wood stud size: nominal 2 x 4 in. (51 x 102 mm) actual 1½ x 3½ in. (38 x 89 mm) ●...
  • Page 15 CAUTION: Avoid potential personal injury or property damage! DO NOT use power tools for this step. MUST BE firmly tightened to prevent unwanted movement of the wall plate . Ensure the wall plate is securely fastened to the wall before continuing Both screws on to the next step, but DO NOT overtighten the screws.
  • Page 16 Attach Wall Plate to Wall Solid Concrete or Concrete Block Installation STEP 3-C CAUTION: Avoid potential personal injury or property damage! ● Mount the wall plate directly onto the concrete surface (no wall covering) ● Minimum solid concrete thickness: 8 in. (203 mm) ●...
  • Page 17 CAUTION: Avoid potential personal injury or property damage! DO NOT use power tools for this step. MUST BE firmly tightened to prevent unwanted movement of the wall plate . Ensure the wall plate is securely fastened to the wall before continuing Both screws on to the next step, but DO NOT overtighten the screws.
  • Page 18 STEP 4 Mount Assembly to Wall Plate...

  • Page 20: Side To Side

    Adjustments TILT DOWN SIDE TO SIDE TILT UP...
  • Page 21 To Remove...
  • Page 22 For SONOS Era 300 ® ™ Pages 22-37...
  • Page 23 Dimensions 0.22in 2.32in 5.6mm 59mm 3.50in 1.17in 0.84in 88.9mm 29.8mm 21.3mm 3.00in 6.89in 76.1mm 175.1mm 1.73in 44mm 1.97in 0.26in 50mm 6.6mm 4 deg UP TILT 4.82in 4.04in 122.4mm 102.6mm 32 deg 4.91in DOWN TILT 124.8mm 32deg 32deg...

  • Page 24: Installation

    STEP 1 Assemble Brackets BELOW Eye Level Installation...
  • Page 25 ABOVE Eye Level Installation (Speaker Upside Down)
  • Page 26 STEP 2 Attach Speaker to Bracket...
  • Page 28 STEP 3-A Attach Wall Plate to Wall Drywall Only Installation CAUTION: Avoid potential personal injury or property damage! ● Drywall covering the wall, must not be less than 1/2 in. (12.7 mm) 1 in. (2.5 cm) Min. 1/2 in. (12.7 mm) 3/8 in.
  • Page 29 CAUTION: Avoid potential personal injury or property damage! DO NOT use power tools for this step. MUST BE firmly tightened to prevent unwanted movement of the wall plate . Ensure the wall plate is securely fastened to the wall before continuing Both screws on to the next step, but DO NOT overtighten the screws.
  • Page 30 STEP 3-B Attach Wall Plate to Wall Wood Stud Installation CAUTION: Avoid potential personal injury or property damage! ● Drywall covering the wall, must not exceed 5/8 in. (16 mm) ● Minimum wood stud size: nominal 2 x 4 in. (51 x 102 mm) actual 1½ x 3½ in. (38 x 89 mm) ●...
  • Page 31 CAUTION: Avoid potential personal injury or property damage! DO NOT use power tools for this step. MUST BE firmly tightened to prevent unwanted movement of the wall plate . Ensure the wall plate is securely fastened to the wall before continuing Both screws on to the next step, but DO NOT overtighten the screws.
  • Page 32 Attach Wall Plate to Wall Solid Concrete or Concrete Block Installation STEP 3-C CAUTION: Avoid potential personal injury or property damage! ● Mount the wall plate directly onto the concrete surface (no wall covering) ● Minimum solid concrete thickness: 8 in. (203 mm) ●...
  • Page 33 CAUTION: Avoid potential personal injury or property damage! DO NOT use power tools for this step. MUST BE firmly tightened to prevent unwanted movement of the wall plate . Ensure the wall plate is securely fastened to the wall before continuing Both screws on to the next step, but DO NOT overtighten the screws.
  • Page 34 STEP 4 Mount Assembly to Wall Plate...
  • Page 36 Adjustments TILT DOWN SIDE TO SIDE TILT UP...
  • Page 37 To Remove...
  • Page 38 INSTRUCCIONES IMPORTANTES DE SEGURIDAD: ESPAÑOL GUARDE ESTAS INSTRUCCIONES Y LEA TODO EL MANUAL ANTES DE UTILIZAR ESTE PRODUCTO. Antes de comenzar, verifiquemos que este producto sea el ideal para sus necesidades. Los soportes para altavoces fueron concebidos para sostener altavoces Sonos® Era 100™ y Era 300™, exclusivamente. PRECAUCIÓN: Evite posibles lesiones personales y daños materiales.
  • Page 39 Piezas y elementos de sujeción suministrados ( paginas 4-5) Instrucciones para Era 100 altavoz (paginas 6-21) Instrucciones para Era 100 altavoz (paginas 22-37) Piezas y elementos de sujeción suministrados página 4 ADVERTENCIA: Este producto contiene piezas pequeñas que, en caso de ser tragadas, podrían causar asfixia. Antes de comenzar a montar la unidad, verifique que dispone de todas las piezas y que se encuentran en buen estado.
  • Page 40 +1 (800) 359-5520 ● SANUS.com Legrand AV Inc. and its affiliated corporations and subsidiaries (collectively, “Legrand”), intend to make this manual accurate and complete. However, Legrand AV makes no claim that the information contained herein covers all details, conditions, or variations. Nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind.
