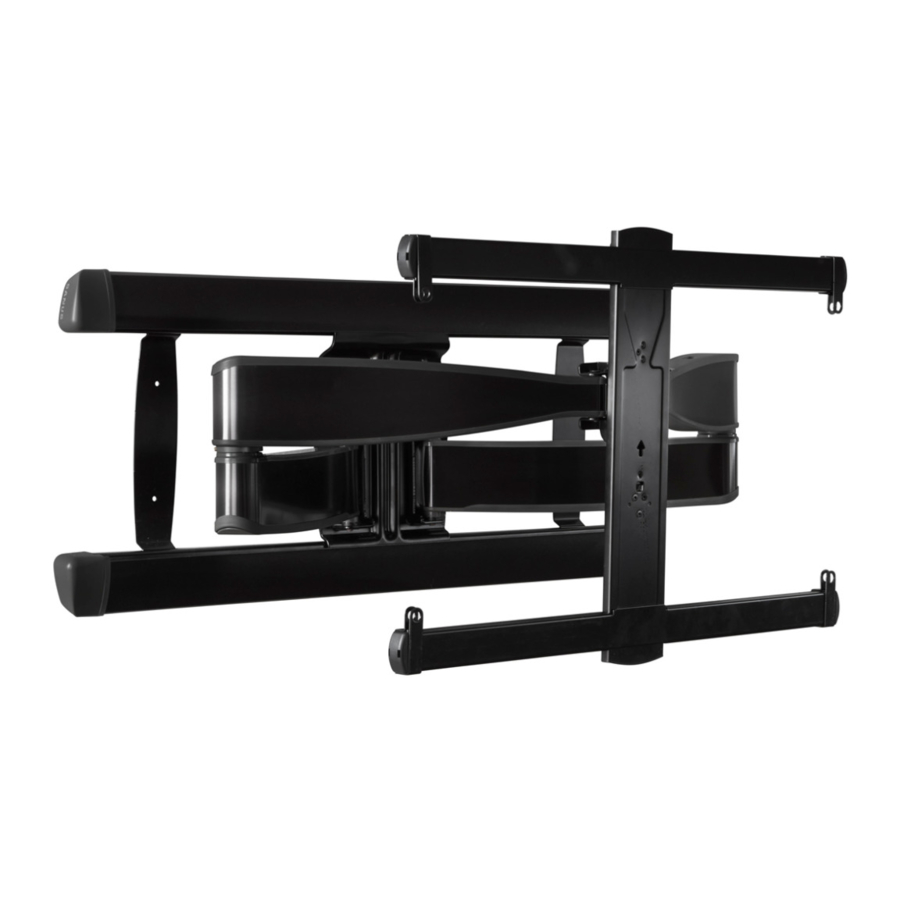

LEGRAND SANUS VLF728 - TV Mount Manual

LEGRAND SANUS VLF728 - TV Mount Manual

Also See for SANUS VLF728:

Advertisement

LEGRAND SANUS VLF728 - TV Mount Manual

WE'RE HERE TO HELP

Want to watch a video that shows how easy this DIY project will be?

Watch it now at: SANUS.com/3079

Get it right the first time. HeightFinder™ shows you where to drill.

Check it out at: SANUS.com/1172

Ourlive, US-based install experts are standing by to help.

Call us at: US: +1 (800) 359-5520

Or, chat at: SANUS.com/chatSP

Before you begin

Remove the stand from your TV — if attached.

Install any accessories you may have purchased — if they require the TV to be removed from the wall for assembly. The TV is removable for future accessory purchases.

Protect the face of your TV when laying it down for installation.

Wall Construction

ONLY install on these acceptable wall types.

Unsure
Call Customer Service +1 (800) 359-5520

DO NOT install in drywall alone

Drywall alone will NOT hold the weight of your TV.

Tools Needed

STEP 1
Attach TV Bracket to TV


This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!

information NOTE: Not all hardware included will be used.

STEP 1 Parts and Hardware

  1. Select TV Screw Diameter
    Only one screw size fits your TV.

information If your TV included inset spacers or wall mount adapters, see Troubleshooting.

  1. Select TV Screw Length and Spacers
  1. NO SPACER
  • Flat Back TV
    [TV brackets lay flat on your TV]
  1. SPACER NEEDED
  • Flat Back TV with Extra Space Needed [for deep inset holes or cable interference]
  • Rounded or Irregular Back TV [TV brackets NOT resting flat on your TV]
    Attach TV Bracket to TV


Verify adequate thread engagement with your screw 01, washer 02, spacer 03 combination AND TV bracket 06.

  • Too short will not hold your TV.
  • Too long will damage your TV.
  1. Attach TV Brackets to Your TV
    Attach TV Brackets to Your TV - Step 1
    Attach TV Brackets to Your TV - Step 2
    Attach TV Brackets to Your TV - Step 3
    Attach TV Brackets to Your TV - Step 4

STEP 2
Attach Wall Plate to Wall


This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!

information NOTE: Not all hardware included will be used.

Parts and Hardware for STEP 2

STEP 2A Attach Wall Plate
Wood Stud Installation


: Avoid potential personal injury or property damage!

  • Drywall covering the wall must not exceed 5/8 in. (1.5 cm)
  • Minimum wood stud size: nominal 2 x 4 in. (5.1 x 10.2 cm) actual 1 ½ x 3 ½ in. (3.8 x 8.9 cm)
  • Minimum horizontal space between fasteners: 16 in. (40.6 cm)
  • Stud centers must be verified

Attach Wall Plate to Wall - Step 1
Attach Wall Plate to Wall - Step 2

information TIP: To calculate your precise wall plate location, check out our HeightFinder at sanus.com [www.sanus.com/1172].

Attach Wall Plate to Wall - Step 3


Be sure you drill into the CENTER of the stud.

Attach Wall Plate to Wall - Step 4
Attach Wall Plate to Wall - Step 5


Avoid potential personal injury or property damage! All four lag bolts 09 MUST BE firmly tightened to prevent unwanted movement of the wall plate 08. Ensure the wall plate is securely fastened to the wall before continuing on to the next step.

STEP 2B Attach Wall Plate
Solid Concrete or Concrete Block Installation


Avoid potential personal injury or property damage!

  • Mount the wall plate 08 directly onto the concrete surface
  • Minimum solid concrete thickness: 8 in. (20.3 cm)
  • Minimum concrete block size: 8 x 8 x 16 in. (20.3 x 20.3 x 40.6 cm)
  • For concrete applications, arm 11 (STEP 3) must remain centered (horizontally) in wall plate 08. Keep this in mind when selecting the wall plate location


Avoid potential personal injury or property damage!

warning Install lag bolts into the slots AS SHOWN.
Three (3) lag bolts at the top.
One (1) lag bolt at the bottom.

Install Wall Plate - Solid Concrete or Concrete Block - Step 1

information TIP: To calculate your precise wall plate location, check out our HeightFinder at sanus.com [www.sanus.com/1172].

Install Wall Plate - Solid Concrete or Concrete Block - Step 2


Never drill into the mortar between blocks.

Install Wall Plate - Solid Concrete or Concrete Block - Step 3


Be sure the anchors 10 are seated flush with the concrete surface.

Install Wall Plate - Solid Concrete or Concrete Block - Step 4
Install Wall Plate - Solid Concrete or Concrete Block - Step 5


Avoid potential personal injury or property damage! All four lag bolts 09 MUST BE firmly tightened to prevent unwanted movement of the wall plate 08. Ensure the wall plate is securely fastened to the wall before continuing on to the next step.

STEP 3
Attach TV to Wall Plate


Before starting assembly, verify this part is undamaged. If damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!

Parts and Hardware for STEP 3

  1. Attach Arm Assembly to Wall Plate
    Attach TV to Wall Plate - Step 1
information NOTE: For WOOD STUD APPLICATIONS, the arm assembly 11 can be slid anywhere along wall plate 08 for optimal positioning of your TV.

Attach TV to Wall Plate - Step 2


Avoid potential personal injury or property damage! Always make sure both locking screws S are tightened, so the arm assembly 11 is securely fastened to wall plate 08.

Attach TV to Wall Plate - Step 3

  1. Hang TV onto Arm Assembly
    Attach TV to Wall Plate - Step 4
    Attach TV to Wall Plate - Step 5


Avoid potential personal injury or property damage! Always make sure your securement screw 12 is tightened, so the TV is securely fastened to the arm assembly 11.

Manage Cables

Manage Cables - Step 1


Pull arm 11 to its full extension, to leave enough slack and prevent stretching the cables when the arms are moved.

Manage Cables - Step 2

Adjustments

Adjustments - Step 1
Adjustments - Step 2

information NOTE: If you do not intend to adjust the tilt for different viewing locations, you can tighten the tilt tension knob T , to prevent unwanted movement. If needed, use hex key 14 to tighten more firmly. Your TV should adjust easily when moved, then stay in place.

Your TV should adjust easily when moved, then stay in place. Adjust the tilt tension knob Adjust the tilt tension knob T if your TV naturally tilts up or down.

Adjustments - Step 3


Avoid potential personal injury or property damage!

information TIP: DO NOT remove screws E , only turn enough for slight adjustment.

ONLY if needed, adjust the extension/retraction arm tension with screw E hex key 13.

TV LATERAL SHIFT

HEAVY! You may need assistance with this step.


Avoid potential injuries or property damage!
Do NOT adjust the arm position from center for concrete applications.

Arm 11 MUST remain centered in wall plate 08 for all concrete applications!

For wood stud applications ONLY:

  1. Remove the TV.
  2. Open cover strips P .
  3. Loosen but do not remove, locking screws S .
  4. Slide arm 11 to the desired position.
  5. Tighten locking screws S.


    Avoid potential personal injury or property damage! Always make sure both locking screws S are tightened so the TV is securely fastened to wall plate 08.
  6. Close the cover strips P , then hang your TV (see STEP 3).

REMOVE THE TV

HEAVY! You may need assistance with this step.

  1. Disconnect all cables from the TV.
    REMOVE THE TV
  2. Remove securement screw 12.
  3. Pull down on the release cord R to release the TV.
  4. Carefully lift the TV from arm assembly 11.

REMOVE THE ARM ASSEMBLY
REMOVE THE ARM ASSEMBLY

Troubleshooting

If you are uncertain about your hardware selection, contact Customer Service

TV supplied spacers

  1. Use your TV supplied spacer/adapter for flat back TVs (AND you want your TV closer to the wall).


    Avoid potential injury or property damage! Use the correct screw length for adequate thread engagment.
  • Too short will not hold the TV.
  • Too long will damage the TV.
  1. Use your TV supplied spacer/adapter and spacer 03 for:
  • Round (irregular) back TVs
  • Extra space needed for cables


Avoid potential injury or property damage! Use the correct screw length for adequate thread engagment.

  • Too short will not hold the TV.
  • Too long will damage the TV.

IMPORTANT SAFETY INSTRUCTIONS

PLEASE READ MANUAL PRIOR TO USE – SAVE THESE INSTRUCTIONS

Please read through these instructions completely to be sure you're comfortable with this easy install process.

Check your TV owner's manual to see if there are any special requirements for mounting your TV.

If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact Customer Service: +1 (800) 359-5520.


Avoid potential personal injuries and property damage!
  • This product is designed ONLY to be installed into wood studs, solid concrete or concrete block. — DO NOT INSTALL INTO DRYWALL ALONE — DRYWALL ALONE WILL NOT HOLD THE WEIGHT OF YOUR TV.
  • This product is designed for INDOOR USE ONLY.
  • The wall must be capable of supporting five times the weight of the TV and mount combined.
  • Do not use this product for any purpose not explicitly specified by manufacturer.
  • Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.

TV Weight Limit (including accessories) 125 lbs.
DO NOT EXCEED

If your TV (including accessories) exceeds this weight, this mount is NOT compatible.
Visit SANUS.com or call customer service to find a compatible mount.
