ADDER ADDERView CCS-MV4228 Quick Start

Specifications
• Dimensions: 17.28"/439mm(w), 2.28"/58mm(h), 9.33"/237mm(d)
• Weight 3.8kg/8.38lbs
• Power input 12VDC, 36W maximum
• Operating temperature: 32 O to 104
• Humidity 0-80% RH, non-condensing
www.adder.com
© 2023 Adder Technology Limited • All trademarks are acknowledged.
Part No. MAN-QS-000077_V1.0
O F (0 O to 40 O C)
ADDERView
Welcome
This quick start guide covers some of the key points of the ADDERView CCS-MV4228. Please read the
supplied safety instruction leaflet before use.

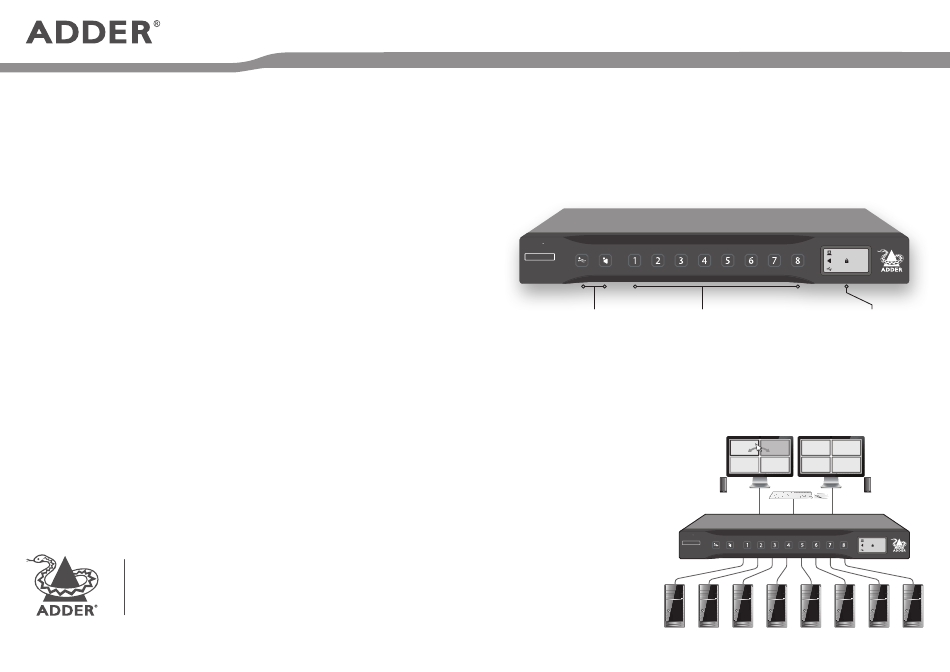

The ADDERView CCS-MV multi-viewer switch allows you to work simultaneously across eight
computers while viewing all of their screen outputs combined onto either one or two high resolution
video displays. As you press a front panel or move your mouse between screen outputs, your common
peripherals will switch to control the appropriate computer.
ADDERView
C C S - M V
4 2 2 8
USB and Audio Computer channel
hold buttons
Allows you to Press a button to connect
maintain USB or the console peripherals to
audio connections the corresponding computer.
with one computer An indicator will illuminate
while working with on the selected button.
another.
The ADDERView CCS-MV multi-
viewer switch can operate with either
a single or dual video screen setup
and you can configure exactly how
the outputs of the eight computers
are distributed on them.
The video links to each computer,
as well as the two video displays,
are via ports that accept either
DisplayPort™ or HDMI ® connections.
The ADDERView CCS-MV supports
both standard and Super Speed USB
(version 3.0) connections.
1
CCS-MV4228
™
8-Port Multi-Viewer Switch
Quick Start
1
LONDON
2
1
Display screen
buttons Provides status
information related to
the current operations.
1 2 5 6
3 4 7 8
ADDERView
C C S - M V
4 2 2 8
2 3 4 5 6
1
LONDON
2
1
7 8
