ISL75051ASEHEV1Z
ISL75051ASEH
is a high-performance, adjustable,
low-voltage, high-current, low-dropout linear regulator
specified at 3A rated output current for input voltages
from 2.2V to 6V. The LDO outputs can be adjusted
from 0.8V to 5V using two preset resistors.
The ISL75051ASEHEV1Z evaluation board provides
a simple platform to evaluate the performance of the
ISL75051ASEH. The same board can be used to
evaluate the
ISL73051ASEH
offered with different radiation assurance screening.
The device output voltage is adjustable, and jumpers
are provided to easily set popular output voltages.The
device output voltage is adjustable, and jumpers are
provided to easily set popular output voltages.
What's Inside
The evaluation kit contains the following:
▪ ISL75051ASEHEV1Z evaluation board
▪ ISL75051ASEH datasheet
▪ This user manual
UG148 Rev.1.00
Jan 23, 2023
which is the same die
EN
EN
ROCP
OCP
VIN
ISL75051ASEH
VIN
PG
220µF
0.1µF
VIN
Figure 1. ISL75051ASEHEV1Z Simplified Schematic
Key Features
▪ TID, ELDRS, and SEE Rated
▪ Very fast load transient response
▪ ±2.0% guaranteed V
and temperature
▪ Typical dropout of 287mV at 3A
▪ EN, PG, and OCP features
▪ Short-circuit and over-temperature protection
Specifications
▪ V
= 2.2V to 6.0V
IN
▪ Temperature range: -55°C to 125°C
Related Literature
For a full list of related documents, visit our website
▪
ISL75051ASEH
pages
BYP
ADJ
VOUT
R
1
GND
R
PG
2
Evaluation Board Manual
accuracy over line, load,
OUT
and
ISL73051ASEH
0.1µF
VOUT
0.1µF 220µF
2.67k
4.7nF
100pF
© 2017-2023 Renesas Electronics
product
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ISL75051ASEHEV1Z and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Intersil ISL75051ASEHEV1Z

Summary of Contents for Intersil ISL75051ASEHEV1Z

  • Page 1 0.8V to 5V using two preset resistors. and temperature The ISL75051ASEHEV1Z evaluation board provides ▪ Typical dropout of 287mV at 3A a simple platform to evaluate the performance of the ▪ EN, PG, and OCP features ISL75051ASEH.

  • Page 2: Table Of Contents

    ISL75051ASEHEV1Z Schematic ........

  • Page 3: Functional Description

    ISL75051ASEHEV1Z Evaluation Board Manual Functional Description Use the following information to optimize the performance of the ISL75051ASEH. Operating Range ▪ V = 2.2V to 6.0V Quick Start Guide 1. Configure the EN pin. Shorting JP11 disables the part, while leaving it open enables the LDO.

  • Page 4: Input And Output Capacitor Selection

    6mΩ to 100mΩ. At the lower limit of ESR = 6mΩ, the phase margin is about 51°C. On the high side, an ESR of 100mΩ is found to limit the gain margin at around 10dB. The typical GM/PM seen on the ISL75051ASEHEV1Z evaluation board for V = 3.3V, V...

  • Page 5: Board Design

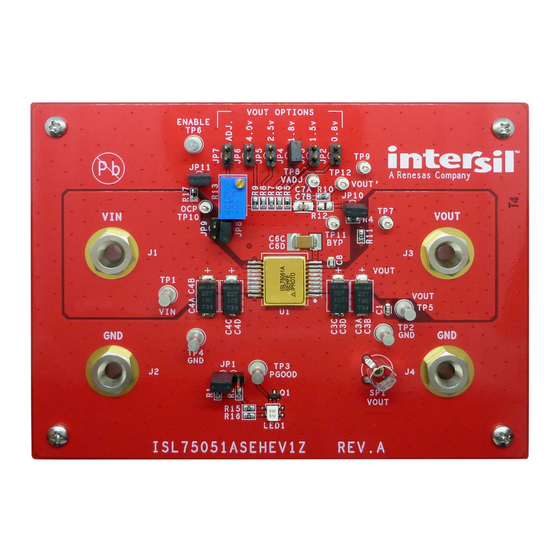

    ISL75051ASEHEV1Z Evaluation Board Manual Board Design Figure 3. ISL75051ASEHEV1Z Evaluation Board, Top Figure 4. ISL75051ASEHEV1Z Evaluation Board, Bottom UG148 Rev.1.00 Page 5 Jan 23, 2023...
