ISL78171EVAL1Z Evaluation Board User Guide
Description
This quick start guide pertains to the ISL78171EVAL1Z
Evaluation Board. This board is populated with 60 LEDs in
6P10S (six parallel strings, each string consisting of 10 LEDs in
series) configuration to simplify evaluation and testing. The
device can function with or without an I
2
required to use I
C control for the ISL78171EVAL1Z board, use
2
a generic I
C interface adapter (not supplied with the
evaluation board kit) for the purpose of communication.
Please note that the slave address on the
hexadecimal 58. Please refer to the quick setup guides for
jumper settings and power-up instructions.

Specifications

This board has been configured and optimized for the following
operating conditions:
• Input voltage: 4.5V to 26.5V
• Output voltage: 32V typical and 40V max
• LED string current 20mA typical
PCB Details
Board dimension = 5.525x2.550inch
Number of layers = 2
Type = FR4
Copper thickness = 2oz
June 15, 2015
UG035.0
2
C controller. If it is
ISL78171
is

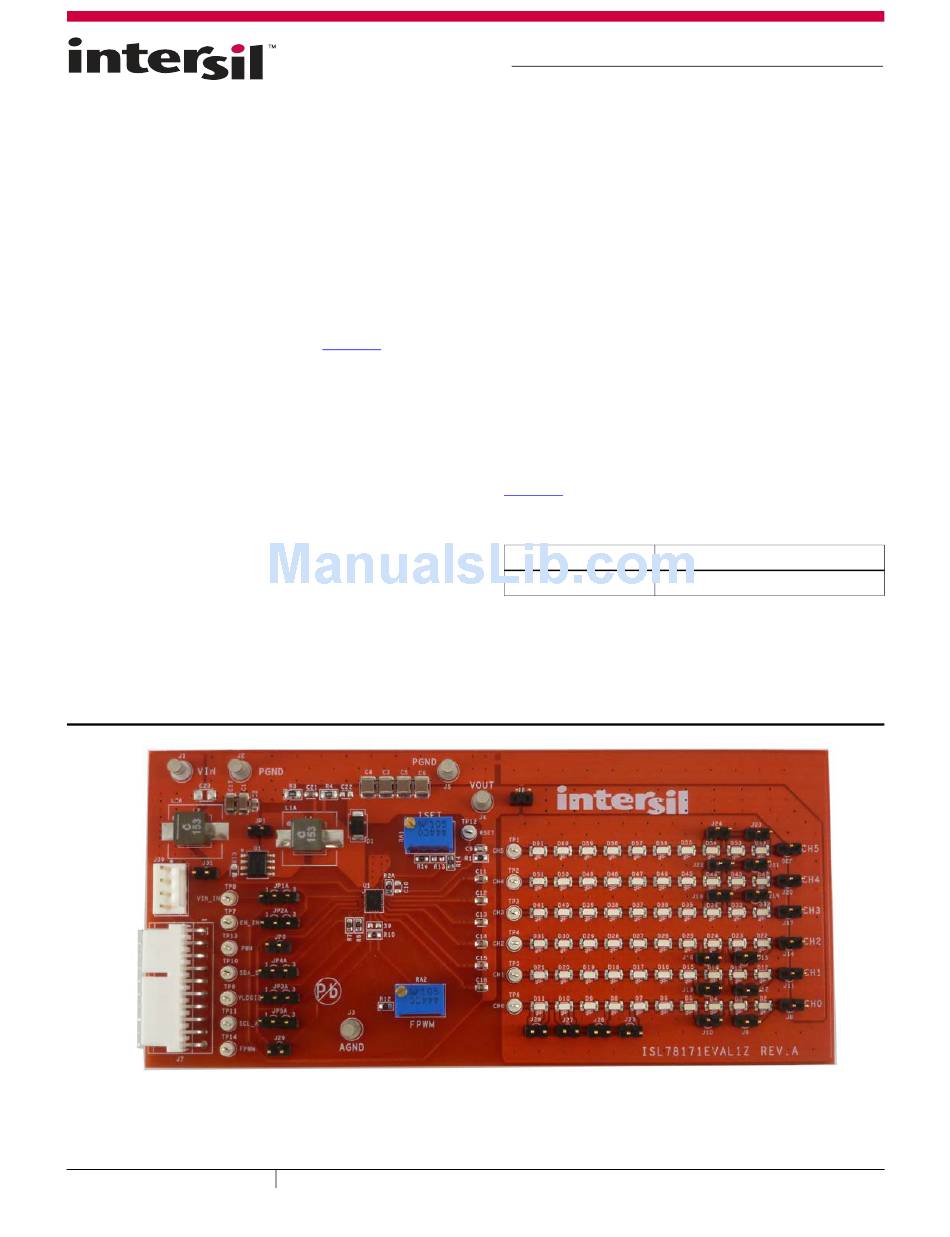

FIGURE 1. ISL78171EVAL1Z FRONT SIDE
1
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 1-888-468-3774

Key Features

• Integrated 40V boost converter
• 6 Precision current sinks, up to 50mA each
• Current matching ±0.7% typical
• Dimming modes: DC, internal PWM, direct PWM,
DC + Int/Dir PWM
• Typical dimming ratio exceeding 60,000:1 for DC + Int/Dir
PWM
• Phase shift control for internal PWM dimming
• 600kHz/800kHz/1.2MHz I
frequency
• Dynamic headroom control
References
ISL78171
Datasheet

Ordering Information

PART NUMBER
ISL78171EVAL1Z
|
Copyright Intersil Americas LLC 2015. All Rights Reserved
Intersil (and design) is a trademark owned by Intersil Corporation or one of its subsidiaries.
All other trademarks mentioned are the property of their respective owners.
User Guide 035
2
C selectable switching
DESCRIPTION
ISL78171 Evaluation Board

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ISL78171EVAL1Z and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Intersil ISL78171EVAL1Z

  • Page 1: Key Features

    CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures. 1-888-INTERSIL or 1-888-468-3774 Copyright Intersil Americas LLC 2015. All Rights Reserved UG035.0 Intersil (and design) is a trademark owned by Intersil Corporation or one of its subsidiaries. All other trademarks mentioned are the property of their respective owners.
  • Page 2: Recommended Equipment

    Figure 6 on page 11. For I C/SMBUS and DPST mode, connect the I C interface board to the ISL78171EVAL1Z board. Submit Document Feedback UG035.0 June 15, 2015...
  • Page 3: Emi Considerations

    User Guide 035 SCHOTTKY DIODE, 60V, 3A L=15 = 4.5V TO 26.5V 40V, 6 x 50mA* FAULT ISL78171 FAULT/STATUS REGISTER OSC AND  RAMP DRIVER COMP LOGIC IMAX ILIMIT FPWM PGND LED PWM CONTROL COMP HIGHEST VF OC, SC STRING REFERENCE DETECT DETECT...
  • Page 4 ISL78171EVAL1Z Layout FIGURE 3. SILKSCREEN TOP...
  • Page 5 ISL78171EVAL1Z Layout (Continued) THIS TRACE IS A SHIELD DRAIN CONNECTION FIGURE 4. TOP LAYER...
  • Page 6 ISL78171EVAL1Z Layout (Continued) FIGURE 5. BOTTOM LAYER...
  • Page 7 ISL78171EVAL1Z Layout (Continued) FIGURE 6. SILKSCREEN BOTTOM...
  • Page 8 ISL78171EVAL1Z Evaluation Board Schematic 4.99 OPEN BOOST_VIN VOUT 15UH 15UH PMEG6030EP XAL6060-153ME XAL6060-153ME J31A PGND PGND AGND FDS4435BZ_F085 0.033UF 4.99 220PF JP1A VIN_IN RSET 0.10UF EN_IN JP2A FAULT FAULT VLOGIC JP3A ISL78171IRZ SDA_IC SMBDAT /SDA SDA_S TP10 J39-1 JP4A TP14...
  • Page 9 ISL78171EVAL1Z Evaluation Board Schematic (Continued) VOUT DRAWN BY: DATE: TIM KLEMANN 05/05 RELEASED BY: DATE: UPDATED BY: DATE: FILENA FIGURE 8. SCHEMATIC (PAGE 2)
  • Page 10: Bill Of Materials

    REFERENCE MANUFACTURER PART UNITS DESIGNATOR DESCRIPTION MANUFACTURER ISL78171EVAL1ZREVAPCB PWB-PCB, ISL78171EVAL1Z, REVA, ROHS IMAGINEERING INC 06031A101JAT2A CAP, SMD, 0603, 100pF, 100V, 5%, NP0, ROHS AVX 06033A391FAT2A CAP, SMD, 0603, 390pF, 25V, 1%, C0G, ROHS C0603C33K3RACAUTO CAP-AEC-Q200, SMD, 0603, 0.033µF, 25V, 10%,...
  • Page 11 DO NOT POPULATE OR PURCHASE AUTO-AEC-Q200) Intersil Corporation reserves the right to make changes in circuit design, software and/or specifications at any time without notice. Accordingly, the reader is cautioned to verify that the document is current before proceeding. For information regarding Intersil Corporation and its products, see www.intersil.com Submit Document Feedback UG035.0...
  • Page 12: Typical Performance Curves

    User Guide 035 Typical Performance Curves 26.5V 26.5V 0.02 0.04 0.06 0.08 0.10 0.12 0.14 0.16 0.18 0.20 0.02 0.04 0.06 0.08 0.10 0.12 0.14 0.16 0.18 0.20 LED CURRENT (A) LED CURRENT (A) FIGURE 9. EFFICIENCY vs LED CURRENT AT LX FIGURE 10.
  • Page 13 User Guide 035 Typical Performance Curves (Continued) 26.5V -40°C +25°C +105°C 0.02 0.04 0.06 0.08 0.10 0.12 0.14 0.16 0.18 0.20 LED CURRENT (A) FIGURE 15. EFFICIENCY vs LED CURRENT AT LX FIGURE 16. EFFICIENCY VS INPUT VOLTAGE AT LX FREQUENCY = 1.2MHz AT +105°C vs V FREQUENCY = 1.2MHz vs V +25°C,...
