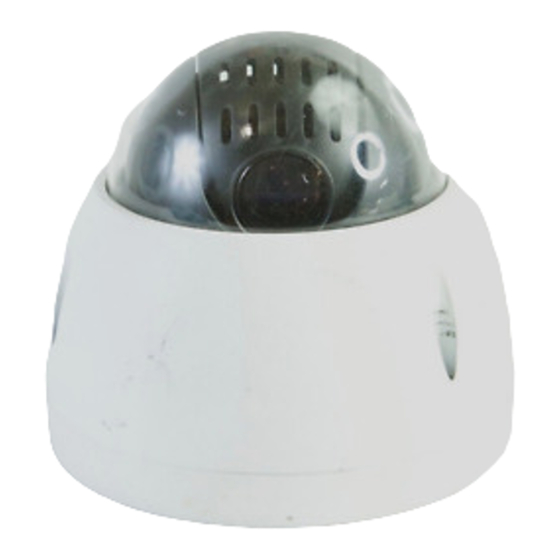

ICRealtime PTZ-N23X4-S User Manual

4-inch analog speed dome
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
4-inch Analog Speed Dome
User's Manual
Version 1.0.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PTZ-N23X4-S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ICRealtime PTZ-N23X4-S

Summary of Contents for ICRealtime PTZ-N23X4-S

  • Page 1 4-inch Analog Speed Dome User’s Manual Version 1.0.0...

  • Page 2: Table Of Contents

    Table of Contents FEATURES AND FUNCTIONS ..................1 General Introduction..............................1 Features ..................................1 1.2.1 On-Screen Menu..............................1 1.2.2 Proportional Pan and Tilt ............................1 1.2.3 On-screen Tips...............................1 1.2.4 Preset Setup and Call ............................1 1.2.5 Auto Scan................................1 1.2.6 Auto Tour ................................1 1.2.7 Auto Pattern................................1 1.2.8 Privacy Masking ..............................1 1.2.9 Auto Flip ..................................1...
  • Page 3 Dome Abnormal Phenomenon Operation ......................16 2.5.1 Restore to Factory Default Setup ........................16 2.5.2 PTZ Movement is not smooth ..........................16 CABLE CONNECTION .....................17 System Layout ................................17 3.1.1 System Connection .............................17 3.1.2 Alarm Connection ..............................18 FAQ...........................19 Daily Maintenance ..............................19 Problems and Solutions ............................19 APPENDIX Ⅰ...
  • Page 4 Welcome Thank you for purchasing our product! This user’s manual is designed to be a reference tool for the operation of your system. Here you can find information about this speed dome features and functions, as well as a detailed menu tree. Please keep it well for future reference! Before installation and operation, please read the following safeguards and warnings carefully!
  • Page 5 Important Safeguards and Warnings 1．Electrical safety All installation and operation here should conform to your local electrical safety codes. The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited power source is rated 12V DC or 24V AC in the IEC60950-1. We assume no liability or responsibility for all the fires or electrical shock caused by improper handling or installation.
  • Page 6 If there is too much dust, please use the water to dilute the mild detergent first and then use it to clean the device. Finally use the dry cloth to clean the device. 6. About Accessories Always use all the accessories recommended by manufacturer. Before installation, please open the package and check that all the components are included in the package: Contact you local retailer ASAP if something is missing in your package.

  • Page 7: Features And Functions

    1 Features and Functions 1.1 General Introduction The 4-inch analog intelligent speed dome is a product of general high level of integration and intelligence. Its structure adopts the new design and is easy to install. It has no effect on the monitor environment. It is featuring clear video, intelligent and etc.

  • Page 8: Self-Diagnosis

    As long as you continue to hold the keyboard joystick in the down position, the dome rotates 180 degrees and repositions itself for uninterrupted viewing of any subjects that passes directly beneath the dome. 1.2.10 Self-diagnosis There is a self diagnosis procedure when dome boots up. Tilt and vertical engine check Camera diagnosis 1.2.11 Day/Night Mode (B/W &...

  • Page 9: Menu

    2 Menu 2.1 Screen Menu Index Note: ERR means current setup is invalid. … means there is submenu. SYSTEM INFORMATION… SYSTEM ADDR INFORMATION… INFORMATION SET NORTH LANGUAGE ：ENGLISH FACTORY DEFAULT RESTART BACK EXIT DISPLAY SETTING PRESET TITLE : ON (ON/OFF) AZIMUTH DISP : ON (ON/OFF) POSITION : OFF (ON/OFF)

  • Page 10: Self-Diagnosis System Information

    The above diagram illustrates the overall structure of the speed dome setup menu. Note: ERR means current setup is invalid. Please restore factory default setup. Please make sure all the cable connections are right. 2.2 Self-diagnosis System Information ADDR ：001-H BAUD RATE ：9600 PARITY...

  • Page 11: System Information

    In the speed dome main menu, you can use the left/right button on the keyboard or in the speed dome terminal menu to configure the system menu. Before setup, please move the cursor to the current item you want to configure. In main menu, please click confirm button to go to the sub menu or use left/right key to configure setup.

  • Page 12: Display Setting

    ADDR TYPE: There are two options: soft and hard. Please use the left/right button on the keyboard or in the speed dome terminal menu to set. ADDR-HARD: It is an address you set in the dial switch. You can not modify it through software. ADDR-SOFT: You can set address via software.
  • Page 13 WHITE BALANCE SETUP: Move the cursor to current option and then click confirm button, you can go to the third menu. EXPOSURE SETTING: Move the cursor to current option and then click confirm button, you can go to the third menu. DAY/NIGHT: Set day/night mode.
  • Page 14 AE MODE : AUTO AGC GAIN LIMIT GAIN SETTING SLOW SHUTTER LIMIT : 1/25 SHUTTER : 1/50 NOISE REDUCTION IRIS SETTING 3D NOISE REDUCTION EXPOSURE COMP : OFF SLOW AE WDR ENABLE SLOW SHUTTER : ON AE RESUME TIME : 15MIN NEXT PAGE BACK EXIT...
  • Page 15 the contrast between the strong light and the dark light is too high. Move the cursor to current item and then click the OK button to go to the fourth level menu. Please use the left/right button on the keyboard or in the speed dome terminal menu to set. AE resume time: Manually click the “+”...

  • Page 16: Function Setting

    2.4.3.6 Next Page Move the cursor to NEXT PAGE and then click confirm button, you can go to the submenu. DIGITAL ZOOM : OFF PICTURE FLIP : OFF FREEZE FUNC : OFF CAMERA FACTORY DEFAULT CAMERA RESTATRT BACK EXIT DIGITAL ZOOM: You can use the left/right button to enable/disable the digital zoom function. PICTURE FLIP: There are two options: on/off.
  • Page 17 2.4.4.1 Preset Setup PRESET NO ：001 TITLE ：PRESET001 SETTING CALL BACK EXIT Move the cursor to PRESET button and then click confirm button to go to set interface. PRESET NO: Please use left/right key to modify preset number. The different protocols support different preset values.
  • Page 18 SCAN NO ： 001 SET LEFT LIMIT SET RIGHT LIMIT SCAN SPEED ：5 STOP BACK EXIT Move the cursor to SCAN button and then click confirm button. SCAN NO：Here is to set auto scan number. Please use the left/right button on the keyboard or in the speed dome terminal menu to set.
  • Page 19 tour. Click confirm button you can exit the setup. After you completed the setup, move the cursor to back button to go to the previous interface. DELETE TOUR：Here is to delete a tour. Input tour number in TOUR NO and then move the cursor to DELETE TOUR, click confirm button to delete.
  • Page 20 IDLE FUNC ：OFF IDLE TIME ：10MIN IDLE ACTION ：NONE PARAMETER ：NONE BACK EXIT When there is no available command for specified time, dome automatically goes on the previous set functions. IDLE FUNCTION ：There are two modes ON/OFF. Please use left/right key to set. IDLE TIME: System idle period.
  • Page 21 BACK: Go back to the previous menu. EXIT: Log out the system menu. Privacy Mask Move the cursor to PRIVACY MASK and click confirm button, system goes to privacy mask setup interface. PRIVACY RESIZE ACTIVATE : OFF SAVE SETTING BACK EXIT BACK EXIT...

  • Page 22: Alarm Setup

    option includes: NONE/AUTO/SCAN/PRESET/PATTERN/TOUR and etc. Please use the left/right button to set. PARAMTER: Here you can set the serial number of the corresponding operation such as the scan, preset, pattern, tour. Please use the left/right button to set. BACK: Go back to the previous menu. EXIT: Log out the system menu.

  • Page 23: Cable Connection

    3 Cable Connection The speed dome combination cable includes video cable connection port, RS485 connection port, alarm input and output port, and power cable connection port. Please refer to the label for detailed information. Slight difference may be found in the port amount since some functions are optional. Name Function POWER...

  • Page 24: Alarm Connection

    Figure 3-1 Note: Please use shielded twisted pair. The shielded layer shall connect to GND firmly; otherwise it may affect communication or video work. 3.1.2 Alarm Connection Please refer to Figure 3-2 for alarm connection information. Figure 3-2...

  • Page 25: Faq

    4 FAQ 4.1 Daily Maintenance Please clean dome cover regularly to get vivid image. Handle the cover with care. Use water to wash. Don’t use cloth to clean. Use mild detergent to clean if there is too much dust. Note: The sweat from your hand may erode plating surface, your nail may scrape dome cover result in blur image.

  • Page 26: Appendix Ⅰ Thunder Proof And Surge Protection

    5 Appendix Ⅰ Thunder Proof and Surge Protection This series speed dome adopts TVS lighting protection technology. It can effectively prevent damages from various pulse signals below 1500W, such as sudden lighting and surge. While maintaining your local electrical safety code, you still need to take necessary precaution measures when installing the speed dome in the outdoor environment.

  • Page 27: Appendix 2 Toxic Or Hazardous Materials Or Elements

    6 Appendix 2 Toxic or Hazardous Materials or Elements Toxic or Hazardous Materials or Elements Component Name Cr VI PBDE Sheet Metal ○ ○ ○ ○ ○ ○ Plastic Parts ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○...
  • Page 28 Note • This manual is for reference only. Slight difference may be found in the user interface. • All the designs and software here are subject to change without prior written notice. • All trademarks and registered trademarks mentioned are the properties of their respective owners.
