Summary of Contents for ICRealtime IPMX-E20F-IRB1

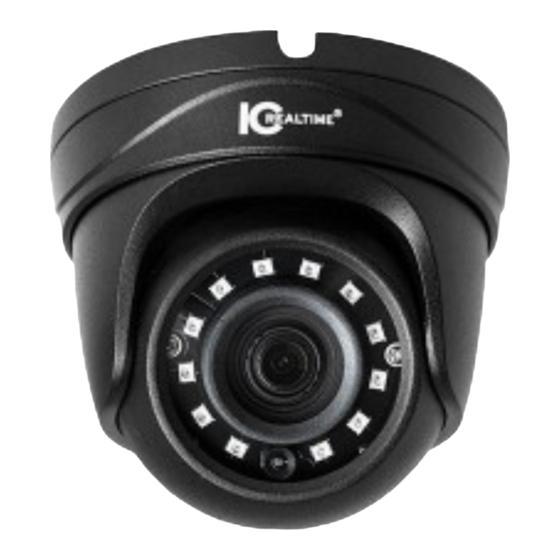

- Page 1 HD IR Waterproof Network Dome Camera User’s Manual Version 3.5.1...
- Page 2 Welcome Thank you for purchasing our Network camera! This user’s manual is designed to be a reference tool for your system. Please read the following safeguard and warnings carefully before you use this series product! Please keep this user’s manual well for future reference!
- Page 3 Important Safeguards and Warnings Electrical safety All installation and operation here should conform to your local electrical safety codes. The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited power source is rated 12V DC in the IEC60950-1.This series product supports PoE too. Please note: Do not connect these two power supplying sources to the device at the same time;...
- Page 4 Do not touch the CCD (CMOS) optic component. You can use the blower to clean the dust on the lens surface. Always use the dry soft cloth to clean the device. If there is too much dust, please use the water to dilute the mild detergent first and then use it to clean the device.
-
Page 5: Table Of Contents
Table of Contents General Introduction......................1 Overview ........................1 Features ........................1 Specifications ......................2 Factory Default Setup ....................3 Structure ..........................Components ......................8 Framework and Dimension ..................8 Device Installation ....................... 10 Installation Steps....................10 Restore Factory Default Setup Introduction ............12 Quick Configuration Tool .................... -
Page 6: General Introduction
1 General Introduction Overview This series network camera integrates the traditional camera and network video technology. It adopts video data collection, transmission together. It can connect to the network directly without any auxiliary device. This series network camera uses standard H.264 video compression technology, which maximally guarantees the video quality. -
Page 7: Specifications
1.3 Specifications Please refer to the following sheet for network camera performance specification. Model IPMX-E20F-IRB1 Parameter Main Processor TI Davinci high performance DSP Embedded LINUX System System Support real-time network, local record, and remote operation Resource at the same time. -
Page 8: Factory Default Setup
Weight 280g(Excluding box) Installation Fixed on the wall, ceiling and etc. 1.4 Factory Default Setup Please refer to the following sheet for factory default setup information. Default Setup Setup Item IPMX-E20F-IRB1 Brightness Contrast Sharpness Saturation Anti-flicker Outdoor Gain Mode Auto... - Page 9 Default Setup Setup Item IPMX-E20F-IRB1 Bit Rate 8192 I Frame interval Watermark Enable Watermark DigitalCCTV character Enable Enable Bit stream General type Encode H.264B mode Resolution CIF(352*288) PAL: 25 Frame NTSC:30 Rate(FPS) Stream Bit Rate Type Recommen-d 192-1024Kb/S ed Bit...
- Page 10 Default Setup Setup Item IPMX-E20F-IRB1 Preferred 8.8.8.8 Alternate 8.8.8.8 Enable ARP/Ping set device address service Enable Max Connection TCP Port 37777 UDP Port 37778 Connection HTTP Port RTSP Port Enable HTTP Disable HTTPs Port Enable Disable Username none PPPoE Password Server Type Disable，ICDDNS...
- Page 11 Default Setup Setup Item IPMX-E20F-IRB1 Attachment Mail Receiver 0 seconds Email Test Disable，interval=60 seconds UPnP Enable UPnP Disable SNMP Port Read public Community Write private Community SNMP Trap Address Trap Port SNMP v1:Disable SNMP SNMP v2:Disable Version SNMP v3:Disable Enable...
- Page 12 Default Setup Setup Item IPMX-E20F-IRB1 Remote path share Emergency Disable (Local) Pack Duration 8 minutes Record Pre-record 5 seconds Control Disk Full Overwrite Record Mode Auto Bit Stream Main Stream Device No Device MAC address General System Language English Local Host...
-
Page 13: Structure
2 Structure Components You can refer to the following figure for multiple-function combination cable information. See Figure Figure 2-1 Please refer to the following sheet for detailed information. Component Component Name Component 1 Device lens Component 2 Dome body Component 3 Dome enclosure Port Name... - Page 14 Please refer to the following two figures for dimension information. The unit is mm. See Figure 2-2 Figure 2-3. Figure 2-2 Figure 2-3...
-
Page 15: Device Installation
3 Device Installation Installation Steps Important Before the installation, please make sure the installation environments can at least support 3x weight of the camera. Please follow the steps listed below to install the device. Please refer to Figure 3-1 for reference. Step 1 Turn clockwise to remove the decoration ring from the snap joints. - Page 16 Figure 3-2 Note This series product supports two cable exits. One is from the bottom and the other is from the side. Please refer to the following figure for cable exit from the side information. Figure 3-3 Please earth the GND port of the device to enhance the device reliability. The GND port is near the cable exit port on the rear of the dome.
-
Page 17: Restore Factory Default Setup Introduction
Figure 3-4 3.2 Restore Factory Default Setup Introduction Important Please use RESET button when device is running. Step1 Please refer to step1 and step2 in chapter 3.1to loose the dome body. Push a little bit; you can take the dome body from the gland cover. Step2 Take the dome body out and then turn the top cover hard to remove. -
Page 18: Quick Configuration Tool
4 Quick Configuration Tool Overview Quick configuration tool can search current IP address, modify IP address. At the same time, you can use it to upgrade the device. Please note the tool only applies to the IP addresses in the same segment. Operation Double click the “ConfigTools.exe”icon, you can see an interface is shown as in Figure 4-1. - Page 19 In the configuration tool search interface (Figure 4-1), please select a device IP address and then double click it to open the login interface. Or you can select an IP address and then click the Login button to go to the login interface. See Figure 4-3. In Figure 4-3, you can view device IP address, user name, password and port.
-
Page 20: Web Operation
5 Web Operation This series network camera product supports the Web access and management via PC. Web includes several modules: monitor channel preview, system configuration, alarm and etc. Network Connection Please follow the steps listed below for network connection. ● Make sure the network camera has connected to the network properly. - Page 21 Figure 5-2 If it is your first time to login in, system pops up warning information to ask you whether install control webrec.cab or not after you logged in for one minute. Please click OK button, system can automatically install the control. When system is upgrading, it can overwrite the previous Web too. If you can’t download the ActiveX file, please check whether you have installed the plug-in to disable the control download.
-
Page 22: Faq
6 FAQ I can not boot up Please click RESET button for at least five seconds to restore the device or factory default setup. operate properly. The water leakage The unauthorized front or rear cap remove many result in water occurred. -
Page 23: Appendix Toxic Or Hazardous Materials Or Elements
Appendix Toxic or Hazardous Materials or Elements Toxic or Hazardous Materials or Elements Component Name Cr VI PBDE Circuit Board ○ ○ ○ ○ ○ ○ Component Device Case ○ ○ ○ ○ ○ ○ Wire and Cable ○ ○ ○...
