INIM FireVibes WD200 Manual

GENERAL DESCRIPTION
The WD200 Fire Vibes series detector samples the environmental temperature in the protected area; when the environmental temperature
level or variation rate exceeds a certain degree, a fire alarm message is sent to the control panel.
WD200 is battery powered and doesn't need any system cabling installation.
WD200B is a black version of WD200. All pictures here below showing the white version are also valid for the black version.
3 2
1 1 4
5
1) LED indicators
2) Battery A
3) Battery B
11
4) Link program switch
5) Tamper spring (internal)
10
6) Tamper switch (external)
7) Battery cover
8) Battery cover latch
9) Insulating tab
10) Wall fixing openings
11) Identification tag
12) Identification tag lodgement
13) Magnet test area
14) Base / detector reference marks
15) Safety screw
DEPLOYMENT PROCEDURE
1) Select a location for the detector. See LOCATION SELECTION.
2) Unbox the detector from its packaging.
3) Detach the detector from its base. See INSTALLING / REMOVING THE DETECTOR.
4) Detach the battery cover from the detector. See BATTERY COVER.
5.1) a) Link the detector to the system (insulating tab extraction).
See LINKING - WAKE-UP - WITH INSULATING TAB.
See LINKING - ONE-BY-ONE - WITH INSULATING TAB.
5.2) a) Power up the detector.
See POWERING UP - FIRST TIME USE - WITHOUT INSULATING TAB.
See POWERING UP - RECOVERY.
b) Link the detector to the system (moving the link program switch).
See LINKING - WAKE-UP - WITHOUT INSULATING TAB.
See LINKING - ONE-BY-ONE - WITHOUT INSULATING TAB.
6) Reinstall the battery cover on the detector. See BATTERY COVER.
7) Detach the identification tag from the base adapter. See IDENTIFYING THE DETECTOR.
8) Install the base adapter. See FIXING THE ADAPTOR BASE.
9) Install the detector on the base adapter. See INSTALLING / REMOVING THE DETECTOR.
10) Install the identification tag to the base adapter, with all relevant information written / labelled on it. See IDENTIFYING THE DETECTOR.
11) Secure the detector to its base with its safety anti-tamper screw. See INSTALLING THE SAFETY SCREW.
12) Test the detector. See TESTING.
LOCATION SELECTION
Select a location for the detector that conforms to your local applicable safety standards and that is in a good position for sending / receiving
wireless signals to / from the father EWT100, IWT100 or XWT100 network device.
Mount the detector as far as possible from metal objects, metal doors, metal window openings, etc. as well as cable conductors, cables
(especially from computers), otherwise the operating distance may greatly drop.
The WD200 must NOT be installed near electronic devices and computer equipment that can interfere with its wireless communication quality.
It is advisable to use the EWT100-TESTER survey
kit to locate a good wireless installation location.
INIM ELECTRONICS S.R.L. VIA DEI LAVORATORI 10, FRAZIONE CENTOBUCHI, 63076 MONTEPRANDONE, ITALY
WD200
Wireless Heat Detector
6
7
8
12
10
13
14
-- or --
BATTERY COVER
Detach the battery cover by pulling and lifting the closing latch.
To reinstall the battery cover, insert its two hooks into their corresponding
detector's recesses; then block it by pressing down the opposite side, until you
hear the click of the closing latch.
INSTALLING / REMOVING THE DETECTOR
Rotate the detector clockwise on its adaptor base to install it.
Rotate the detector anti-clockwise from its adaptor base to remove it.
IDENTIFYING THE DETECTOR
The detector can be visually identified by the detachable tag imprinted with the adaptor base.
9
1) Detach the tag from the base.
2) Write / label the relevant identification information on the tag.
3) Insert the tag into its lodgement on the side of the adaptor base.
FIXING THE ADAPTOR BASE
Fix the base to the wall with suitable screws.
INSTALLING THE SAFETY SCREW
Always install the safety blocking screw.
LED INDICATORS STATUS MESSAGES
The two LED indicators communicate to the final user the status of the WD200.
Device status
Power up (DIP on "ON")
15
Power up (DIP opposite "ON")
Entering wake-up mode
Link success (one-by-one)
Link failure (one-by-one)
Link success (wake-up)
Link failure (wake-up)

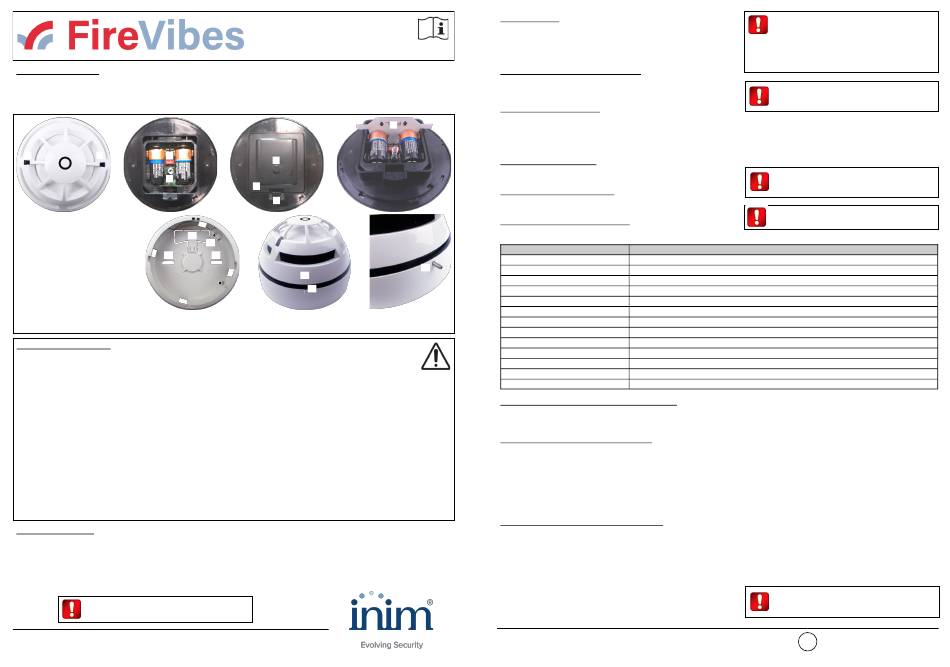

Picture 1
Normal condition
Alarm activation
Battery fault
Tamper fault
Replaced
Test mode active
POWERING UP AND LINKING - PRELIMINARY NOTES
WD200 needs to be powered up with the supplied batteries.
Linking is the operation through which WD200 is "wirelessly connected" to a EWT100, IWT100 or XWT100 Fire Vibes network device.
LINKING - WAKE-UP - WITH INSULATING TAB
"Wake-up" linking consists in associating one or more child devices to the Fire Vibes system altogether in a single operation.
Wake-up is performed either through the Fire Vibes Studio software or the EWT100 / IWT100 keyboard-screen interface; it CANNOT be
done through XWT100 devices.
1) Create the "virtual model" of the WD200 either on Fire Vibes Studio or on the EWT100 / IWT100.
2) Pull out the insulating tab.
3) Trigger the wake-up procedure either from Fire Vibes Studio or from the EWT100 / IWT100.
4) Wait the end of the "wake-up" linking procedure.
5) Check on Fire Vibes Studio or from EWT100 / IWT100 for linking success. Consult their user manual.
LINKING - ONE-BY-ONE - WITH INSULATING TAB
"One-by-one" linking consists in associating one child device at a time to the Fire Vibes system.
This operation is performed either through the Fire Vibes Studio software or the EWT100 / IWT100 keyboard-screen interface; it CANNOT be
done through XWT100 devices.
1) Create the "virtual model" of the WD200 either on Fire Vibes Studio or on the EWT100 / IWT100.
2) Trigger the linking procedure either from Fire Vibes Studio or from the EWT100 / IWT100.
3) Pull out the insulating tab.
4) Wait the end of the "one-by-one" linking procedure.
5) Check on Fire Vibes Studio or from EWT100 / IWT100 for linking success.
Consult their user manual.
info@inim.biz
Always install the battery cover, since it is a vital
part of the tamper detection feature. Make sure
the battery cover is safely fixed, blocked and
closed. Make sure that the internal tamper spring fits
completely into its battery cover's lodgement. Check,
more than once, that the cover's external tamper switch
clicks when pressed.
Check the alignment of the raised reference
marks on the detector and on the base.
Always install the safety blocking screw.
Please mind that LED signalling burns out battery
power, therefore reducing batteries lifespan.
LEDs indication
Blinks red 4 times
Blinks green 4 times
Blinks alternatively green / red 4 times
Blinks green 4 times, then the same pattern again
Enters wake-up mode and signals "Entering wake-up mode" following this failure
Blinks green 4 times, then same pattern again
Blinks green 4 times, then blinks red on once, then blinks alternatively green / red 4 times
LED off (can be programmed so as to blink green every wireless communication)
Blinks red every 2 seconds
LED off (can be programmed so as to blink amber every 5 seconds)
LED off
Blinks amber 2 times
Blinks green
When extracting the insulating tab, keep both
batteries into their lodgements with your thumb,
since they can be accidentally pulled out too.
2
