ICP DAS USA DL-110S-E User Manual

Illumination/temperature/humidity/dew point data logger
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

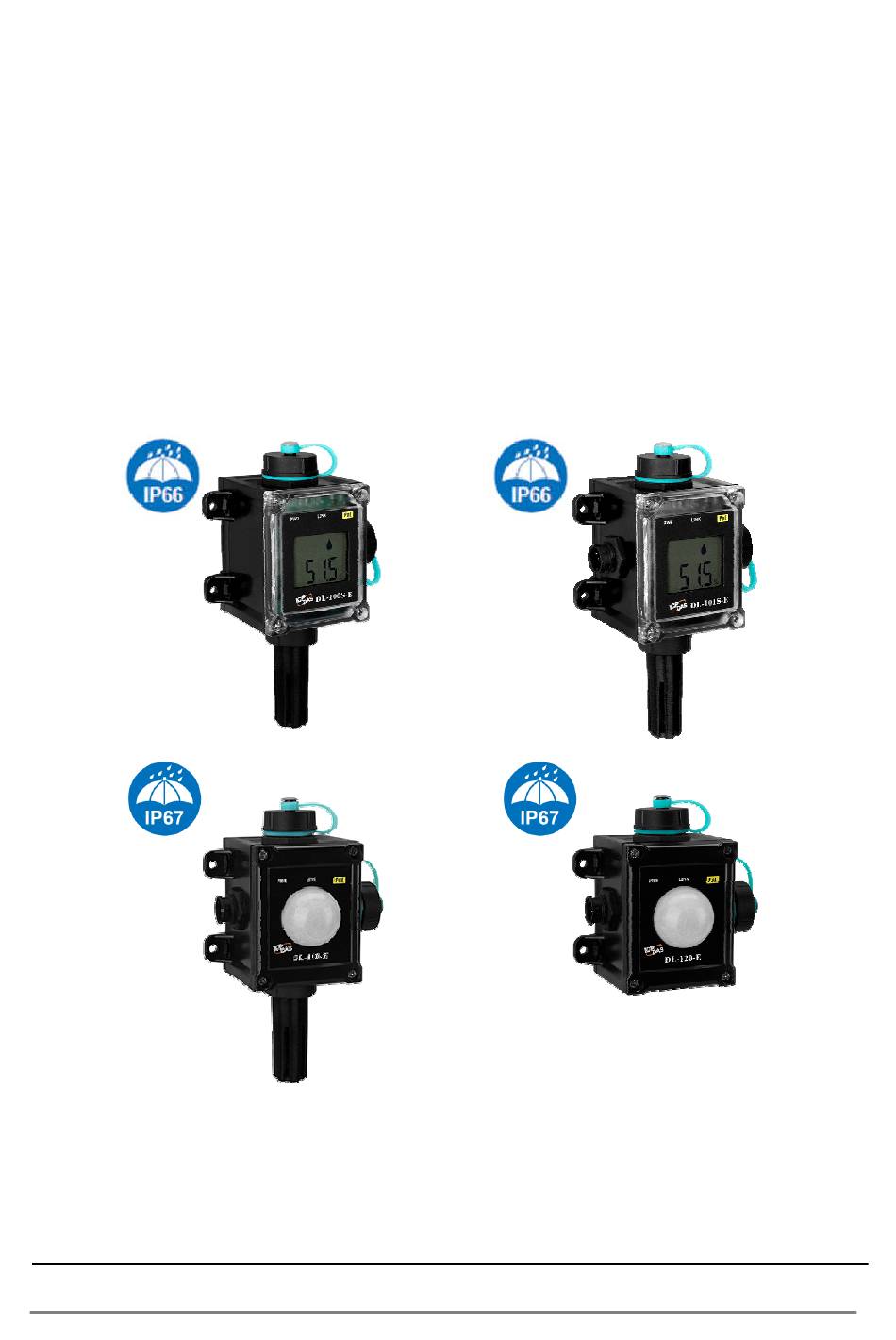

DL-100S-E/DL-101S-E
/DL-110S-E/DL-120-E
Illumination/Temperature/Humidity/Dew Point
Data Logger User Manual
Version: 1.2.0
Date: Jun 2023
DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DL-110S-E and is the answer not in the manual?

Questions and answers

Related Manuals for ICP DAS USA DL-110S-E

Summary of Contents for ICP DAS USA DL-110S-E

  • Page 1 DL-100S-E/DL-101S-E /DL-110S-E/DL-120-E Illumination/Temperature/Humidity/Dew Point Data Logger User Manual Version: 1.2.0 Date: Jun 2023 DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 1 -...
  • Page 2 Copyright © 2018 by ICP DAS. All rights are reserved. Contact Us If you have any questions, feel free to contact us via email at: Service@icpdas.com DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 2 -...

  • Page 3: Table Of Contents

    B-2. DL-101S-E Modbus Address Mappings (Base 1) .......... 61 B-3. DL-110S-E Modbus Address Mappings (Base 1) .......... 65 B-4. DL-120-E Modbus Address Mappings (Base 1) ..........69 Revision History ......................73 DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 3 -...

  • Page 4: Introduction

    Supports Web Configuration and Firmware Update via Ethernet IP 66 Protection Approval (DL-100S-E / DL-101S-E Only) IP 67 Protection Approval (DL-110S-E / DL-120-E Only) DIN-Rail or Wall Mounted DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 4 -...
  • Page 5 .CSV file that can then be imported into any industry-standard software or spreadsheet for analysis. DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 5 -...
  • Page 6 MQTT is a protocol designed for the efficient exchange of real-time data with sensor and mobile devices. It runs over TCP/IP and is in widest use on the "machine-to-machine" (M2M) and "Internet of Things" applications today DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 6 -...

  • Page 7: Hardware

    DCON, Modbus RTU Modbus TCP Protocol, Modbus TCP and MQTT and MQTT Security Password and IP Filter Yes, Module (2.3 seconds), Communication (Programmable) Dual Watchdog DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 7 -...
  • Page 8 Installation DIN-Rail or Wall mounted Environment Operating Temperature -20 to +60° C Storage Temperature -30 to +80° C Humidity 5 to 95% RH, Non-condensing DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 8 -...

  • Page 9: Appearance

    2.2 Appearance DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 9 -...
  • Page 10 The DL-100S-E series module is equipped with an RJ-45 waterproof connector that ensures the device is able to withstand potential contaminants in dusty environments. IP67 RJ45 Plug (4SASO-0001) DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 10 -...
  • Page 11 Sealing Nut Gasket Clamp Ring Seal Step 3: Wrap the Gasket around the Clamp Ring Step 4: Wrap the Lock Nut around the Clamp Ring DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 11 -...
  • Page 12 Step 8: Push the RJ-45 waterproof connector assembly forward so that it covers the RJ-45 connector Step 9: Connect the RJ-45 Cable to the COM Port on the DL-100S-E module DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 12 -...
  • Page 13 Step 10: Firmly tighten the connector to the module and ensure that it is completely connected. Connector for Power / Alarm Relay Output / RS-485 Relay Output Wire Connection (DL-101S-E Only) DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 13 -...

  • Page 14: Dimensions (Unit: Mm)

    2.3 Dimensions (unit: mm) DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 14 -...

  • Page 15: Cabling For Power And Network

    Similarly, when using the Search function in the DL-300 Utility on Windows, the module, and the Host PC also need to be connected on the same subnet. DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 15 -...
  • Page 16 App or the iAir Utility. Contact your network administrator to ensure the DL-100S-E series logger is connected to the same sub-network as your Android device or PC. DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 16 -...

  • Page 17: Configuration Via Web Browser

    OK button. The Alias for easy to identify each item will be shown at the bottom-left corner of the DL-100S-E screen. DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 17 -...

  • Page 18: Logging Into The Dl-100S-E

    1. Enter the IP address for your DL-100S-E in the address bar of a web browser. 2. Type the Login password, and click the Submit button. (The default Login password is Admin, case sensitive.) DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 18 -...

  • Page 19: Home

    Clicking on the Clear Latched Alarm button can clear the activated alarm status. The Alarm table is only available to the DL-101S-E. DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 19 -...

  • Page 20: Network

    IP/Subnet Mask/Gateway addresses, the port number and the NetID for Modbus TCP communication. Remember to click on the Update Settings button to update new parameters. DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 20 -...
  • Page 21 DL-100S-E logger again to using the web interface. The Restore Defaults button can be used to restore the following settings to factory default values. DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 21 -...

  • Page 22: Mqtt

    "machine-to-machine" (M2M) and "Internet of Things" applications, and for mobile applications where bandwidth and battery power are at a premium. DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 22 -...
  • Page 23 / Ambient Light (LUX) Sub Topic Name: sets the sub topic name for each item. A MQTT client subscribes the messages form a MQTT broker by specifying the topic name as DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 23 -...
  • Page 24 Note: the message attribute needs be passed before the message published to take the settings effect. DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 24 -...

  • Page 25: I/O Settings

    Sets the High alarm limit conditions for Relative Humidity/ Limit Temperature/ Dew Point. Beep On Enable/disable beep on alarm for Temp /RH /Dew point Alarm DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 25 -...
  • Page 26 Safe value. The settings for Power On Value and Safe Value are unavailable when any one setting in the Alarm Mode is enabled All the settings take effect after clicking the Update Settings button. DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 26 -...
  • Page 27 In this table it shows the settings for data logger. All the settings take effect after clicking the Update Settings button. DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 27 -...
  • Page 28 Start Period End Sets the stop time for Period mode Note that all settings will take effect immediately after clicking the Update Settings button. DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 28 -...

  • Page 29: Filter Ip

    Delete All to delete all the IP, check the checkbox for Save to Flash and then click the Submit button to take the delete operation effect. DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 29 -...

  • Page 30: Monitor

    To change the password, uses need enter the Current password, New password, and Confirm new password columns and click the Submit button for Change Web Password to take the setting effect. DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 30 -...

  • Page 31: Logout

    3.10 Logout Click the Logout on any page to logout the DL-100S-E. DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 31 -...

  • Page 32: Configuration Via Rs-485(Dl-110S-E / Dl-120-E Only)

    4.1. Building the RS-485 Connection 1. Download the DCON Utility Pro from http://ftp.icpdas.com/pub/cd/iiot/utility/dcon_utility_pro/ 2. Launch the DCON_Utility_Pro.exe. Stop Search Start Search Set COM port Configuration DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 32 -...
  • Page 33 COM port. 4. Select the COM Port number used to connect the DL-110S-E logger. 5. The Baud Rate is factory default to 9600 bps. DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 33 -...
  • Page 34 6. Select the Protocol tab and check the protocol that set in the logger. 7. Select the Format tab and check the parity that set in the logger. 8. Click the Start Search icon. DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 34 -...
  • Page 35 ON position and power cycle the logger, then the item can be modified. After complete setting, set the pin 4.INIT back to OFF position and power cycle the logger again to take the setting effect. DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 35 -...

  • Page 36: Ai Tab

    Adjust the Ambient Light Ambient Light Humidity offset Temperature and Adjust the temperature Adjust the humidity offset offset Dew point temperature (°C) DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 36 -...

  • Page 37: Logger Configuration

    In the Data Logger form, you can change the data logger related settings. Click on the Apply button to save the changes to the module. DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 37 -...

  • Page 38: Monitoring Via Mobile Devices

    The iAir app is available to free download in Google Play and App Store. Search “iAir” in or search “iAir”, “ICPDAS” in App Store and tap on install. The iAir user manual can be obtained from http://ftp.icpdas.com/pub/cd/iiot/utility/ DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 38 -...

  • Page 39: Utility To Get/Manage Data Log

    3. Search out a DL-100S-E module on the Ethernet and set the configuration. 3-1. Select the Device Settings on the Settings menu. DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 39 -...
  • Page 40 3-3. Check the checkbox next to a module and click the Add button to add the module in the utility. 3-4. Highlight a module and click the Edit Device button to configure the module. DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 40 -...
  • Page 41 4-1. Click the List icon to obtain the real-time data. It also lists the connect status, group information and IP address for every DL-100S-E logger. DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 41 -...
  • Page 42 Drag and drop the trend chart can move it to see the data not be displayed in the chart. 4-3. Click the Alarm icon to review the alarm events. DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 42 -...
  • Page 43 Check the checkbox next to The Record Time Everyday can schedule auto generate report everyday at the time set in the dropdown menu. Click on the OK button to complete the settings. DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 43 -...
  • Page 44 5.2. Click the Start button to download the data in DL-100S-E modules. 5.3. Click the close icon to exit the download procedure when all data are downloaded. DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 44 -...
  • Page 45 5.5. Highlight the desired module, set the Start Time and End Time, and then click the Search button. The data in the time period will be listed as below. DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 45 -...
  • Page 46 5.6. Click the Export button to export the searched data in *.csv files for performing statistical analysis in Excel. DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 46 -...
  • Page 47 6.2 Click the New button, enter the group name and click the OK button in the pop-up box, and then click the OK button in the Group Settings box. DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 47 -...
  • Page 48 Edit Device button, select the group name for the module and click the OK button in the pop-up Device Property box to complete the setting. DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 48 -...
  • Page 49 6-4. Monitor the group data by clicking the Group icon and then highlighting the group name. DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 49 -...

  • Page 50: Faq

    Check the checkbox next to the Save to Flash before clicking the submit button to save the IP setting and use after repowering. DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 50 -...

  • Page 51: Q3: How To Clear The Data Logged In A Dl-100S-E Module

    Download and install the eSearch utility. http://ftp.icpdas.com/pub/cd/iiot/utility/esearch/ Run the eSearch utility. Click on the Search Server button and it should find the DL-100S-E module. DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 51 -...
  • Page 52 Select the firmware file and click on the Open button. Make sure the IP address and MAC address are correct. Click on the OK button. DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 52 -...
  • Page 53 When it shows “% Complete: 100%”, the update is finished. You can close the command prompt window. Re-log in the DL-100S-E web page and check the firmware version. DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 53 -...
  • Page 54 DL-100S-E / DL-101S-E / DL-110S-E / DL-120-E User Manual Version 1.2.0 Jun 2023 - 54 -...

  • Page 55: Appendix A: Modbusmastertoolpc

    Appendix A: ModbusMasterToolPC ModbusMasterToolPC is a free, easy-to-use tool for Modbus communication and diagnosing the wiring. Download and install the ModbusMasterToolPC http://ftp.icpdas.com/pub/cd/iiot/utility/modbusmastertoolpc/ This section intends to guide the steps for creating the Modbus communication with DL-100S-E logger. 1. Launch the ModbusMasterToolPC.exe. 2.
  • Page 56 4. Select Connect in the Connection menu. 5. Select the communication interface. When using TCP/IP as the interface, input the IP for your logger and click on the OK button. 6. Select Definition in the Setup menu. A: ModbusMasterToolPC Version 1.2.0 Jun 2023 - 56 -...
  • Page 57 7. Select the Modbus Function code, input the start address and length, and click on the OK button. 8. Read data. A: ModbusMasterToolPC Version 1.2.0 Jun 2023 - 57 -...

  • Page 58: Appendix B: Modbus Address Table

    Appendix B: Modbus Address Table B-1. DL-100S-E Modbus Address Mappings (Base 1) Address Description Attribute 30001 ~ Analog input value of channel 0 to 4. channel 0: 30005 relative humidity in 0.01%, channel 1: 40001 ~ temperature in 0.01° C, channel 2:temperature 40005 in 0.01°...
  • Page 59 Address Description Attribute 30559 Ethernet host watchdog timeout count. 40559 30560 Module name, 0x0101 40560 40564 TCP disconnection timeout value, 5 to 65535, in second, 0 to disable. 40565 Module reset timeout value, 30 to 65535, in second, 0 to disable. 40801 Number of seconds in a cycle to display temperature in Celsius on LCD, 0 ~ 100...
  • Page 60 Address Description Attribute 40881 Starting year when logging in period mode, 2000 ~ 2159 40882 Starting month when logging in period mode, 1 ~ 12 40883 Starting date when logging in period mode, 1 ~ 40884 Starting hour when logging in period mode, 0 ~ 40885 Starting minute when logging in period mode, 0 ~ 59...

  • Page 61: B-2. Dl-101S-E Modbus Address Mappings (Base 1)

    B-2. DL-101S-E Modbus Address Mappings (Base 1) Address Description Attribute 30001 ~ Analog input value of channel 0 to 4. channel 0: 30005 relative humidity in 0.01%, channel 1: 40001 ~ temperature in 0.01° C, channel 2:temperature in 40005 0.01° F, channel 3: dew point temperature in 0.01°...
  • Page 62 Address Description Attribute 30513 ~ High latched analog input value of channel 0 to 4 R 30517 40513 ~ 40517 30545 ~ Low latched analog input value of channel 0 to 4 R 30549 40545 ~ 40549 30556 Module reset status, 1: power-on, 2: watchdog, 3: 40556 software reset command 40558...
  • Page 63 Address Description Attribute 40873 The starting record to read log data, low word 40874 The starting record to read log data, high word 40875 The status of the data logging, 0: stopped, 1: running 40876 The data logger command, 0: stop, 1: run, 2: run in period mode 40877 Continue writing when data logger is full, 0: no, 1:...
  • Page 64 Address Description Attribute 00001 ~ Digital output value of channel 0 to 1 00002 If relative humidity alarm is enabled, then the digital output of channel 0 is used as its alarm. If temperature alarm or dew point alarm are enabled, then the digital output of channel 2 is used as their alarm.

  • Page 65: B-3. Dl-110S-E Modbus Address Mappings (Base 1)

    B-3. DL-110S-E Modbus Address Mappings (Base 1) Address Description Attribute 30001 ~ Analog input value of channel 0 to 6. channel 0: 30007 relative humidity in 0.01%, channel 1: temperature 40001 ~ in 0.01° C, channel 2:temperature in 0.01° F,...
  • Page 66 Only for Modbus TCP protocol 30559 Ethernet host watchdog timeout count. 40559 Only for Modbus TCP protocol 30560 Module name, 0x0110 40560 Only for Modbus TCP protocol B-3. DL-110S-E Modbus Address Mappings (Base 1) Version 1.2.0 Jun 2023 - 66 -...

  • Page 67: The Starting Record To Read Log Data, Low Word R/W

    Starting date when logging in period mode, 1 ~ 31 R/W 40884 Starting hour when logging in period mode, 0 ~ 23 R/W 40885 Starting minute when logging in period mode, 0 ~ B-3. DL-110S-E Modbus Address Mappings (Base 1) Version 1.2.0 Jun 2023 - 67 -...

  • Page 68: Starting Second When Logging In Period Mode, 0 ~ R/W

    Write 1 to clear high latched analog input value of 00391 channel 0 to 6 00417 ~ Write 1 to clear low latched analog input value of 00423 channel 0 to 6 B-3. DL-110S-E Modbus Address Mappings (Base 1) Version 1.2.0 Jun 2023 - 68 -...

  • Page 69: B-4. Dl-120-E Modbus Address Mappings (Base 1)

    B-4. DL-120-E Modbus Address Mappings (Base 1) Address Description Attribute 30001 ~ Analog input value of channel 0 to 1. channel 0: 30002 low word of ambient light in lux, channel 1: high 40001 ~ word of ambient light in lux 40002 40181 ~ Module alias name...
  • Page 70 Address Description Attribute 40488 RS-485 response delay time in ms, valid range, 0 ~ 30 Only for Modbus RTU protocol 40489 RS-485 host watchdog timeout value, 0 ~ 255, in 0.1s Only for Modbus RTU protocol 40492 RS-485 host watchdog timeout count, write 0 to clear Only for Modbus RTU protocol 30513 ~...

  • Page 71: Ending Date When Logging In Period Mode, 1 ~ 31 R/W Ending Hour When Logging In Period Mode, 0 ~ 23 R/W Ending Minute When Logging In Period Mode, 0 ~ R/W

    Address Description Attribute 40869 RTC minute, 0 to 59 40870 RTC second, 0 to 59 40871 Total number of log records, low word 40872 Total number of log records, high word 40873 The starting record to read log data, low word 40874 The starting record to read log data, high word 40875...
  • Page 72 Address Description Attribute 00227 Write 1 to reload default TCP settings and reboot module Only for Modbus TCP protocol 00234 Write 1 to reboot module Only for Modbus TCP protocol 00257 RS-485 Protocol, 0: DCON, 1: Modbus RTU Only for Modbus RTU protocol 00261 RS-485 host watchdog mode, 1: enable, 0: disable.

  • Page 73: Revision History

    Changed Modbus register 40181 module alias name to read 1.1.2 2019/May only 1.1.3 2020/Dec Fixed typos and reformatted Delete DL-100-E, DL-101-E, DL-110-E information 1.2.0 2023/Jun Added DL-100S-E, DL-101S-E and DL-110S-E information B-4. DL-120-E Modbus Address Mappings (Base 1) Version 1.2.0 Jun 2023 - 73 -...
