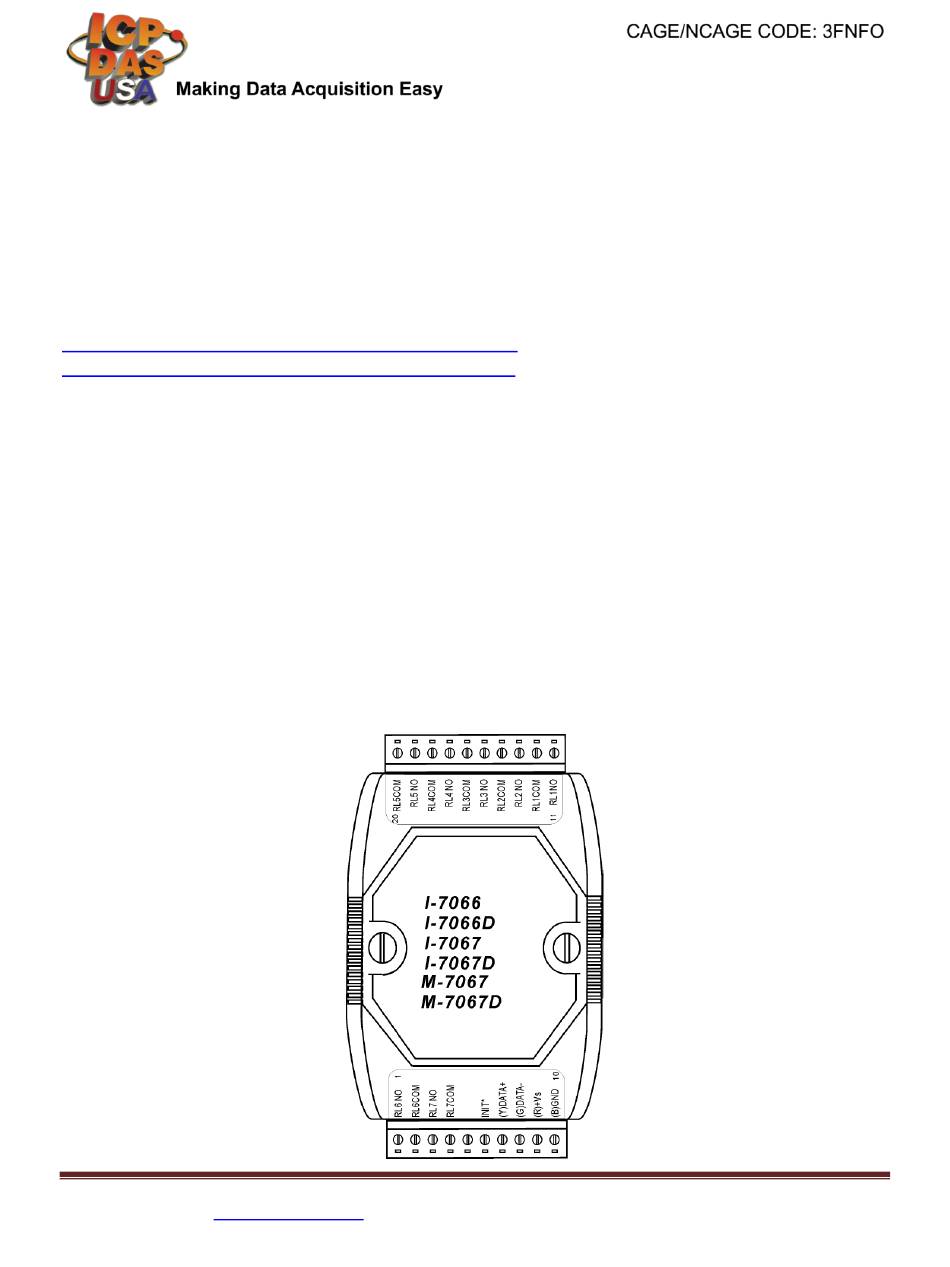

I-7067
7 Channel Relay Output Data Acquisition
Module with Form A Relay Outputs
Quick Start Guide
Product Website:
http://www.icpdas-usa.com/i_7067_i_7067d.html
http://www.icpdas-usa.com/dcon_utility_pro.html

1. Introduction

I-7067 is a 7-channel Relay Output Data Acquisition Module for signal conditioning
system monitoring. Providing safe value settings, I-7067 is a cost-effective solution for a
wide range of industrial control signals and systems. The DCON utility can help users to
configure and test I-7067 Relay Output module. The various library functions and demo
programs it provides makes it easy for users to develop programs in Windows, Linux
and DOS operating systems. I-7067 communicates over Modbus protocol via RS-485.
Users can mount the module on a DIN rail, panel or wall. Modules have a screw-
terminal block to connect to the signals. The I-7067 relay output data acquisition module
can be used in various applications such as industrial automation and control, factory
automation, remote monitoring, etc.

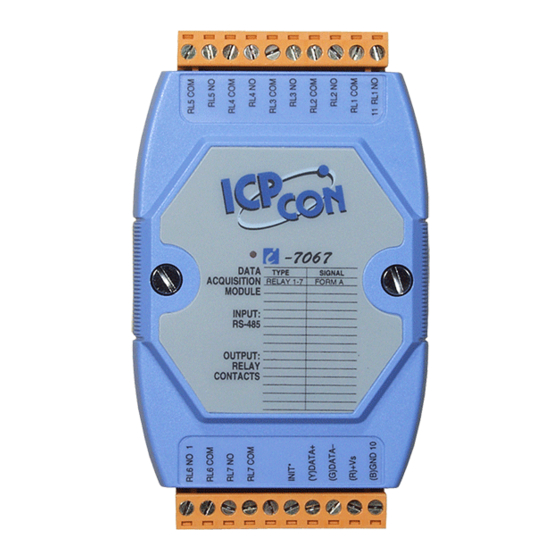

2. Terminal Assignment

I-7067 - 7 Channel Relay Output DAQ Module
- QuickStart (Feb/2016)
ICP DAS USA, Inc. |
www.icpdas-usa.com
| 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717
