DL-100S-E/DL-101S-E
DL-110-E/DL-120-E
Illumination/Temperature/Humidity/Dew Point
Data Logger User Manual
Version: 1.0.0
Date: May 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DL-100S-E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ICP DAS USA DL-100S-E

Summary of Contents for ICP DAS USA DL-100S-E

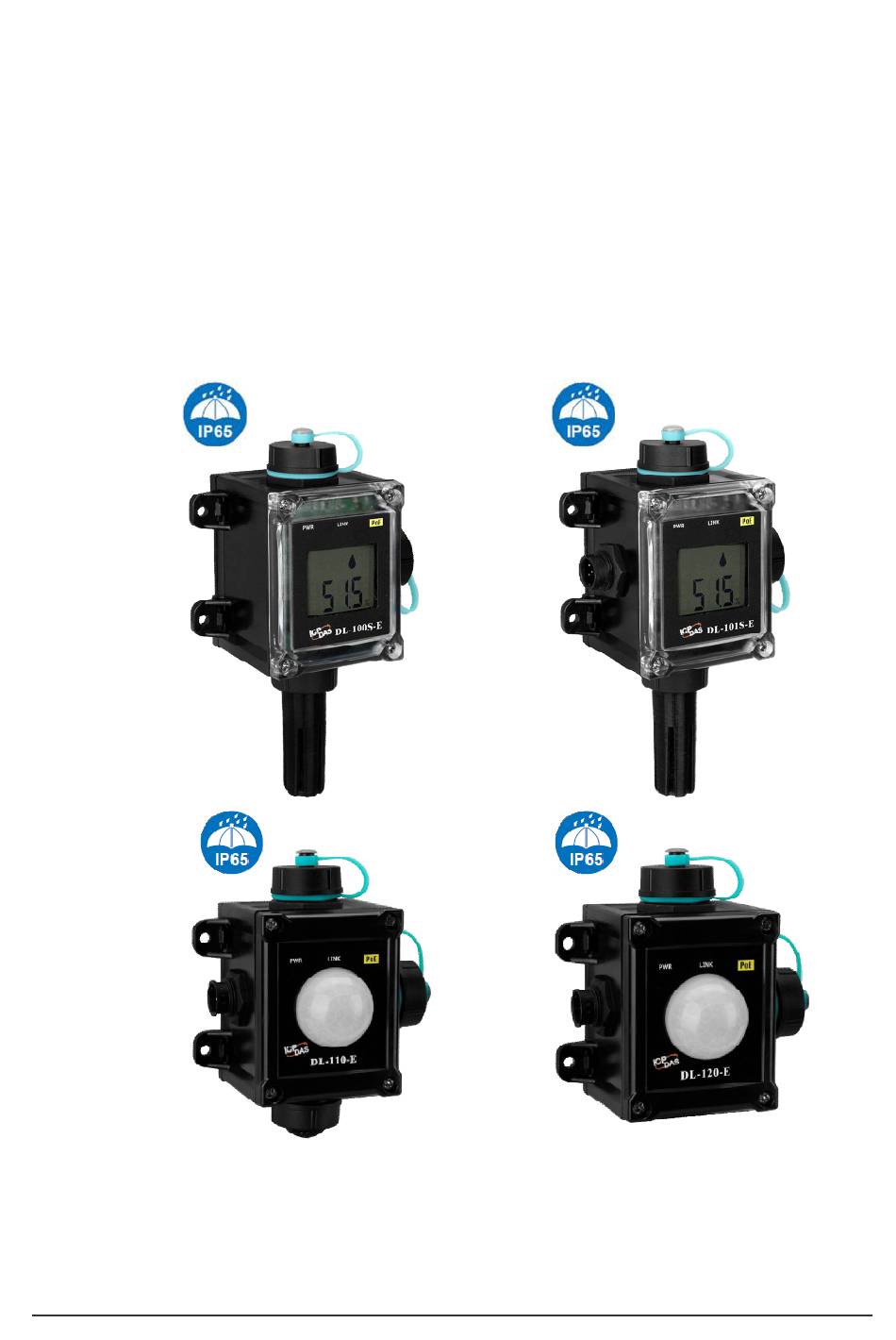

  • Page 1 DL-100S-E/DL-101S-E DL-110-E/DL-120-E Illumination/Temperature/Humidity/Dew Point Data Logger User Manual Version: 1.0.0 Date: May 2020...
  • Page 2 Warranty All products manufactured by ICP DAS are warranted against defective materials for a period of one year from the date of delivery to the original purchaser. Warning ICP DAS assumes no liability for damages consequent to the use of this product. ICP DAS reserves the right to change this manual at any time without notice.

  • Page 3: Table Of Contents

    Q1: How to set the Accessible IP? ................... 50 Q2: How to delete the Accessible IP settings? ..............50 Q3: How to clear the data logged in a DL-100S-E module? ..........51 Q4: How to download firmware into a DL-101S-E module? ..........51 Appendix A: ModbusMasterToolPC ................

  • Page 4: Introduction

    1. Introduction The DL-100S-E series are Data Logger devices that can be used to record illumination, temperature, humidity and dew point data, together with date and time stamp information. Up to 600,000 downloadable records can be stored. Real-time data can be...
  • Page 5 Features Built-in Web Server With the built-in Web server, users can easily log in to the DL-100S-E series module via a standard web browser to monitor the data and configure the settings without install any software in the terminal. Get Real-time Data Anywhere and Anytime...
  • Page 6 Easy integration with SCADA software Modbus is one of the most popular protocols used in the industrial world. Supporting traditional serial protocols of Ethernet protocols allow the DL-100S-E series module well-integrated into the HMI/SCADA systems. Easy Wiring Support for Ethernet and Power over Ethernet (PoE) interfaces for users to choose the appropriate one to meet the field requirements.

  • Page 7: Hardware

    Modbus TCP and MQTT and MQTT Security Password and IP Filter Dual Watchdog Yes, Module (2.3 seconds), Communication (Programmable) System Real Time Clock Data Logger Yes, 600,000 Records DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 -4-...
  • Page 8 Waterproof Level IP66 IP65 Installation DIN-Rail or Wall mounted Environment Operating Temperature -20 to +60°C Storage Temperature -30 to +80°C Humidity 5 to 95% RH, Non-condensing DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 -5-...

  • Page 9: Appearance

    The three LED indicators from left to right are: PWR: green for normal operation. Link: green for the Ethernet linked. PoE: red for powered via PoE DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 -6-...
  • Page 10 The Ethernet port can be used to connect to either a PoE switch or a non-PoE switch. Installing a waterproof attachment on an RJ45 connector. The DL-100S-E series module is equipped with an RJ-45 waterproof connector that ensures the device is able to withstand potential contaminants in dusty environments.
  • Page 11 Step 3: Wrap the Gasket around the Clamp Ring Step 4: Wrap the Lock Nut around the Clamp Ring Step 5: Insert the Seal around the Clamp Ring DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 -8-...
  • Page 12 Step 8: Push the RJ-45 waterproof connector assembly forward so that it covers the RJ-45 connector Step 9: Connect the RJ-45 Cable to the COM Port on the DL-100S-E module DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 -9-...
  • Page 13 Step 10: Firmly tighten the connector to the module and ensure that it is completely connected. Connector for Power / Alarm Relay Output / RS-485 DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 -10-...
  • Page 14 Step 2: Insert the conductors into the holes on the 5 Pin Cable Connector. See the figure below for the correct pin-out connections 5 Pin Cable Connector Step 3: Wrap the Lock Nut around the 5 Pin Cable Connector DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 -11-...
  • Page 15 Step 5: Wrap the Clamp Ring around the 5 Pin Cable Connector Step 6: Insert the Seal into the Clamp Ring Step 7: Push the Sealing Nut forward and Hand-tighten it to seal the assembly DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 -12-...
  • Page 16 The fool-proofing groove (as red circle) is useful for easy connection of power cable and power plug. Please make sure they are located in the same direction when connecting these two items. Relay Output Wire Connection (DL-101S-E Only) DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 -13-...

  • Page 17: Dimensions (Unit: Mm)

    2.3 Dimensions (unit: mm) DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 -14-...

  • Page 18: Cabling For Power And Network

    2.4 Cabling for Power and Network Note Do not install the DL-100S-E series module near a vent, a ventilation fan or a door  where the air flows faster. Avoid installing in locations where the temperature is below -20°C or above 60°C.
  • Page 19 Consequently, only loggers that have the same broadcast address can be identified in the iAir App or the DL-300 Utility. Contact your network administrator to ensure the DL-100S-E series logger is connected to the same sub-network as your Android device or PC.

  • Page 20: Configuration Via Web Browser

    3. Configuration via Web Browser The DL-100S-E series logger has a built-in web server that provides simple web pages for remote monitoring real-time data and configuring the logger with a standard browser. For opening the web page in DL-100S-E series module, the factory default IP address (192.168.255.1), Subnet Mask (255.255.0.0) and Gateway (192.168.0.1) need be set...

  • Page 21: Logging Into The Dl-100S-E

    Refer to “Chapter 3.1 Search the DL-100S-E logger. If the IP address settings do not work correctly, 3.2 Logging into the DL-100S-E 1. Enter the IP address for your DL-100S-E in the address bar of a web browser. 2. Type the Login password, and click the Submit button.

  • Page 22: Home

    Clicking on the Clear Latched Alarm button can clear the activated alarm status. DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 -19-...

  • Page 23: Network

    The networks parameters are set on this page including DHCP enabled/disabled, IP/Subnet Mask/Gateway addresses, the port number and the NetID for Modbus TCP communication. Remember to click on the Update Settings button to update new parameters. DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 -20-...
  • Page 24 DL-101S-E logger again to using the web interface. The Restore Defaults button can be used to restore the following settings to factory default values. DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 -21-...

  • Page 25: Mqtt

    "machine-to-machine" (M2M) and "Internet of Things" applications, and for mobile applications where bandwidth and battery power are at a premium. DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 -22-...
  • Page 26 / Ambient Light (LUX) Sub Topic Name: sets the sub topic name for each item. A MQTT client subscribes the messages form a MQTT broker by specifying the topic name as DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 -23-...
  • Page 27 Note: the message attribute needs be passed before the message published to take the settings effect. DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 -24-...

  • Page 28: I/O Settings

    High Alarm Sets the High alarm limit conditions for Relative Humidity/ Limit Temperature/ Dew Point. Beep On Enable/disable beep on alarm for Temp /RH /Dew point Alarm DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 -25-...
  • Page 29 Safe value. The settings for Power On Value and Safe Value are unavailable when any one setting in the Alarm Mode is enabled All the settings take effect after clicking the Update Settings button. DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 -26-...
  • Page 30 In this table it shows the settings for data logger. All the settings take effect after clicking the Update Settings button. DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 - 27 -...
  • Page 31 Start Period End Sets the stop time for Period mode Note that all settings will take effect immediately after clicking the Update Settings button. DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 - 28 -...

  • Page 32: Filter Ip

    3.7 Filter IP For limiting the devices to access the DL-100S-E logger, users can specifies particular devices by setting their IP addresses on this page. When the addresses are 0.0.0.0 from IP1 to IP5, all the devices can access the logger. Once any of the 5 IP address columns is set, only the device with which IP is saved in the list can assess the logger.

  • Page 33: Monitor

    On this page users can change the passwords for login the logger and locking the touch screen. The factory default for the DL-100S-E touch screen has no password protection. After setting the password for touch screen, each time whoever wants to change to settings from the touch screed, the password will be requested.

  • Page 34: Logout

    3.10 Logout Click the Logout on any page to logout the DL-101S-E. DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 - 31 -...

  • Page 35: Configuration Via Rs-485(Dl-110-E / Dl-120-E Only)

    4.1. Building the RS-485 Connection 1. Download the DCON Utility Pro from http://ftp.icpdas.com/pub/cd/iiot/utility/dcon_utility_pro/ 2. Launch the DCON_Utility_Pro.exe. Stop Search Start Search Set COM port Configuration DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 - 32 -...
  • Page 36 COM port. 4. Select the COM Port number used to connect the DL-110-E logger. 5. The Baud Rate is factory default to 9600 bps. DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 - 33 -...
  • Page 37 6. Select the Protocol tab and check the protocol that set in the logger. 7. Select the Format tab and check the parity that set in the logger. 8. Click the Start Search icon. DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 - 34 -...
  • Page 38 ON position and power cycle the logger, then the item can be modified. After complete setting, set the pin 4.INIT back to OFF position and power cycle the logger again to take the setting effect. DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 - 35 -...

  • Page 39: Ai Tab

    Adjust the Ambient Light Ambient Light Humidity offset Temperature and Adjust the temperature Adjust the humidity offset Dew point temperature offset (°C) DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 - 36 -...

  • Page 40: Logger Configuration

    In the Data Logger form, you can change the data logger related settings. Click on the Apply button to save the changes to the module. DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 - 37 -...

  • Page 41: Monitoring Via Mobile Devices

    DL-100S-E series module loggers by entering a specific IP address, or by performing an automatic search for available devices.

  • Page 42: Utility To Get/Manage Data Log

    6. Utility to Get/Manage Data Log DL-300 Utility is a convenient, easy-to-use management utility running on Windows platform that allows users to monitor the real-time data and trend chart from DL-100S-E series modules on the Ethernet, it can group the DL-100S-E series modules for group view management, log alarm events with timestamp, download the logged data from a DL-100S-E series logger and export the data to *.csv files for performing statistical...
  • Page 43 3-2. Click the Search New Device button to search the DL-100S-E modules connected on the same Ethernet network. 3-3. Check the checkbox next to a module and click the Add button to add the module in the utility. 3-4. Highlight a module and click the Edit Device button to configure the module.
  • Page 44 4. Get real-time data, trend chart and alarm event. 4-1. Click the List icon to obtain the real-time data. It also lists the connect status, group information and IP address for every DL-100S-E logger. DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual...
  • Page 45 CO/CO level, Temperature or Humidity to access the trend chart for those real-time data, check the checkbox next to each DL-100S-E logger to display its trend chart or uncheck it to cancel display. Drag and drop the trend chart can move it to see the data not be displayed in the chart.
  • Page 46 Check the checkbox next to The Record Time Everyday can schedule auto generate report everyday at the time set in the dropdown menu. Click on the OK button to complete the settings. DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 - 43 -...
  • Page 47 5. Download data in a DL-300 logger and export the data 5.1. Select Update Database on the Settings menu 5.2. Click the Start button to download the data in DL-100S-E modules. 5.3. Click the close icon to exit the download procedure when all data are downloaded.
  • Page 48 5.5. Highlight the desired module, set the Start Time and End Time, and then click the Search button. The data in the time period will be listed as below. DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 - 45 -...
  • Page 49 5.6. Click the Export button to export the searched data in *.csv files for performing statistical analysis in Excel. DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 - 46 -...
  • Page 50 6.2 Click the New button, enter the group name and click the OK button in the pop-up box, and then click the OK button in the Group Settings box. DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 - 47 -...
  • Page 51 Edit Device button, select the group name for the module and click the OK button in the pop-up Device Property box to complete the setting. DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 - 48 -...
  • Page 52 6-4. Monitor the group data by clicking the Group icon and then highlighting the group name. DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 - 49 -...

  • Page 53: Faq

    IP setting and use after repowering. Once any of those in the list is set, only the device for which the IP address is saved in the list can assess the DL-100S-E. Q2: How to delete the Accessible IP settings?

  • Page 54: Q3: How To Clear The Data Logged In A Dl-100S-E Module

    Q3: How to clear the data logged in a DL-100S-E module? A3: Enter the IP address for the module in the address bar of a web browser and go to the I/O Settings page, click the Reset Data Logger button at the bottom of the page.
  • Page 55 Select the firmware file and click on the Open button. Make sure the IP address and MAC address are correct. Click on the OK button. DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 - 52 -...
  • Page 56 When it shows “% Complete: 100%”, the update is finished. You can close the command prompt window. Re-log in the DL-101S-E web page and check the firmware version. DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 - 53 -...
  • Page 57 DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 - 54 -...

  • Page 58: Appendix A: Modbusmastertoolpc

    DL-100S-E logger. 1. Launch the ModbusMasterToolPC.exe. 2. Select New in the File menu. 3. Input the file name and click on the Save button. DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 - 55 -...
  • Page 59 5. Select the communication interface. When using TCP/IP as the interface, input the IP for your logger and click on the OK button. 6. Select Definition in the Setup menu. DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 - 56 -...
  • Page 60 7. Select the Modbus Function code, input the start address and length, and click on the OK button. 8. Read data. DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 - 57 -...

  • Page 61: Appendix B: Modbus Address Table

    Module reset status, 1: power-on, 2: watchdog, 40556 3: software reset command 40558 Ethernet host watchdog timeout value, 5 to 65535, in second, 0 to disable. DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 - 58 -...
  • Page 62 Hour of the data logger sampling period, 0 ~ 24 R/W 40879 Minute of the data logger sampling period, 0 ~ 40880 Second of the data logger sampling period, 0 ~ DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 - 59 -...
  • Page 63 00389 value of channel 0 to 4 00417 ~ Write 1 to clear low latched analog input 00421 value of channel 0 to 4 DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 - 60 -...

  • Page 64: B-2. Dl-101S-E Modbus Address Mappings (Base 1)

    Temperature offset in 0.01°C 40481 Firmware version (low word) 40482 Firmware version (high word) 40483 Module name (low word), 0x0100 40484 Module name (high word), 0x444C DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 - 61 -...
  • Page 65 RTC minute, 0 to 59 40870 RTC second, 0 to 59 40871 Total number of log records, low word 40872 Total number of log records, high word DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 - 62 -...
  • Page 66 Ending hour when logging in period mode, 0 ~ 23 R/W 40891 Ending minute when logging in period mode, 0 ~ 40892 Ending second when logging in period mode, 0 ~ DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 - 63 -...
  • Page 67 Write 1 to clear high latched analog input value of 00389 channel 0 to 4 00417 ~ Write 1 to clear low latched analog input value of 00421 channel 0 to 4 DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 - 64 -...

  • Page 68: B-3. Dl-110-E Modbus Address Mappings (Base 1)

    40483 Module name (low word), 0x0100 40484 Module name (high word), 0x444C 40485 RS-485 module address, 1 to 247 Only for Modbus RTU protocol DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 - 65 -...
  • Page 69 Only for Modbus TCP protocol 30559 Ethernet host watchdog timeout count. 40559 Only for Modbus TCP protocol 30560 Module name, 0x0110 40560 Only for Modbus TCP protocol DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 - 66 -...
  • Page 70 Starting date when logging in period mode, 1 ~ 31 R/W 40884 Starting hour when logging in period mode, 0 ~ 23 R/W 40885 Starting minute when logging in period mode, 0 ~ DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 - 67 -...
  • Page 71 Write 1 to clear high latched analog input value of 00391 channel 0 to 6 00417 ~ Write 1 to clear low latched analog input value of 00423 channel 0 to 6 DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 - 68 -...

  • Page 72: B-4. Dl-120-E Modbus Address Mappings (Base 1)

    01: no parity, 2 stop bit 10: even parity, 1 stop bit 11: odd parity , 1 stop bit Only for Modbus RTU protocol DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 - 69 -...
  • Page 73 0 to disable. Only for Modbus TCP protocol 40865 RTC year, 2000 to 2159 40866 RTC month, 1 to 12 40867 RTC date, 1 to 31 DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 - 70 -...
  • Page 74 Ending hour when logging in period mode, 0 ~ 23 R/W 40891 Ending minute when logging in period mode, 0 ~ 40892 Ending second when logging in period mode, 0 ~ DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 - 71 -...

  • Page 75: Revision History

    Write 1 to clear low latched analog input value of 00418 channel 0 to 1 Revision History Revision Date Description 1.0.0 2020/May First released DL-100S-E / DL-101S-E / DL-110-E / DL-120-E User Manual Version 1.0.0 May 2020 - 72 -...
