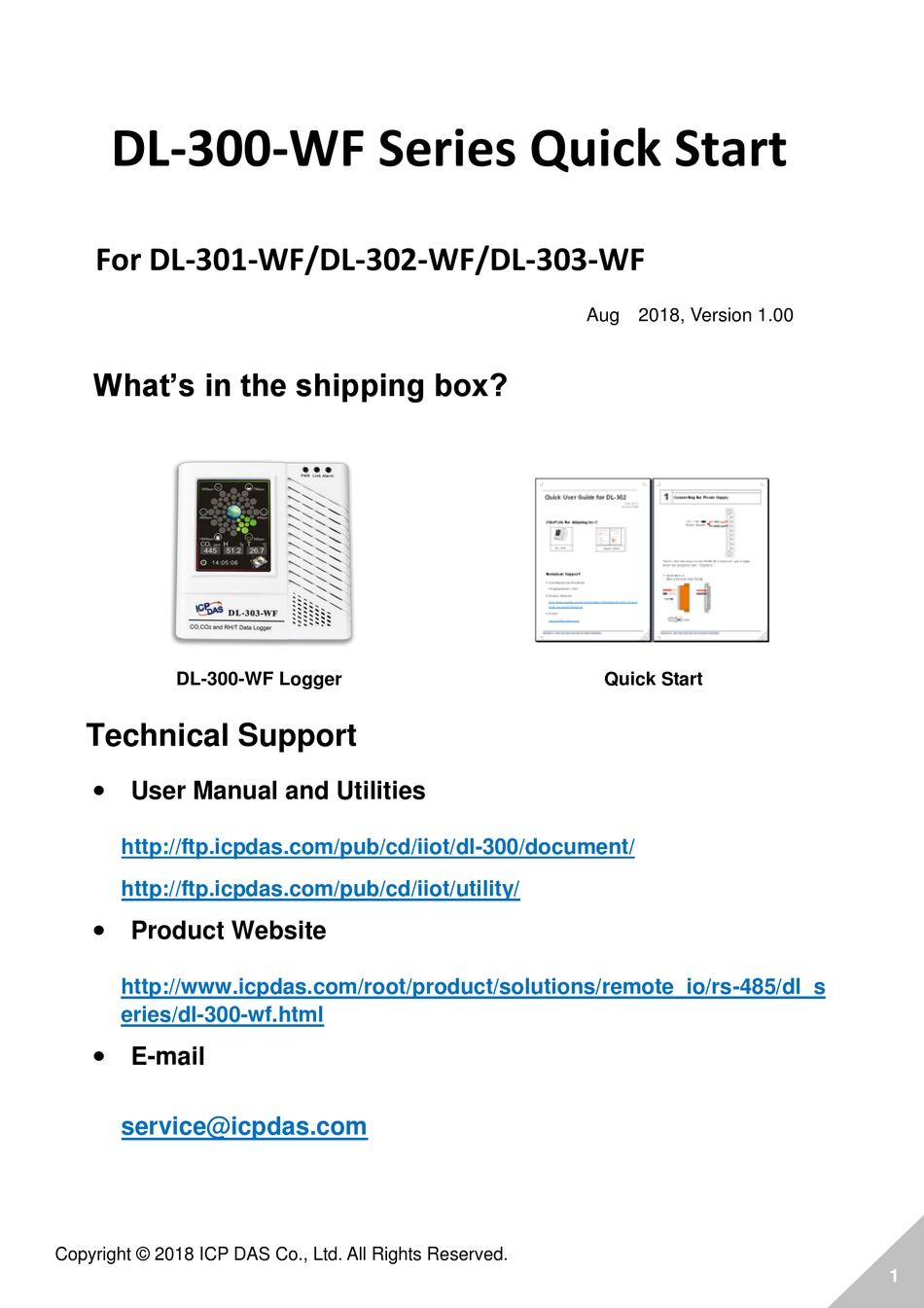

DL-300-WF Series Quick Start
For DL-301-WF/DL-302-WF/DL-303-WF
What's in the shipping box?

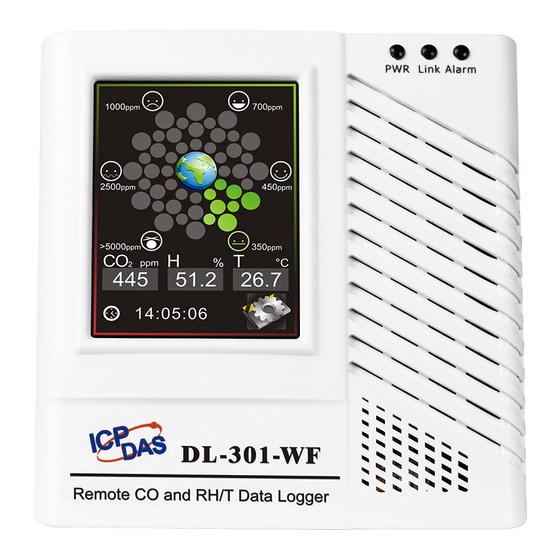

DL-300-WF Logger
Technical Support
User Manual and Utilities
http://ftp.icpdas.com/pub/cd/iiot/dl-300/document/
http://ftp.icpdas.com/pub/cd/iiot/utility/
Product Website
http://www.icpdas.com/root/product/solutions/remote_io/rs-485/dl_s
eries/dl-300-wf.html
E-mail
service@icpdas.com
Copyright © 2018 ICP DAS Co., Ltd. All Rights Reserved.
Aug 2018, Version 1.00
Quick Start
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DL-300-WF Series and is the answer not in the manual?

Questions and answers

Summary of Contents for ICP DAS USA DL-300-WF Series

  • Page 1 DL-300-WF Series Quick Start For DL-301-WF/DL-302-WF/DL-303-WF Aug 2018, Version 1.00 What’s in the shipping box? DL-300-WF Logger Quick Start Technical Support User Manual and Utilities http://ftp.icpdas.com/pub/cd/iiot/dl-300/document/ http://ftp.icpdas.com/pub/cd/iiot/utility/ Product Website http://www.icpdas.com/root/product/solutions/remote_io/rs-485/dl_s eries/dl-300-wf.html E-mail service@icpdas.com Copyright © 2018 ICP DAS Co., Ltd. All Rights Reserved.
  • Page 2 Connecting the Power Supply The DL-300-WF logger can be powered by either a PoE switch or a +12 ~ +48 V power supply as below: +12 ~ +48 VDC Power Supply Push In (Solid Wire or Wire with wire-end ferrule) ...
  • Page 3 Flexible Wire  Push and Release Copyright © 2018 ICP DAS Co., Ltd. All Rights Reserved.
  • Page 4 Powering-on the DL-300-WF logger The factory default settings for Wi-Fi communication of the DL-300-WF are as follows. Mode: AP  Wireless Security: WPA/WPA2, "00000000"  DHCP Server (AP Mode): DHCP Server on, start IP: 192.168.255.2  Wi-Fi Channel (AP Mode): 11 ...
