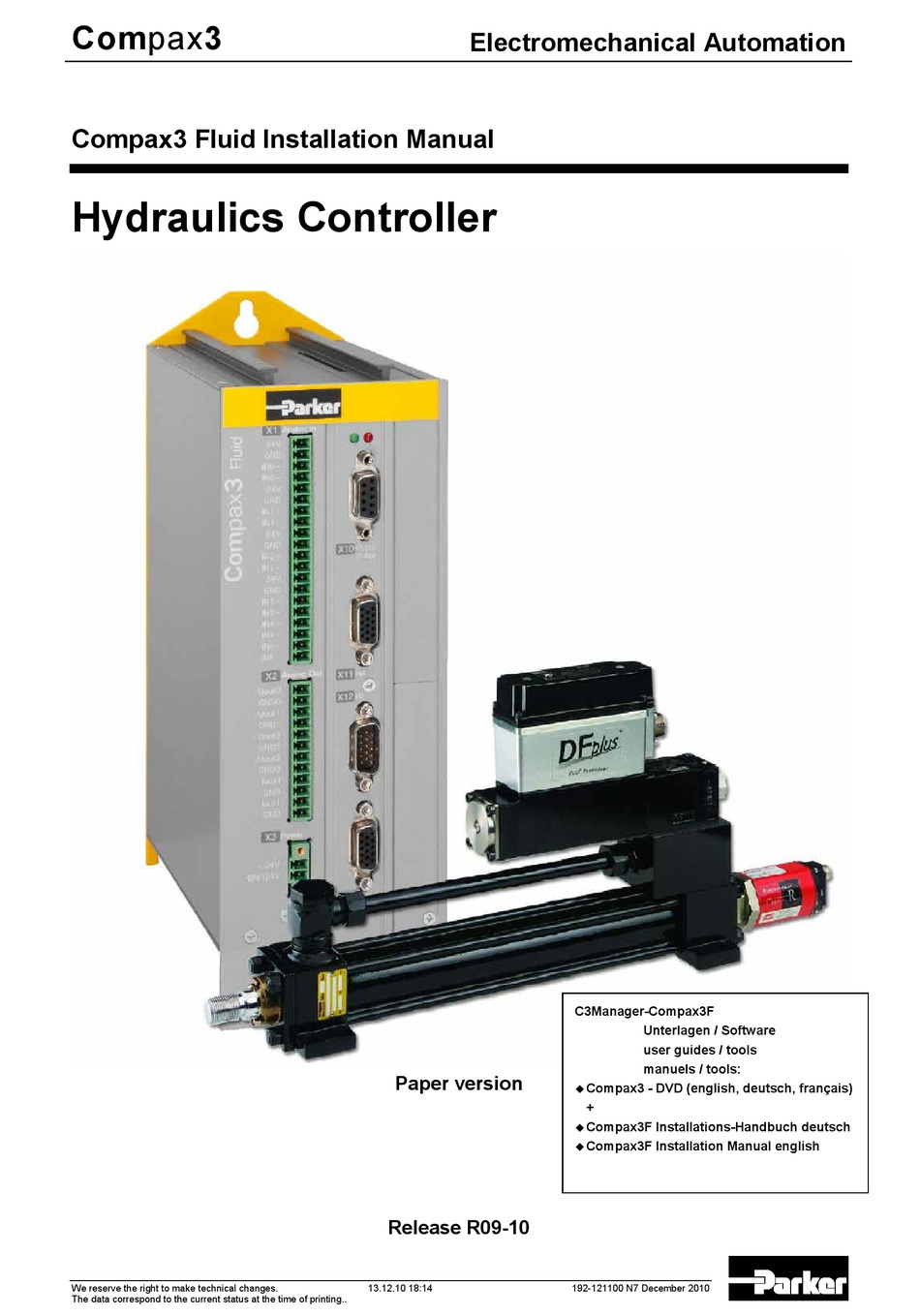

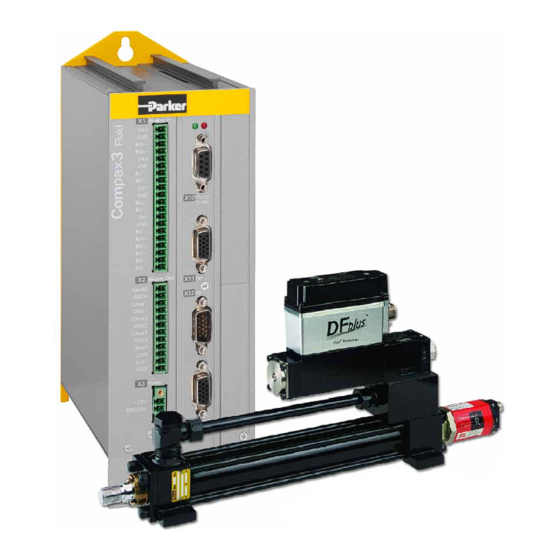

Compax3
Compax3 Fluid Installation Manual
Hydraulics Controller
We reserve the right to make technical changes.
The data correspond to the current status at the time of printing..
Electromechanical Automation
Paper version
Release R09-10
13.12.10 18:14
C3Manager-Compax3F
Unterlagen / Software
user guides / tools
manuels / tools:
Compax3 - DVD (english, deutsch, français)
+
Compax3F Installations-Handbuch deutsch
Compax3F Installation Manual english
192-121100 N7 December 2010
Advertisement
Table of Contents
Related Manuals for Parker Compax3 Fluid
Summary of Contents for Parker Compax3 Fluid
- Page 1 Compax3 Electromechanical Automation Compax3 Fluid Installation Manual Hydraulics Controller C3Manager-Compax3F Unterlagen / Software user guides / tools manuels / tools: Paper version Compax3 - DVD (english, deutsch, français) Compax3F Installations-Handbuch deutsch Compax3F Installation Manual english Release R09-10 We reserve the right to make technical changes.
- Page 2 Tel.: +44 (0)1202 606300 • Fax: +44 (0)1202 606301 E-mail: sales.automation@parker.com mailto:sales.automation@parker.com • Internet: www.parker-eme.com http://www.parker-eme.com Italy: Parker Hannifin S.p.A • SSD SBC • Electromechanical Automation • Via Gounod, 1 I-20092 Cinisello Balsamo (MI), Italy Tel.: +39 (0)2 66012459 • Fax: +39 (0)2 66012808 E-mail: sales.automation@parker.com mailto:sales.sbc@parker.com •...
-
Page 3: Notes On The Documents Supplied
Furthermore, the "Parker Integrated Engineering Tool", a software tool for the Engineering Tool project management of several Parker Motion Control products, can be found on the C3 DVD. Several axes are managed in a common project. The Compax3 ServoManager is integrated per "Plug &... -
Page 4: C3 Servomanager
Notes on the Documents Supplied Hydraulics Controller C3 ServoManager Installation of the C3 The Compax3 ServoManager can be installed directly from the Compax3 ServoManager DVD. Click on the corresponding hyperlink resp. start the installation program "C3Mgr_Setup_V..exe" and follow the instructions. PC requirements Recommendation: Operating system:... -
Page 5: Table Of Contents
Conditions of utilization for CE-conform operation ......11 EC declaration of conformity Compax3F ..........12 3. Compax3F device description .............. 13 State of delivery ..................13 Plug and connector assignment Compax3 Fluid ........ 13 3.2.1. Meaning of the front panel LEDs (via X10) ............ 13 3.2.2. -
Page 6: Introduction
2. Introduction In diesem Kapitel finden Sie Device assignment Compax3 Fluid ..................6 Scope of delivery ....................... 6 Type specification plate Compax3 Fluid ................7 Packaging, transport, storage .................... 8 Safety instructions ......................9 Warranty conditions ......................10 Conditions of utilization for CE-conform operation ............11 EC declaration of conformity Compax3F ................ -
Page 7: Type Specification Plate Compax3 Fluid
Parker EME Introduction Type specification plate Compax3 Fluid You will find the exact description of the device on the type specification plate, which is located on the right side of the device: Type specification plate Compax3 Fluid: Explanation: Type designation The complete order designation of the device (2, 6 - 9...) -
Page 8: Packaging, Transport, Storage
Introduction Hydraulics Controller Packaging, transport, storage Packaging material and transport Caution! The packaging material is inflammable, if it is disposed of improperly by burning, lethal fumes may develop. The packaging material must be kept and reused in the case of a return shipment. Improper or faulty packaging may lead to transport damages. -
Page 9: Safety Instructions
Parker EME Introduction Safety instructions In diesem Kapitel finden Sie General hazards ........................ 9 Safety-conscious working ....................9 Special safety instructions ....................9 2.5.1. General hazards General Hazards on Non-Compliance with the Safety Instructions The device described in this manual is designed in accordance with the latest technology and is safe in operation. -
Page 10: Warranty Conditions
Introduction Hydraulics Controller Warranty conditions The device must not be opened. Do not make any modifications to the device, except for those described in the manual. Make connections to the inputs, outputs and interfaces only in the manner ... -
Page 11: Conditions Of Utilization For Ce-Conform Operation
Do not place mains filter output cable parallel to the load cable. Accessories: Make sure to use only the accessories recommended by Parker Connect all cable shields at both ends, ensuring large contact areas! Warning: This is a product in the restricted sales distribution class according to EN 61000-6-4. -
Page 12: Ec Declaration Of Conformity Compax3F
Introduction Hydraulics Controller EC declaration of conformity Compax3F 192-121100 N7 December 2010... -
Page 13: Compax3F Device Description
3. Compax3F device description In diesem Kapitel finden Sie State of delivery ....................... 13 Plug and connector assignment Compax3 Fluid .............. 13 State of delivery Compax3 is delivered without configuration! After switching on the 24VDC supply, the red LED is flashing while the green LED is dark. -
Page 14: Plug And Connector Assignment
Compax3F device description Hydraulics Controller 3.2.2. Plug and connector assignment Analog Inputs Analog Outputs 24 VDC power supply RS232/RS485 2. Feedback Type Inputs/Outputs 1. Feedback Type Caution! Always switch devices off before wiring them! 192-121100 N7 December 2010... -
Page 15: Plug And Connector Assignment Complete
Parker EME Compax3F device description 3.2.3. Plug and connector assignment complete In detail: The fitting of the different plugs depends on the extension level of Compax3. In part, the assignment depends on the Compax3 option implemented. Compax3F X20/1 X10/1 X10/1... -
Page 16: Analog Input (Plug X1)
The cable must be fully-screened and connected to the Compax3 housing. Use the cable clamps/shield connecting terminals furnished with the device. 3.2.4.1 Wiring of the analog inputs Input IN0 Input IN4 Compax3 Fluid Compax3 Fluid 200KΩ 22.1KΩ 10pF X1/4 200KΩ... -
Page 17: Analog Output (Plug X2)
The cable must be fully-screened and connected to the Compax3 housing. Use the cable clamps/shield connecting terminals furnished with the device. 3.2.5.1 Wiring of analog outputs Output I/U Aout0 Output Iout0 Compax3 Fluid Compax3 Fluid X2/9 Iout0 X2/1 I/Uout0 +/-100mA* +/-10V 0...20mA*... -
Page 18: Voltage Supply (Plug X3)
Compax3F device description Hydraulics Controller 3.2.6. Voltage supply (plug X3) Connector Descriptio Combicon 5mm X3 Pin +24 V 24 VDC (power supply) GND24V Voltage supply 24VDC Controller type Compax3 F001 D2 Voltage range 21 - 27VDC Mains module with switch-on current limitation, due to capacitive load Fuse MTP miniature circuit breaker or "delayed action... -
Page 19: Rs232/Rs485 Interface (Plug X10)
Parker EME Compax3F device description 3.2.7. RS232/RS485 interface (plug X10) Interface selectable by contact functions assignment of X10/1: X10/1=0V RS232 X10/1=5V RS485 PIN X10 RS232 (Sub D) (Enable RS232) 0V RS485 2-wire RS485 2-wire Sub D PIN X10 Pin 1 and 9 externally jumpered Enable RS485 (+5V) res. -
Page 20: Analog / Encoder (Plug X11)
Compax3F device description Hydraulics Controller 3.2.8. Analog / Encoder (plug X11) The following position sensors can be connected via X11: RS422 Encoder (max. 5MHz, (track A or B) or step/direction) SSI (RS422) Start / Stop (Time of Flight, RS422) ... -
Page 21: Digital Inputs/Outputs (Plug X12)
Parker EME Compax3F device description 3.2.9. Digital inputs/outputs (plug X12) Pin X12 Input/output I/O / X12 High density/Sub D Output +24 V DC output (max. 340mA) Output 0 (max. 100 mA) Output 1 (max. 100mA) Output 2 (max. 100mA) Output 3 (max. 100mA) -
Page 22: Feedback (Connector X13)
Compax3F device description Hydraulics Controller 3.2.10. Feedback (connector X13) The following position sensors can be connected via X13: 1VSS SineCosine (max. 400Hz) RS422 Encoder (max. 5MHz, (track A or B) or step/direction) SSI (RS422) Start / Stop (Time of Flight, RS422) ... -
Page 23: Mounting And Dimensions
Parker EME Compax3F device description 3.2.11. Mounting and dimensions Mounting: 3 socket head screws M5 or by direct snapping on a 35 mm supporting rail (according to DIN EN 50 022), Mounting material: DIN rail clip and distance piece available as accessories - Set... -
Page 24: Technical Characteristics
Technical Characteristics Hydraulics Controller 4. Technical Characteristics Voltage supply 24VDC Controller type Compax3 F001 D2 Voltage range 21 - 27VDC Mains module with switch-on current limitation, due to capacitive load Fuse MTP miniature circuit breaker or "delayed action fuse", due to capacitive load Current drain of the device 0.8A (max. - Page 25 Parker EME Technical Characteristics EMC limit values EMC interference emission Limit values according to EN 61000-6-4: 2001 for the industrial environment EMC disturbance immunity Limit values according to EN 61000-6-2: 2001 for the industrial environment Environmental requirements Compax3F General ambient conditions...
-
Page 26: Index
Conditions of utilization for CE-conform Technical Characteristics • 24 operation • 11 Type specification plate Compax3 Fluid • 7 Connection between PC and Compax3 • 4 Connection of the digital Outputs/Inputs • 21 Connections of the encoder interface • 20, 22 Usage in accordance with intended purpose •... - Page 27 Parker EME Index 192-121100 N7 December 2010...
- Page 28 Index Hydraulics Controller 192-121100 N7 December 2010...
