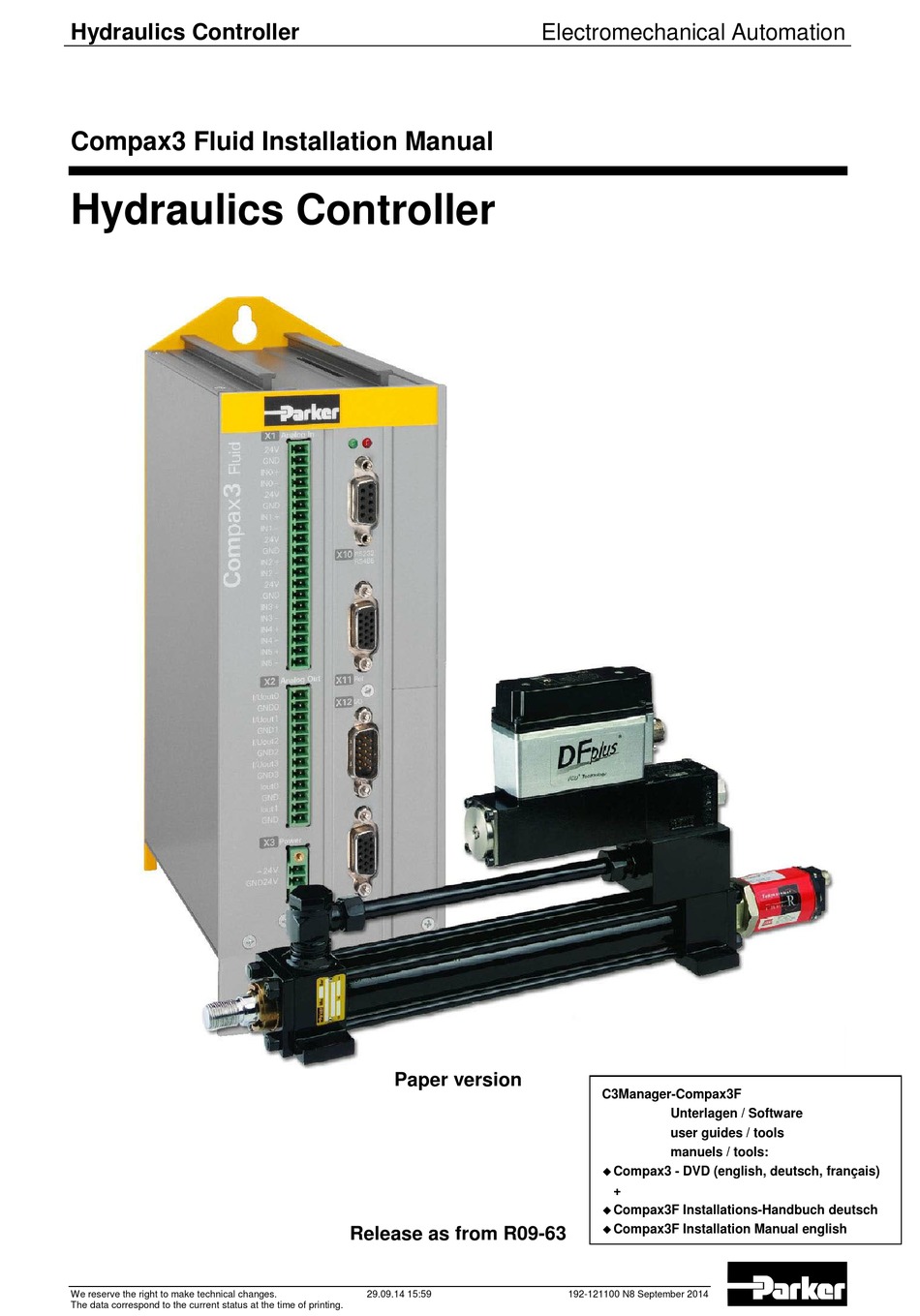

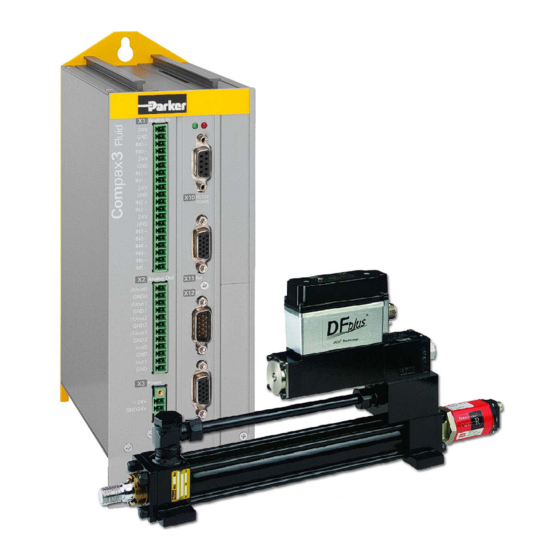

Hydraulics Controller
Compax3 Fluid Installation Manual
Hydraulics Controller
We reserve the right to make technical changes.
The data correspond to the current status at the time of printing.
Paper version
Release as from R09-63
29.09.14 15:59
Electromechanical Automation
C3Manager-Compax3F
Unterlagen / Software
user guides / tools
manuels / tools:
Compax3 - DVD (english, deutsch, français)
+
Compax3F Installations-Handbuch deutsch
Compax3F Installation Manual english
192-121100 N8 September 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Compax3F Fluid and is the answer not in the manual?

Questions and answers

Summary of Contents for Parker Compax3F Fluid

  • Page 1 Hydraulics Controller Electromechanical Automation Compax3 Fluid Installation Manual Hydraulics Controller Paper version C3Manager-Compax3F Unterlagen / Software user guides / tools manuels / tools: Compax3 - DVD (english, deutsch, français)  Compax3F Installations-Handbuch deutsch   Compax3F Installation Manual english Release as from R09-63 We reserve the right to make technical changes.
  • Page 2 Parker Hannifin GmbH - Sitz: Bielefeld HRB 35489 Geschäftsführung: Ellen Raahede Secher, Dr.-Ing. Hans-Jürgen Haas, Günter Schrank, Kees Veraart - Vorsitzender der Aufsichtsrates: Hansgeorg Greuner Parker Hannifin Manufacturing Srl • SSD SBC • Electromechanical Automation • Via Italy: Gounod, 1 I-20092 Cinisello Balsamo (MI), Italy Tel.: +39 (0)2 361081 •...
  • Page 3: Notes On The Documents Supplied

    Furthermore, the "Parker Integrated Engineering Tool", a software tool for the project Engineering Tool management of several Parker Motion Control products, can be found on the C3 DVD. Several axes are managed in a common project. The Compax3 ServoManager is integrated per "Plug &...
  • Page 4: C3 Servomanager

    Notes on the Documents Supplied Hydraulics Controller C3 ServoManager Installation of the The Compax3 ServoManager can be installed directly from the Compax3 DVD. C3 ServoManager Click on the corresponding hyperlink resp. start the installation program "C3Mgr_Setup_V..exe" and follow the instructions. PC requirements Recommendation: Operating system:...
  • Page 5: Table Of Contents

    C3 ServoManager Parker EME Contents 1. Notes on the Documents Supplied ............3 C3 ServoManager ..................4 2. Introduction ..................... 6 Device assignment Compax3 Fluid ............6 Scope of delivery ..................6 Type specification plate Compax3 Fluid ..........7 Packaging, transport, storage ..............8 Safety instructions ...................
  • Page 6: Introduction

    Introduction Hydraulics Controller 2. Introduction In this chapter you can read about: Device assignment Compax3 Fluid ..................6 Scope of delivery ....................... 6 Type specification plate Compax3 Fluid ................7 Packaging, transport, storage .................... 8 Safety instructions ......................9 Warranty conditions ......................10 Conditions of utilization for CE-conform operation ............
  • Page 7: Type Specification Plate Compax3 Fluid

    Type specification plate Compax3 Fluid Parker EME Type specification plate Compax3 Fluid You will find the exact description of the device on the type specification plate, which is located on the right side of the device: Type specification plate Compax3...
  • Page 8: Packaging, Transport, Storage

    Introduction Hydraulics Controller Packaging, transport, storage Packaging material and transport Caution! The packaging material is inflammable, if it is disposed of improperly by burning, lethal fumes may develop. The packaging material must be kept and reused in the case of a return shipment. Improper or faulty packaging may lead to transport damages.
  • Page 9: Safety Instructions

    Safety instructions Parker EME Safety instructions In this chapter you can read about: General hazards ........................ 9 Safety-conscious working ....................9 Special safety instructions ....................9 2.5.1. General hazards General Hazards on Non-Compliance with the Safety Instructions The device described in this manual is designed in accordance with the latest technology and is safe in operation.
  • Page 10: Warranty Conditions

     transformers, contactors etc.). Do not place mains filter output cable parallel to the load cable.  Make sure to use only the accessories recommended by Parker Accessories: Connect all cable shields at both ends, ensuring large contact areas! Warning: This is a product in the restricted sales distribution class according to EN 61000-6-4.
  • Page 11: Ec Declaration Of Conformity Compax3F

    EC declaration of conformity Compax3F Parker EME EC declaration of conformity Compax3F 192-121100 N8 September 2014...
  • Page 12: Compax3F Device Description

    Compax3F device description Hydraulics Controller 3. Compax3F device description State of delivery Compax3 is delivered without configuration! After switching on the 24VDC supply, the red LED is flashing while the green LED is dark. Please configure the device with the help of the Windows-Software "Compax3 ServoManager"! Plug and connector assignment Compax3 Fluid In this chapter you can read about:...
  • Page 13: Plug And Connector Assignment

    Plug and connector assignment Compax3 Fluid Parker EME 3.2.2. Plug and connector assignment Analog Inputs Analog Outputs 24 VDC power supply RS232/RS485 2. Feedback Type Inputs/Outputs 1. Feedback Type Caution! Always switch devices off before wiring them! 192-121100 N8 September 2014...
  • Page 14: Plug And Connector Assignment Complete

    Compax3F device description Hydraulics Controller 3.2.3. Plug and connector assignment complete The fitting of the different plugs depends on the extension level of Compax3. In part, In detail: the assignment depends on the Compax3 option implemented. Compax3F X20/1 X10/1 X10/1 X10/1 RS485 +5V RS485 +5V...
  • Page 15: Analog Input (Plug X1)

    Plug and connector assignment Compax3 Fluid Parker EME 3.2.4. Analog Input (plug X1) Connector X1 Pin Description Combicon 3.81mm; female connector Supply Sensor 0 Supply Sensor 0 IN0+ Signal Sensor 0 + IN0- Signal Sensor 0 - Supply Sensor 1...
  • Page 16: Analog Output (Plug X2)

    Compax3F device description Hydraulics Controller 3.2.5. Analog Output (plug X2) Plug X2 Description Combicon 3.81mm; female connector I/U Aout0 ±10V/10mA or 4..20mA GND 0 I/U Aout1 ±10V/10mA or 4..20mA GND 1 I/U Aout2 ±10V/10mA or 4..20mA GND 2 I/U Aout3 ±10V/10mA or 4..20mA GND 3 Iout 0...
  • Page 17: Voltage Supply (Plug X3)

    Plug and connector assignment Compax3 Fluid Parker EME 3.2.6. Voltage supply (plug X3) Connector X3 Pin Description Combicon 5mm +24 V 24 VDC (power supply) GND24V Voltage supply 24VDC Controller type Compax3 F001 D2 Voltage range 21 - 27VDC Mains module...
  • Page 18: Analog / Encoder (Plug X11)

    Compax3F device description Hydraulics Controller 3.2.8. Analog / Encoder (plug X11) The following position sensors can be connected via X11: RS422 Encoder (max. 5MHz, (track A or B) or step/direction)  SSI (RS422)  Start / Stop (Time of Flight, RS422) ...
  • Page 19: Digital Inputs/Outputs (Plug X12)

    Plug and connector assignment Compax3 Fluid Parker EME 3.2.9. Digital inputs/outputs (plug X12) Pin X12 Input/output I/O / X12 High density/Sub D Output +24 V DC output (max. 340mA) Output 0 (max. 100 mA) Output 1 (max. 100mA) Output 2 (max. 100mA) Output 3 (max.
  • Page 20: Feedback (Connector X13)

    Compax3F device description Hydraulics Controller 3.2.10. Feedback (connector X13) The following position sensors can be connected via X13: 1VSS SineCosine (max. 400Hz)  RS422 Encoder (max. 5MHz, (track A or B) or step/direction)  SSI (RS422)  Start / Stop (Time of Flight, RS422) ...
  • Page 21: Mounting And Dimensions

    Plug and connector assignment Compax3 Fluid Parker EME 3.2.11. Mounting and dimensions Mounting: 3 socket head screws M5 or  by direct snapping on a 35 mm supporting rail (according to DIN EN 50 022),  Mounting material: DIN rail clip and distance piece available as accessories - Set...
  • Page 22: Technical Characteristics

    Technical Characteristics Hydraulics Controller 4. Technical Characteristics Voltage supply 24VDC Controller type Compax3 F001 D2 Voltage range 21 - 27VDC Mains module with switch-on current limitation, due to capacitive load Fuse MTP miniature circuit breaker or "delayed action fuse", due to capacitive load Current drain of the device 0.8A (max.
  • Page 23 Plug and connector assignment Compax3 Fluid Parker EME EMC limit values EMC interference emission Limit values according to EN 61000-6-4: 2001 for the industrial environment EMC disturbance immunity Limit values according to EN 61000-6-2: 2001 for the industrial environment Environmental requirements Compax3F...
  • Page 24: Index

    Index Hydraulics Controller 5. Index Analog / Encoder (plug X11) • 18 Safety instructions • 9 Analog Input (plug X1) • 15 Safety-conscious working • 9 Analog Output (plug X2) • 16 Scope of delivery • 6 Special safety instructions • 9 State of delivery •...
