November, 2018
HSB25

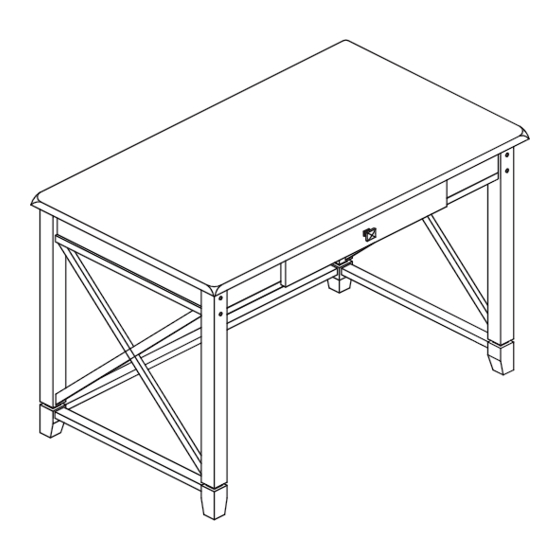

HILLSBORO WRITING DESK
Assembly Instructions - Important:
Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when
assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or
information on other products, please visit our website: www.officestar.net or call or write us.
Advertisement
Table of Contents
Related Manuals for OSP Home Furnishings HSB25
Summary of Contents for OSP Home Furnishings HSB25
- Page 1 November, 2018 HSB25 HILLSBORO WRITING DESK Assembly Instructions - Important: Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or...
- Page 2 LIMITED WARRANTY OSP Home Furnishings™ warrants to the original purchaser that this product will be free from defects in material and workmanship as described below. OSP Home Furnishings™ will repair or replace, at its option, without charge to the original purchaser only, defective products or parts for one (1) year from the date of purchase.
- Page 3 PARTS (A) Top (1 PC) (B) Stretcher (1PC) (C) Left Leg (1 PC) (D) Right Leg (1 PC) HARDWARE LIST DRAWING DESCRIPTION SIZE QUANTITY Short Bolt 1/4 x 35mm 2 PCS Long Bolt 1/4 x 60mm 8 PCS Screw 4 x 35mm 2 PCS Lock Washer 1/4”...
- Page 4 STEP 1 DO NOT FULLY TIGHTEN BOLTS (1 & 2). STEP 2 FULLY TIGHTEN ALL BOLTS AND SCREWS (3).
- Page 5 STEP 3 FULLY TIGHTEN ALL BOLTS (6). STEP 4 SLIDE DRAWER INTO TOP (A).
