June, 2019
BNN275 / BKS275 / MED275 / HSB275

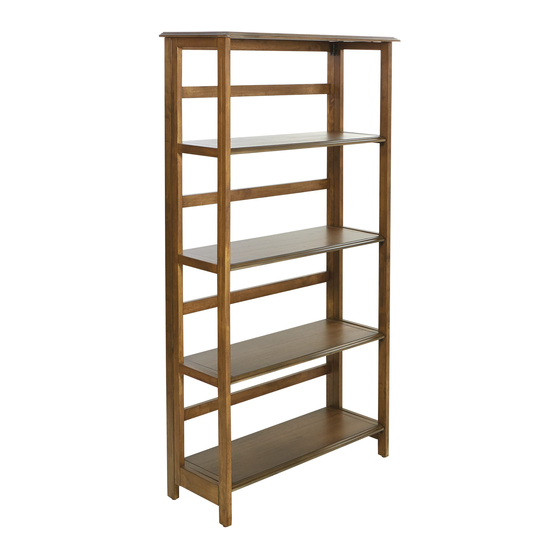

5-SHELF BOOKCASE
BNN275
MED275
HSB275
BKS275
Assembly Instructions - Important:
Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when
assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or
information on other products, please visit our website: www.officestar.net or call or write us.
Advertisement
Table of Contents
Related Manuals for OSP Home Furnishings BNN275
Summary of Contents for OSP Home Furnishings BNN275
- Page 1 June, 2019 BNN275 / BKS275 / MED275 / HSB275 5-SHELF BOOKCASE BNN275 MED275 HSB275 BKS275 Assembly Instructions - Important: Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or...
- Page 2 LIMITED WARRANTY OSP Home Furnishings™ warrants to the original purchaser that this product will be free from defects in material and workmanship as described below. OSP Home Furnishings™ will repair or replace, at its option, without charge to the original purchaser only, defective products or parts for one (1) year from the date of purchase.
- Page 3 PARTS (A) Top (1 PC) (B) Frame (1 PC) HARDWARE LIST DRAWING DESCRIPTION SIZE QUANTITY Bolt 1/4” x 30mm 2 PCS Wooden Dowel 8 x 30mm 2 PCS Allen Wrench 1 PC Anti-Tip Kit 1 PC Phillips Screwdriver also needed for assembly (not provided).
- Page 4 STEP 1 TILT FRAME (B) PRIOR TO UNFOLDING. STEP 2 UNFOLD ARMS OF FRAME (B).
- Page 5 STEP 3 ADJUST SUPPORT PINS TO FIT INTO SHELF. LOWER SHELVES ONTO SUPPORT PINS. STEP 4 INSERT TWO WOODEN DOWELS (2) INTO TOP (A). SECURE TOP (A) TO FRAME (B) USING TWO BOLTS (1). FULLY TIGHTEN ALL BOLTS (1).
- Page 6 ANTI-TIP KIT INSTALLATION STEPS: Place shelf in desired location. Secure one Bracket to wall using one Long Screw, FULLY TIGHTEN LONG SCREW USING PHILLIPS SCREWDRIVER (not provided). Secure remaining Bracket to rear of shelf using one Short Screw, FULLY TIGHTEN SHORT SCREW USING PHILLIPS SCREWDRIVER (not provided). Loop Safety Strap through Brackets and fasten Safety Strap.
