November, 2019
HGN783

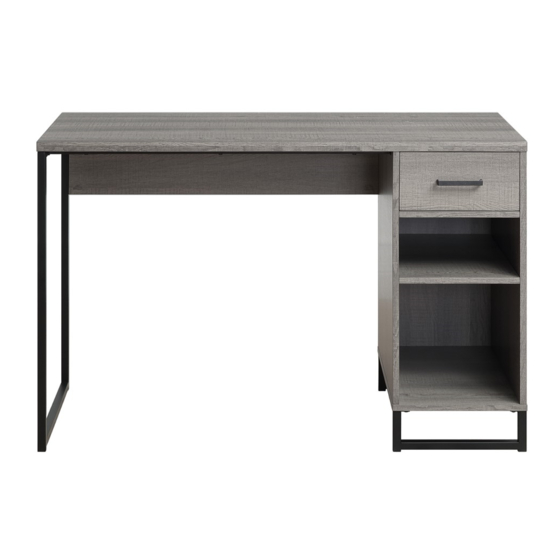

HAGNEY LANE DESK
Assembly Instructions - Important:
Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when
assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or
information on other products, please visit our website: www.officestar.net or call or write us.
Advertisement
Related Manuals for OSP Home Furnishings HAGNEY HGN783
Summary of Contents for OSP Home Furnishings HAGNEY HGN783
- Page 1 November, 2019 HGN783 HAGNEY LANE DESK Assembly Instructions - Important: Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or information on other products, please visit our website: www.officestar.net or call or write us.
-
Page 2: Limited Warranty
LIMITED WARRANTY OSP Home Furnishings™ warrants to the original purchaser that this product will be free from defects in material and workmanship as described below. OSP Home Furnishings™ will repair or replace, at its option, without charge to the original purchaser only, defective products or parts for one (1) year from the date of purchase. - Page 3 3. Rename all English discriptions to French discriptions. PARTS (A) Top Panel (1 PC) (B) Left Frame (1 PC) (C) Left Side Panel (1 PC) (D) Right Side Panel (1 PC) (E) Cross Rail (1 PC) (F) Bottom Panel (1 PC) (G) Right Frame (2 PCS) (H) Support (1 PC) (I) Left Rear Panel (1 PC)
- Page 4 3. Rename all English discriptions to French discriptions. PARTS (K) Adjustable Shelf (1 PC) (L) Drawer Front Panel (1 PC) (M) Drawer Left Side Panel (1 PC) (N) Drawer Right Side Panel (1 PC) (O) Drawer Rear Panel (1 PC) (P) Drawer Bottom Panel (1 PC)
-
Page 5: Hardware List
HARDWARE LIST DRAWING DESCRIPTION SIZE QUANTITY Screw #6.5 x 1/2” 12 PCS + 2 EXTRA Screw Ø6 x 14mm 10 PCS + 2 EXTRA Nail Screw 20 PCS + 2 EXTRA Screw Ø6 x 30mm 6 PCS + 1 EXTRA Screw #10 x 1-1/2”... - Page 6 HARDWARE LIST DRAWING DESCRIPTION SIZE QUANTITY Handle 1 PC Sticker 3 PCS Phillips Screwdriver and hammer also needed for assembly (not provided). CAM LOCK INSTRUCTIONS 180°...
- Page 7 STEP 1 FULLY TIGHTEN ALL CAM BOLTS (9) USING PHILLIPS SCREWDRIVER (NOT PROVIDED). STEP 2 (15) (15) (13) FULLY TIGHTEN ALL CAM BOLTS (9) AND SCREWS (1) USING PHILLIPS SCREWDRIVER (NOT PROVIDED).
- Page 8 STEP 3 (14) (13) (14) FULLY TIGHTEN ALL CAM BOLTS (9) AND SCREWS (1) USING PHILLIPS SCREWDRIVER (NOT PROVIDED). STEP 4 (13)
- Page 9 STEP 5 (10) FULLY TIGHTEN ALL CAM BOLTS (10) USING PHILLIPS SCREWDRIVER (NOT PROVIDED). STEP 6 FULLY TIGHTEN ALL SCREWS (2) USING PHILLIPS SCREWDRIVER (NOT PROVIDED).
- Page 10 STEP 7 (12) FULLY TIGHTEN CAM NUTS (12) USING PHILLIPS SCREWDRIVER (NOT PROVIDED). STEP 8 FULLY TIGHTEN SCREWS (5) USING PHILLIPS SCREWDRIVER (NOT PROVIDED).
- Page 11 STEP 9 (12) FULLY TIGHTEN SCREWS AND CAM NUTS (12) USING PHILLIPS SCREWDRIVER (NOT PROVIDED). STEP 10 (12) FULLY TIGHTEN SCREWS (4) AND CAM NUTS (12) USING PHILLIPS SCREWDRIVER (NOT PROVIDED).
- Page 12 STEP 11 (18) (18) STEP 12 FULLY TIGHTEN ALL NAIL SCREWS (3) USING HAMMER (NOT PROVIDED).
- Page 13 STEP 13 FULLY TIGHTEN CAM SCREWS (8) USING PHILLIPS SCREWDRIVER (NOT PROVIDED). STEP 14 (11) FULLY TIGHTEN CAM NUTS (11) USING PHILLIPS SCREWDRIVER (NOT PROVIDED).
- Page 14 STEP 15 STEP 16 FULLY TIGHTEN SCREWS (5) USING PHILLIPS SCREWDRIVER (NOT PROVIDED).
- Page 15 STEP 17 (16) (16) (17) (17) FULLY TIGHTEN ALL SCREWS (1) USING PHILLIPS SCREWDRIVER (NOT PROVIDED). STEP 18 (19) FULLY TIGHTEN ALL SCREWS (7) USING PHILLIPS SCREWDRIVER (NOT PROVIDED).
- Page 16 STEP 19 STEP 20 (20) (20)
