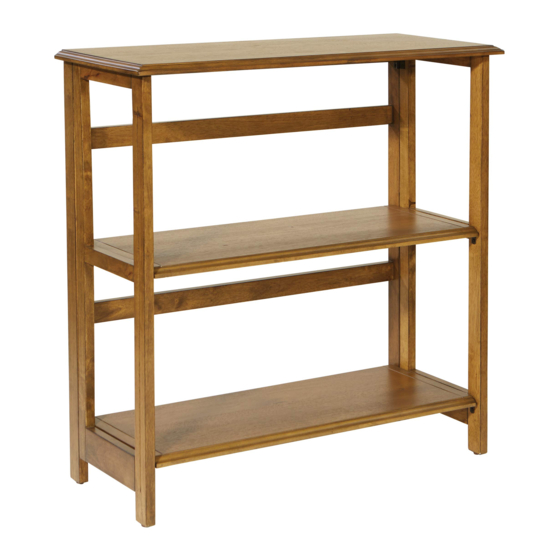

OSP Home Furnishings BNN27 Assembly Instructions

3-shelf bookcase

Table of Contents

Download this manual

June, 2019

BNN27 / BKS27 / MED27 / HSB27

3-SHELF BOOKCASE

BNN27

BKS27

MED27

HSB27

Assembly Instructions - Important:

Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when

assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or

information on other products, please visit our website: www.officestar.net or call or write us.

Table of Contents

Do you have a question about the BNN27 and is the answer not in the manual?

Page 1 June, 2019 BNN27 / BKS27 / MED27 / HSB27 3-SHELF BOOKCASE BNN27 BKS27 MED27 HSB27 Assembly Instructions - Important: Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or...
Page 2 LIMITED WARRANTY OSP Home Furnishings™ warrants to the original purchaser that this product will be free from defects in material and workmanship as described below. OSP Home Furnishings™ will repair or replace, at its option, without charge to the original purchaser only, defective products or parts for one (1) year from the date of purchase.
Page 3 PARTS (A) Top (1 PC) (B) Frame (1 PC) HARDWARE LIST DRAWING DESCRIPTION SIZE QUANTITY Bolt 1/4” x 30mm 2 PCS Wooden Dowel 8 x 30mm 2 PCS Allen Wrench 1 PC Anti-Tip Kit 1 PC Phillips Screwdriver also needed for assembly (not provided). STEP 1 TILT FRAME (B) PRIOR TO UNFOLDING.
Page 4 STEP 2 UNFOLD ARMS OF FRAME (B). STEP 3 ADJUST SUPPORT PINS TO FIT INTO SHELF. LOWER SHELVES ONTO SUPPORT PINS.
Page 5 STEP 4 INSERT TWO WOODEN DOWELS (2) INTO TOP (A). SECURE TOP (A) TO FRAME (B) USING TWO BOLTS (1). FULLY TIGHTEN ALL BOLTS (1). ANTI-TIP KIT INSTALLATION STEPS: Place shelf in desired location. Secure one Bracket to wall using one Long Screw, FULLY TIGHTEN LONG SCREW USING PHILLIPS SCREWDRIVER (not provided).
