AWK-4131

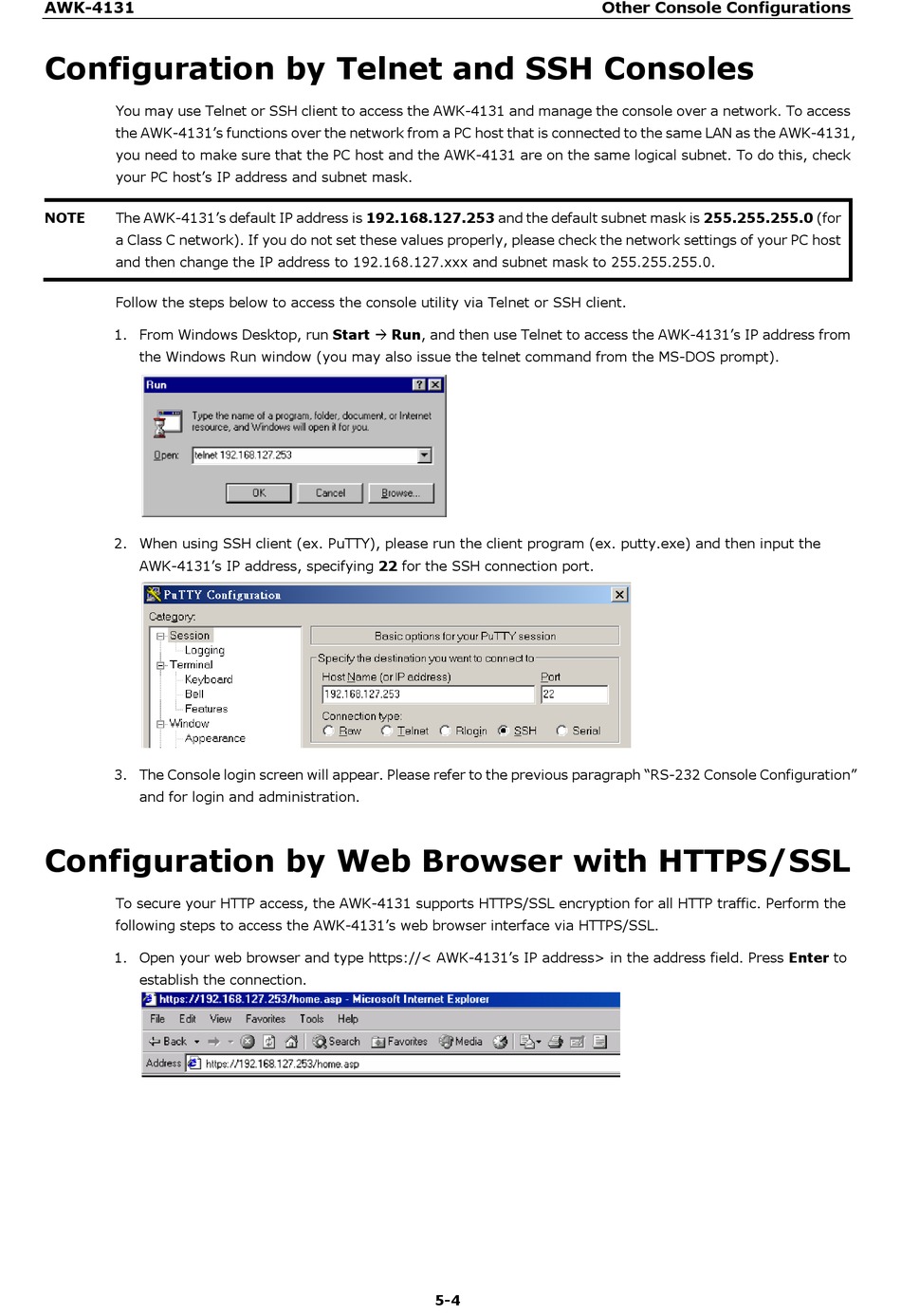

Configuration by Telnet and SSH Consoles

You may use Telnet or SSH client to access the AWK-4131 and manage the console over a network. To access
the AWK-4131's functions over the network from a PC host that is connected to the same LAN as the AWK-4131,
you need to make sure that the PC host and the AWK-4131 are on the same logical subnet. To do this, check
your PC host's IP address and subnet mask.
NOTE The AWK-4131's default IP address is 192.168.127.253 and the default subnet mask is 255.255.255.0 (for
a Class C network). If you do not set these values properly, please check the network settings of your PC host
and then change the IP address to 192.168.127.xxx and subnet mask to 255.255.255.0.
Follow the steps below to access the console utility via Telnet or SSH client.
1. From Windows Desktop, run Start  Run, and then use Telnet to access the AWK-4131's IP address from
the Windows Run window (you may also issue the telnet command from the MS-DOS prompt).
2. When using SSH client (ex. PuTTY), please run the client program (ex. putty.exe) and then input the
AWK-4131's IP address, specifying 22 for the SSH connection port.
3. The Console login screen will appear. Please refer to the previous paragraph "RS-232 Console Configuration"
and for login and administration.

Configuration by Web Browser with HTTPS/SSL

To secure your HTTP access, the AWK-4131 supports HTTPS/SSL encryption for all HTTP traffic. Perform the
following steps to access the AWK-4131's web browser interface via HTTPS/SSL.
1. Open your web browser and type https://< AWK-4131's IP address> in the address field. Press Enter to
establish the connection.
Other Console Configurations
5-4
