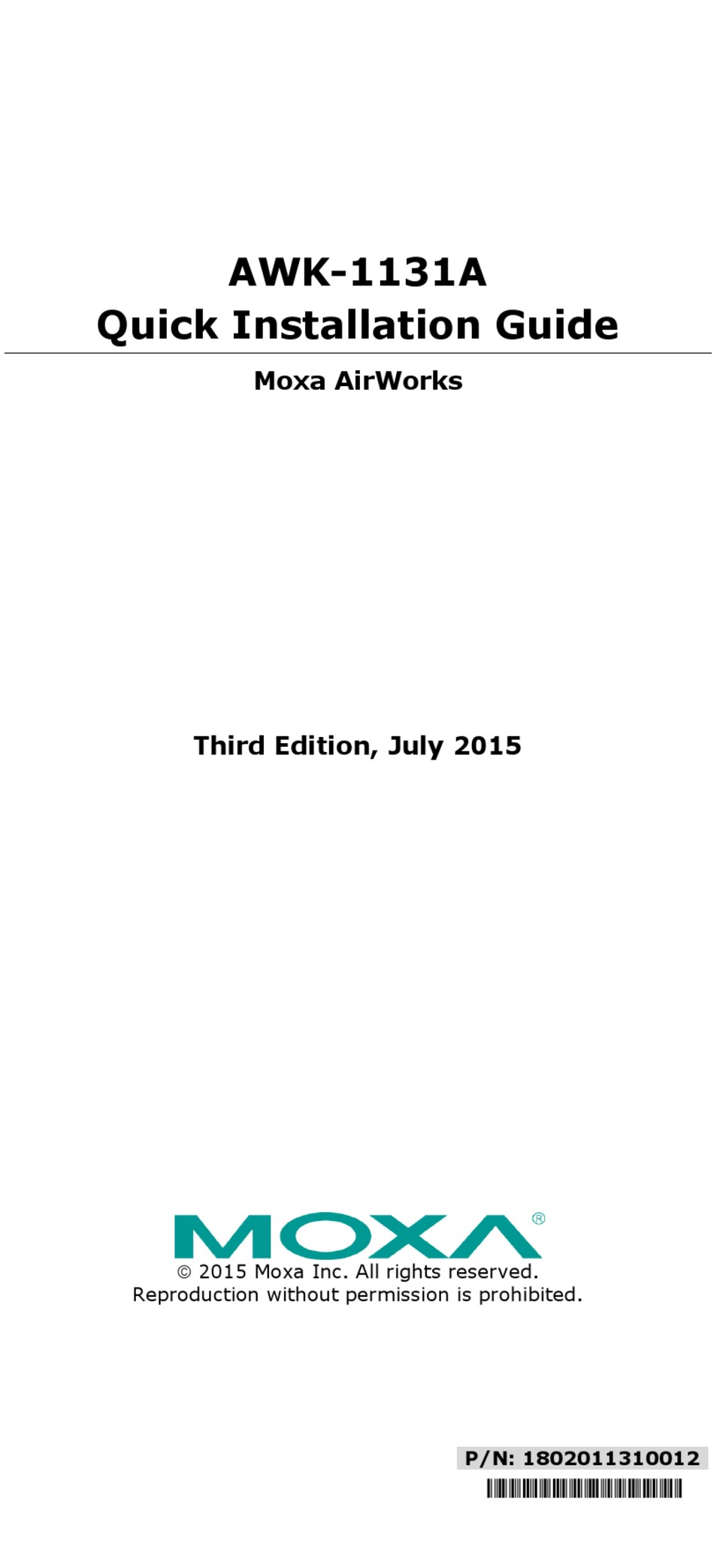

- Page 1 AWK-1131A Quick Installation Guide Moxa AirWorks Third Edition, July 2015 2015 Moxa Inc. All rights reserved. Reproduction without permission is prohibited. P/N: 1802011310012 1802011310012...
-
Page 2: Package Checklist

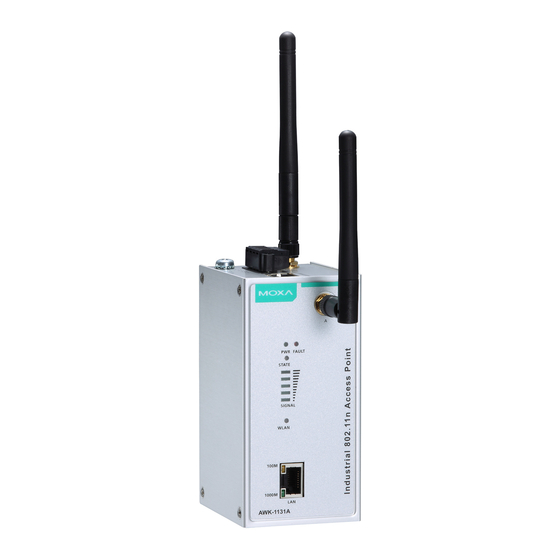

The AWK-1131A industrial wireless Access Point meets the growing need for faster data transmission speeds by supporting IEEE 802.11n technology with a net data rate of up to 300 Mbps. The AWK-1131A is compliant with the industrial standards and approvals, covering operating temperature, power input voltage, surge, ESD and vibration. - Page 3 Panel Layout of the AWK-1131A Top Panel View 1. Grounding screw (M5) 2. Terminal block for PWR1 and PWR2 3. RS-232 console port 4. Antenna B port 5. System LEDs: PWR, FAULT, and STATE LEDs 6. LEDs for signal strength 7.
-
Page 4: Mounting Dimensions
DIN-Rail Mounting The aluminum DIN-Rail attachment plate should be fixed to the back panel of the AWK-1131A when you take it out of the box. If you need to reattach the DIN-Rail attachment plate to the AWK-1131A, make sure the stiff metal spring is situated towards the top, as shown in the figures below. -
Page 5: Wall Mounting (Optional)
STEP 2: Mounting the AWK-1131A to a wall requires 4 screws. Use the AWK-1131A device, with wall mount plates attached, as a guide to mark the correct locations of the 4 screws. The heads of the screws should be less than 6.0 mm in diameter, and the shafts should be less... -
Page 6: Wiring Requirements
Wiring Requirements WARNING Safety First! Be sure to disconnect the power cord before installing and/or wiring your Moxa AWK-1131A. WARNING Safety First! Calculate the maximum possible current in each power wire and common wire. Observe all electrical codes dictating the maximum current allowed for each wire size. -
Page 7: Wiring The Redundant Power Inputs
Wiring the Redundant Power Inputs The 4-contact terminal block connector on the AWK-1131A’s top panel is used for the AWK-1131A’s two DC inputs. The top and front views of the terminal block connector are shown here. STEP 1: Insert the negative/positive DC wires into the V-/V+ terminals. -
Page 8: Communication Connections
The AWK-1131A has one RS-232 (8-pin RJ45) console port located on the top panel. Use either an RJ45-to-DB9 or RJ45-to-DB25 cable to connect the Moxa AWK-1131A’s console port to your PC’s COM port. You may then use a console terminal program to access the AWK-1131A for console configuration. -
Page 9: Led Indicators
LED Indicators The front panel of the Moxa AWK-1131A contains several LED indicators. The function of each LED is described in the table below. Color State Description Front Panel LED Indicators (System) Power is being supplied from power input 1. -
Page 10: Specifications
Specifications WLAN Interface Standards IEEE 802.11a/b/g/n for Wireless LAN IEEE 802.11i for Wireless Security IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseTX IEEE 802.3ab for 1000BaseT Spread Spectrum and DSSS with DBPSK, DQPSK, CCK Modulation (typical) OFDM with BPSK, QPSK, 16QAM, 64QAM 802.11b: CCK @ 11/5.5 Mbps •... - Page 11 TX Transmit Power 802.11b: • Typ. 23±1.5 dBm @ 1 Mbps • Typ. 23±1.5 dBm @ 2 Mbps • Typ. 20±1.5 dBm @ 5.5 Mbps • Typ. 19±1.5 dBm @ 11 Mbps 802.11g: • Typ. 20±1.5 dBm @ 6 to 24 Mbps •...
- Page 12 Details See www.moxa.com/support/warranty.aspx ATTENTION The AWK-1131A is NOT a portable mobile device and should be located at least 20 cm away from the human body. The AWK-1131A is NOT designed for the general public. To deploy AWK-1131As and establish a wireless network safely, a well-trained technician is required for installation.
- Page 13 ATTENTION Use the antennas correctly: The 2.4 GHz antennas are needed when the AWK-1131A operates in IEEE 802.11b/g/n. The 5 GHz antennas are needed for IEEE802.11a/n. Make sure your antenna installation is within a safety area, which is covered by a lightning protection or surge arrest system.
- Page 14 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: +1-714-528-6777 Tel: +86-21-5258-9955 Fax: +1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel: +49-89-3 70 03 99-0 Tel: +886-2-8919-1230 Fax: +49-89-3 70 03 99-99 Fax: +886-2-8919-1231 - 14 -...
