Page 1: Quick Installation Guide

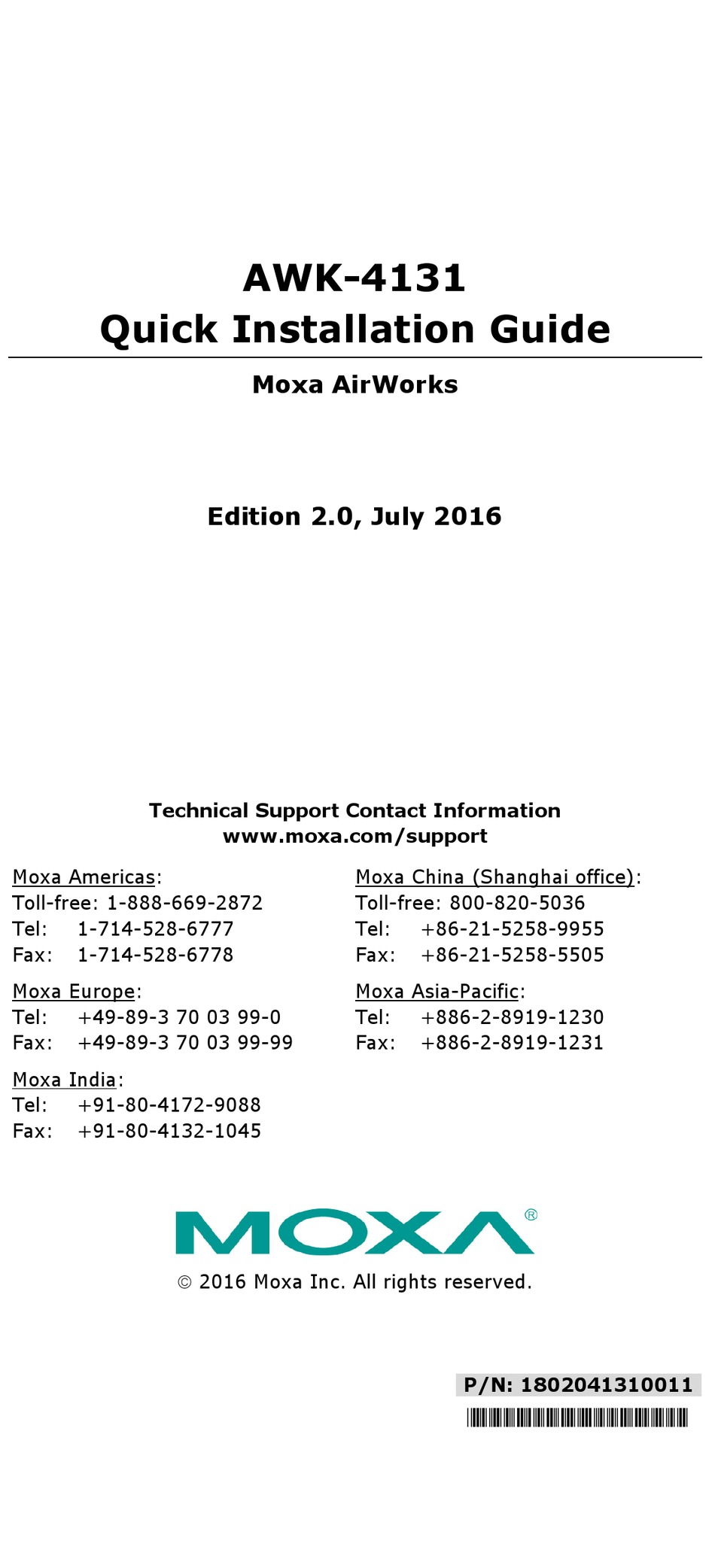

AWK-4131 Quick Installation Guide Moxa AirWorks Edition 2.0, July 2016 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel: +49-89-3 70 03 99-0... -
Page 2: Notes For The Reader
NOTE Highlights important information related to this product. Package Checklist Moxa’s AWK-4131 is shipped with the following items. If any of these items is missing or damaged, please contact your customer service representative for assistance. -
Page 3: Recommended Sfp Accessories
0 to 60°C. • SFP-1GEZXLC-120: Small form factor pluggable transceiver with 1000BaseEZX, LC, 120 km, 0 to 60°C. NOTE The above items come with the AWK-4131 standard version. The package contents for customized versions may be different. - 3 -... - Page 4 Panel Layout of the AWK-4131 1. Main antenna A. 2. Main antenna B. 3. LEDs for PWR, FAULT, STATE, WLAN and LAN. 4. M12 A-coding connector for PWR1 and PWR2. 5. M12 8-pin male connector for DI/DO 6. M12 8-pin female...
-
Page 5: Attaching Antennas
Rubber plate Antenna Metal N-type Step 1: Use your fingers and hold the antenna metal N-type connector. Step 2: Screw the antenna N-type connector (male) onto the AWK-4131 device’s N-type connector (female) Caution Do not hold the rubber plate to screw the antenna on to the AWK-4131 device. -
Page 6: Wall Mounting
Wall Mounting In most applications, wall mount provides an easier installation. You will find it quite easy to mount AWK-4131 on the wall, as illustrated below. STEP 1: STEP 2: Attach the wall-mounting kit Mounting the AWK-4131 on the wall with M4 screws, as shown in requires 4 screws. -
Page 7: Din-Rail Mounting (Optional)
DK-DC50131s is needed for DIN-rail mounting. To install the DIN-rail mounting kits, tightly attach the two DIN-rail mounting kits on the rear panel of AWK-4131 with 12 screws. (6 screws for each kit) To Install STEP 1: STEP 2:... -
Page 8: Wiring Requirements
WARNING Safety First! Be sure to disconnect the power cord before installing and/or wiring your Moxa AWK-4131. Calculate the maximum possible current in each power wire and common wire. Observe all electrical codes dictating the maximum current allowable for each wire size. If the current goes above the maximum ratings, the wiring could overheat, causing serious damage to your equipment. - Page 9 Installations with Cable Extended Antennas for Outdoor Applications If the antenna or the AWK device is installed outdoors or in an open-air setting, proper lightning protection is required to prevent direct lightning strikes on the AWK device. In order to prevent coupling currents from nearby lightning strikes, a lightning arrester should be installed as part of your antenna system.
-
Page 10: Wiring The Redundant Power Inputs
802.3af compliant power source or an IEC60950 compliant limited power source. When AWK-4131 is powered via DC power, the M12 A-coding connector on the bottom panel is used for the AWK-4131’s two redundant inputs. The pin assignment is shown below:... - Page 11 AWK-4131 has 10/100/1000BaseT(X) Ethernet ports (8-pin shielded M12 connector with A coding). The 10/100/1000BaseT(X) ports located on the AWK-4131’s bottom panel are used to connect to Ethernet-enabled devices. Below we show pinouts for both MDI (NIC-type) ports and MDI-X (HUB/Switch-type) ports.
-
Page 12: Installation
3. Test the plug to ensure the quality. RS-232 Connection The AWK-4131 has one RS-232 (8-pin RJ45) console port located on the bottom panel. Use either an RJ45-to-DB9 or RJ45-to-DB25 cable to connect the Moxa AWK-4131’s console port to your PC’s COM port. You may then use a console terminal program to access the AWK-4131 for console configuration. -
Page 13: Led Indicators
(and ports) are typically not labeled on the connector (or ports). Refer to the pinout diagram above for details. LED Indicators The front panel of the Moxa AWK-4131 contains several LED indicators. The function of each LED is described in the table below: Color... -
Page 14: Specifications
Specifications WLAN Interface Standards IEEE 802.11a/b/g/n for Wireless LAN IEEE 802.11i for Wireless Security IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseTX IEEE 802.3ab for 1000BaseT IEEE 802.3af for Power-over-Ethernet IEEE 802.1D for Spanning Tree Protocol IEEE 802.1w for Rapid STP IEEE 802.1Q VLAN Spread Spectrum and DSSS with DBPSK, DQPSK, CCK... -
Page 15: Protocol Support
RX Sensitivity 802.11b: -92 dBm @ 1 Mbps, -90 dBm @ 2 Mbps, -88 dBm @ 5.5 Mbps, -84 dBm @ 11 Mbps 802.11g: -87 dBm @ 6 Mbps, -86 dBm @ 9 Mbps, -85 dBm @ 12 Mbps, -82 dBm @ 18 Mbps, -80 dBm @ 24 Mbps, -76 dBm @ 36 Mbps, -72 dBm @ 48 Mbps,... - Page 16 connector) Digital Inputs (M12 2 electrically isolated inputs connector, male): • +13 to +30 V for state “1” • +3 to -30 V for state “0” • Max. input current: 8 mA Physical Characteristics Housing Metal, IP68 protection Weight 1.8 kg (3.97 lb) Dimensions 224 x 147.7 x 64.5 mm (8.82 x 5.82 x 2.54 in) Installation...
- Page 17 NOTE For installation flexibility, either the A antenna or the B antenna may be selected for use. Make sure the antenna connection matches the antenna configured in the AWK-4131 web interface. To protect the connectors and RF module, all radio ports should be terminated by either an antenna or a terminator.
