Goodrive350 series VFD Auto Station programmable expansion card
Secondary development platform

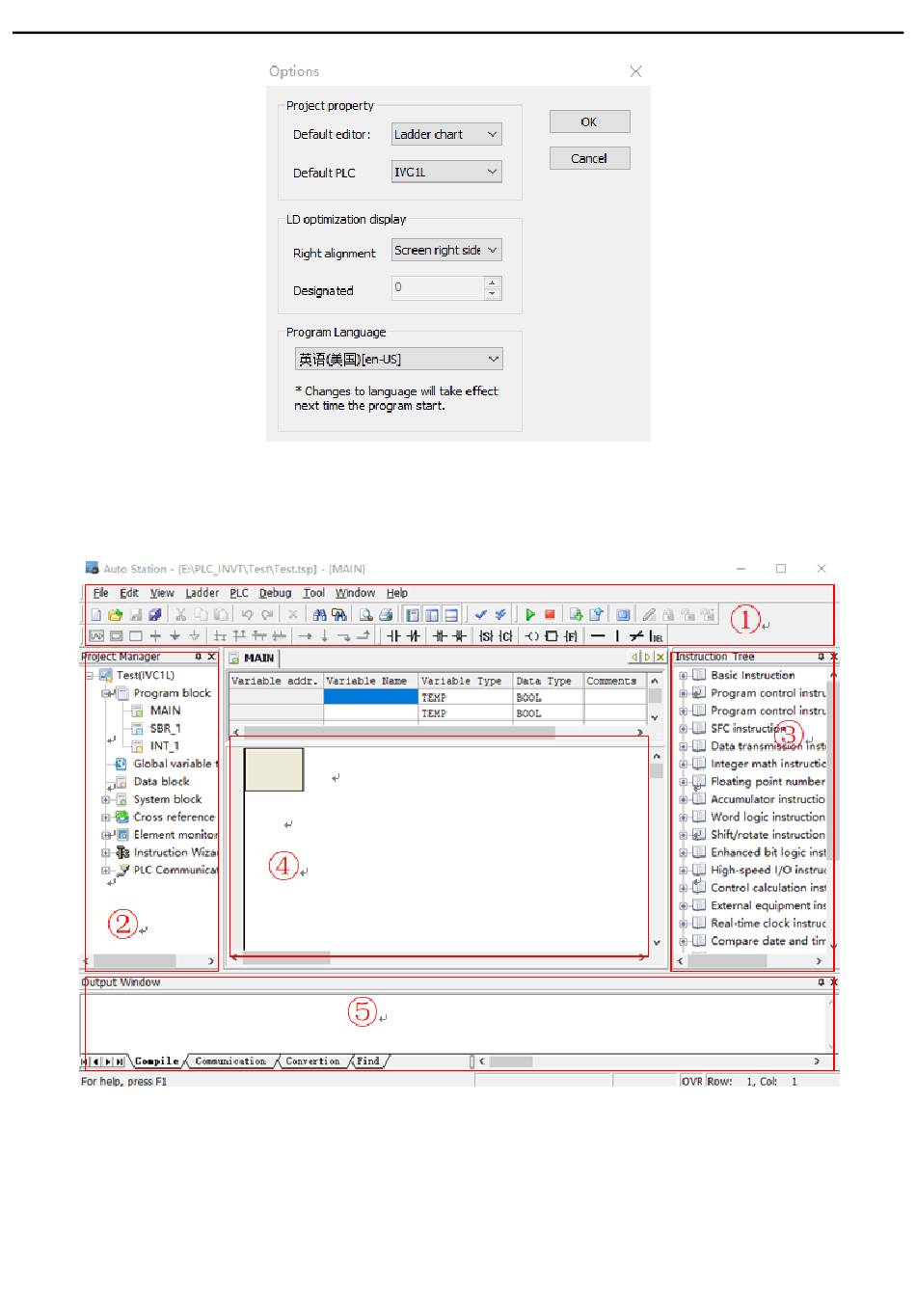

Figure 3.4 Default option settings
The interface that is displayed after the project creation is as follows:
Figure 3.5 New project interface
The interface can be divided into five areas:
Area ①: Menu and toolbar area. If you move the mouse over the toolbar area, the function of
the corresponding tool is displayed. You can choose View > Instruction List/Ladder/SFC to
change the program language. If a fault occurs, LED4 is blinking. You can choose PLC > PLC
-8-
