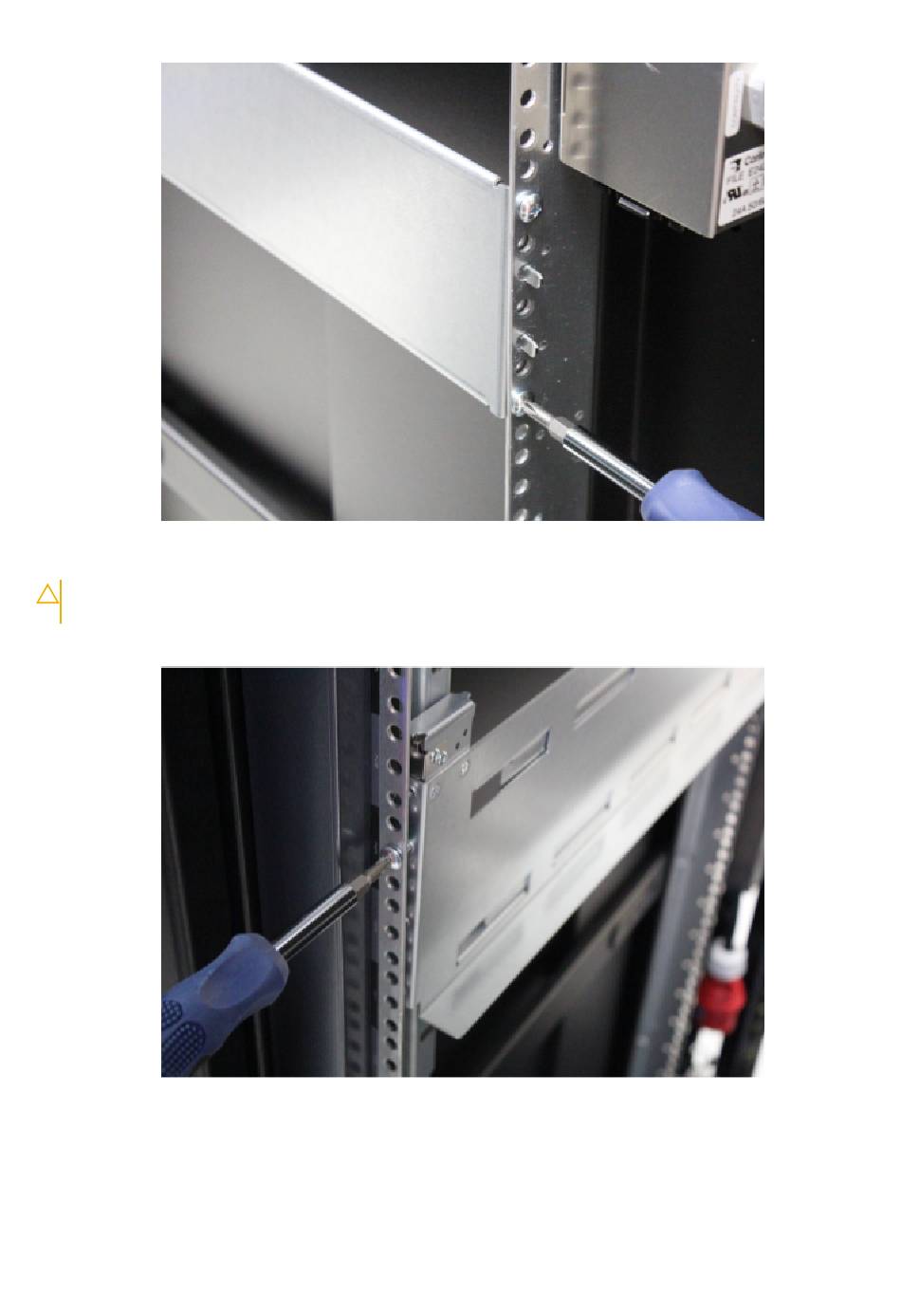

Figure 8. Insert screw in the back
CAUTION:
If the bracket is mounted in holes that are not vertically aligned from front to back, the bracket
may be damaged and mounting will not be secure.
4. Pull the adjustable sliding part of the bracket towards the front until it is close to, but not touching, the front of the rack.
Figure 9. Insert screw in the front
5. Attach the front of the brackets with two screws each in the two middle holes (innermost holes) as shown in the picture.
16
Install the System in the Rack
