Rail Bracket Inside; Rail Bracket Outside - Dell EMC Data Domain DD9800 Installation Manual

● 7.1 mm round holes
● .375 inch / 9.2 mm square holes
● M5, M6, 12-24, and 10-32 threaded holes
The controller rail kit includes the following items:
● Two bracket assemblies, one marked for the left side and one marked for the right side of the rack

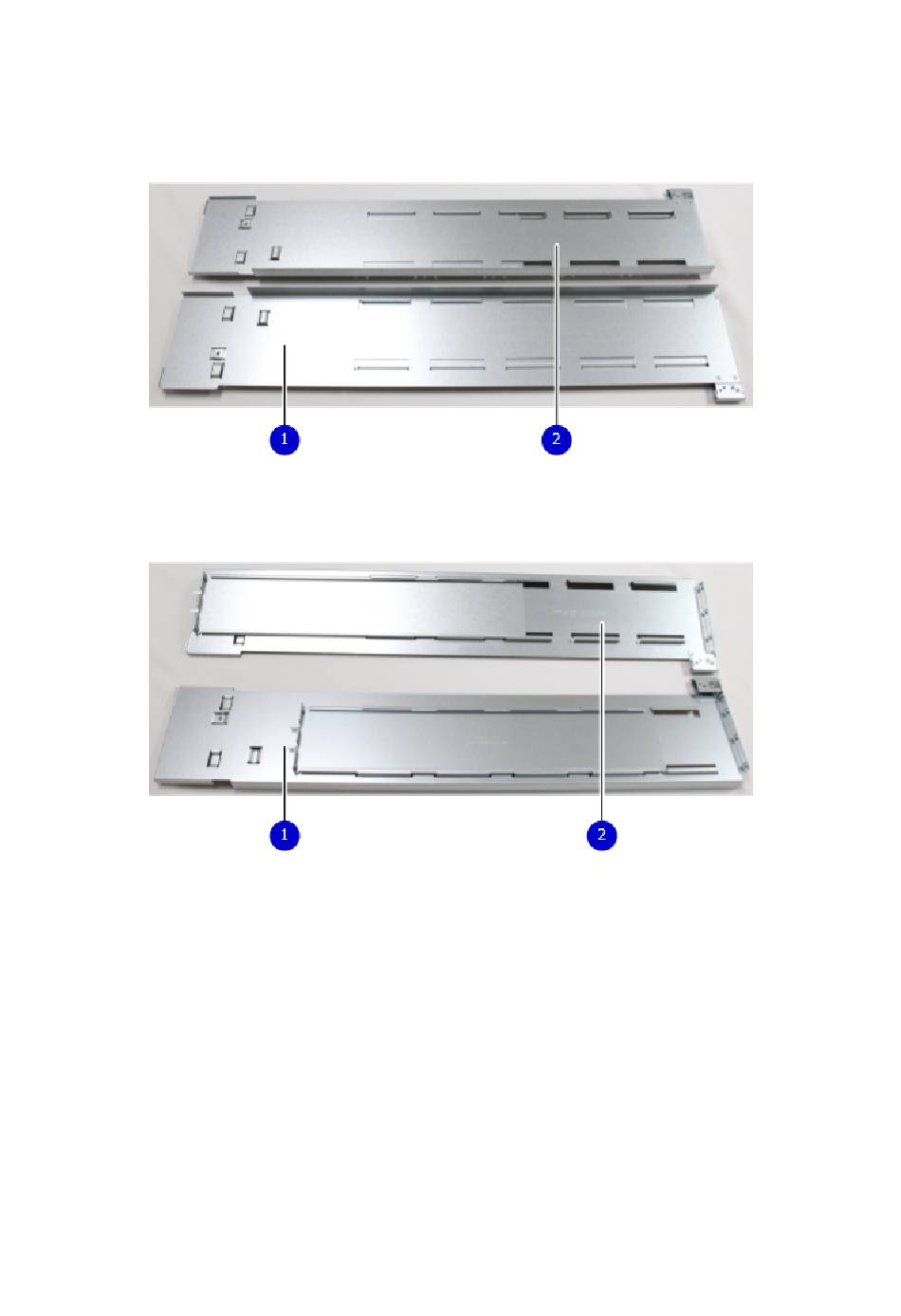

Figure 5. Rail bracket inside
1. Left inside bracket
2. Right inside bracket
Figure 6. Rail bracket outside
1. Left outside bracket
2. Right outside bracket
A cable management assembly (CMA), for organization of cables at the rear of the system, is already installed onto the DD9800
system on a Data Domain rack. For field installed systems, the CMA is shipped with the DD9800 system.
