www.ti.com
EVM User's Guide: BP-AM2BLDCSERVO
AM2x BLDC Servo Motor BoosterPack (BP-
AM2BLDCSERVO)
Description
The AM2x BLDC Servo Motor BoosterPack (BP-
AM2BLDCSERVO) is an add-on for the Sitara
AM2x MCU LaunchPad development boards which
provides a networked, industrial BLDC servo
development platform. Compatible with the AM243x
(LP-AM243) and the (AM263x) LP-AM263 LaunchPad
development boards, this BoosterPack provides up to
two axes BLDC 3-phase motor drive, in-phase current
feedback, Sigma-Delta current feedback, industrial
absolute encoder, and a single axis of resolver
feedback.
The attached AM2x LaunchPad natively provide an
array of industrial Ethernet, CAN, UART, LIN and
other connectivity and control peripherals of the AM2x
MCU. Together this LaunchPad and BoosterPack
system provide a complete platform for prototyping
networked, industrial BLDC servo drives.
Get Started
Texas Instruments
offers the
a resource for designing with the MCU+ software
and tools on supported devices. The MCU+ Academy

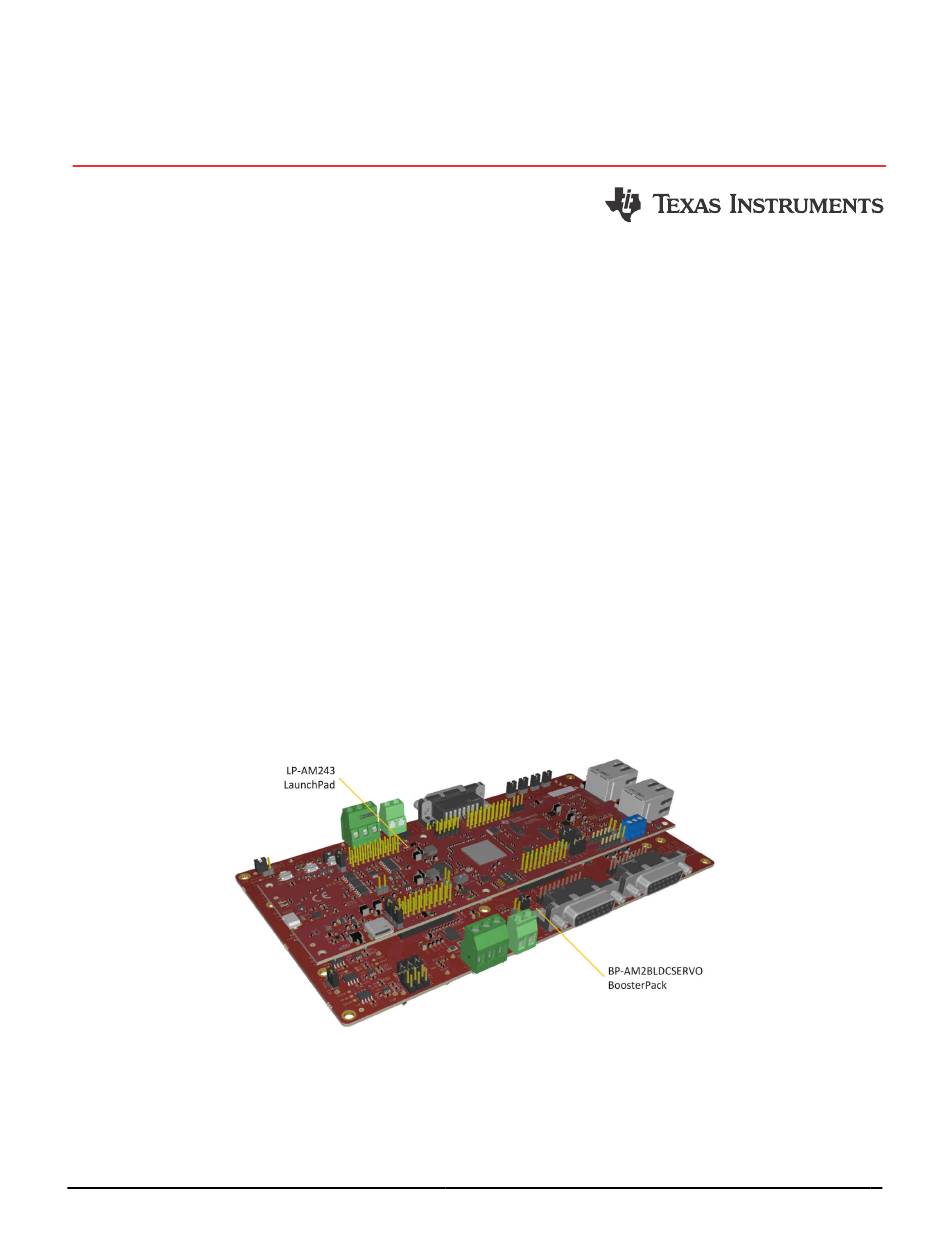

LP-AM243 LaunchPad Attached to BP-AM2BLDCSERVO BoosterPack
SPRUJ87 – JUNE 2023
Submit Document Feedback
MCU+ Academy
as
Copyright © 2023 Texas Instruments Incorporated
features easy-to-use training modules that range from
the basics of getting started to advanced development
topics.
Features
BOOST-XL TI BoosterPack Design - 80 digital/
analog I/O compatible with AM2x LaunchPad
Development Kits
Two axes of 3-phase BLDC motor drive with the
DRV8316R 24 V/8A monolithic gate drive and
amplifier bridges
Two axes (6 channels) of 3-phase current
feedback through AMC1035D Sigma-Delta
modulator and INA241A current sense path
Two axes of RS-485 based absolute encoder
feedback supporting multiple industrial encoder
standards
Single-axis of resolver feedback
Applications
Servo drive communication module
Servo drive control module
Servo drive position feedback
Servo drive position sensor
Servo drive power stage module
AM2x BLDC Servo Motor BoosterPack (BP-AM2BLDCSERVO)
Description
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BoosterPack AM2 BLDC Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Texas Instruments BoosterPack AM2 BLDC Series

  • Page 1 MCU+ software • Servo drive power stage module and tools on supported devices. The MCU+ Academy LP-AM243 LaunchPad Attached to BP-AM2BLDCSERVO BoosterPack SPRUJ87 – JUNE 2023 AM2x BLDC Servo Motor BoosterPack (BP-AM2BLDCSERVO) Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 2: Kit Contents

    Additionally, axis-1 includes direct INA241A current sense amplifier feedback channels for MCU ADC sampling and a resolver excitation and receiver amplifier network. AM2x BLDC Servo Motor BoosterPack (BP-AM2BLDCSERVO) SPRUJ87 – JUNE 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 3: Device Information

    INA241A are used as the shunt current sense amplifier to provide 3-phase current feedback from the DRV8316 motor driver. SPRUJ87 – JUNE 2023 AM2x BLDC Servo Motor BoosterPack (BP-AM2BLDCSERVO) Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 4 Thermal Warning Note The BP-AM2BLDCSERVO includes two motor driver amplifier devices, U6 and U7 (Texas Instruments Part Number DRV8316RRGFR) which can exceed 55 C case temperature during normal operation. The following additional PCB silkscreen and this user's guide statement has been added to alert users to these higher temperature components.
  • Page 5 TI recommends using an external power supply or accessory which complies with applicable regional safety standards such as (by example) UL, CSA, VDE, CCC, PSE. SPRUJ87 – JUNE 2023 AM2x BLDC Servo Motor BoosterPack (BP-AM2BLDCSERVO) Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 6: Power Requirements

    Follow the steps below to power off the device: 1. Power-off the 24V DC supply for the BoosterPack. 2. Power-off the LP-AM2x LaunchPad. AM2x BLDC Servo Motor BoosterPack (BP-AM2BLDCSERVO) SPRUJ87 – JUNE 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 7 The below figures show the location of major connectors, components and circuit functions used on this design. BP-AM2BLDCSERVO Top View, Major Component Areas and Connectors Highlighted Figure 2-2. BP-AM2BLDCSERVO Top View, Major Component Areas and Connectors Highlighted SPRUJ87 – JUNE 2023 AM2x BLDC Servo Motor BoosterPack (BP-AM2BLDCSERVO) Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 8 The attached LP-AM243 is shown with USB-C power and XDS110 debugger cable also attached. AM2x BLDC Servo Motor BoosterPack (BP-AM2BLDCSERVO) SPRUJ87 – JUNE 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 9 Axis-2 BLDC Driver Axis-1 SDFM Current Feedback Axis-2 SDFM Current Feedback Axis-1 Current Feedback Axis-2 Current Feedback Axis-1 Absolute Position Encoder SPRUJ87 – JUNE 2023 AM2x BLDC Servo Motor BoosterPack (BP-AM2BLDCSERVO) Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 10: Jumper Information

    These static jumper configurations must be checked and set prior to running different motor control scenarios. Figure 2-6. Layout Top View - Jumper Locations AM2x BLDC Servo Motor BoosterPack (BP-AM2BLDCSERVO) SPRUJ87 – JUNE 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 11 2-Wire/4-Wire MUX Select Compatible with Heidenhain Compatible with Heidenhain Uninstalled: RS-484 4-Wire Path EnDat22 EnDat22 Selected Encoders Encoders Installed: RS-485 2-Wire Path Selected SPRUJ87 – JUNE 2023 AM2x BLDC Servo Motor BoosterPack (BP-AM2BLDCSERVO) Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 12 LaunchPad ADC channels. The Axis-1 in-phase current sense path is only usable with the AM263x LaunchPad SAR ADC channels. Figure 2-7. Axis-1 ISENSE/VSENSE Select - Jumper J11, J13, and J26 Configuration AM2x BLDC Servo Motor BoosterPack (BP-AM2BLDCSERVO) SPRUJ87 – JUNE 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 13 SDFM AM1035 transceivers as well as clocking data into the AM2x MCU. SPRUJ87 – JUNE 2023 AM2x BLDC Servo Motor BoosterPack (BP-AM2BLDCSERVO) Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 14 Figure 2-10. PRU Sigma-Delta Modulator Clock Path Select – J17 Figure 2-11. BP-AM2BLDCSERVO Layout - Layout/Schematic Excerpt for PRU SDFM Clock Path Select – AM2x BLDC Servo Motor BoosterPack (BP-AM2BLDCSERVO) SPRUJ87 – JUNE 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 15 Overall Depth 4300 Mils Overall Height 1190.90 Mils Mount Hole Diameter 144.0 Mils Figure 2-12. BP-AM2BLDCSERVO PCB Assembly – Top View SPRUJ87 – JUNE 2023 AM2x BLDC Servo Motor BoosterPack (BP-AM2BLDCSERVO) Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 16: Mounting Holes

    LP-AM243 and the LP-AM263 LaunchPad to allow the LaunchPad boards to be secured through standoffs. For basic usage, the LaunchPad 80-pin connectors provide a strong retention force. AM2x BLDC Servo Motor BoosterPack (BP-AM2BLDCSERVO) SPRUJ87 – JUNE 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 17: System Power

    Figure 2-15. Motor Axis-1 Power Distribution Figure 2-16. Motor Axis-2 Power Distribution SPRUJ87 – JUNE 2023 AM2x BLDC Servo Motor BoosterPack (BP-AM2BLDCSERVO) Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 18 SDFM/current sense data back to the attached MCU. Figure 2-17. Common 3.3V Digital and Analog Power Tree AM2x BLDC Servo Motor BoosterPack (BP-AM2BLDCSERVO) SPRUJ87 – JUNE 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 19 AM2x EPWM are used as gate-driver inputs. Figure 2-18. Axis-1 DRV8316 Motor Drive Figure 2-19. Axis-2 DRV8316 Motor Drive SPRUJ87 – JUNE 2023 AM2x BLDC Servo Motor BoosterPack (BP-AM2BLDCSERVO) Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 20 The AMC1035 path provides sampled current feedback in a bitstream modulated format. This is intended to be used with the AM2x PRU SDFM demodulation firmware. Figure 2-20. Axis-1 Motor Current Feedback Paths AM2x BLDC Servo Motor BoosterPack (BP-AM2BLDCSERVO) SPRUJ87 – JUNE 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 21 The PRU peripheral provides for internal clock routing to each of the individual PRU SD Data channels. SPRUJ87 – JUNE 2023 AM2x BLDC Servo Motor BoosterPack (BP-AM2BLDCSERVO) Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 22 Figure 2-24. PRU SDFM Motor Current Feedback – Clock Tree Detail See the AMC1035D and INA241Ax data sheets for a full description of these two components operations. AM2x BLDC Servo Motor BoosterPack (BP-AM2BLDCSERVO) SPRUJ87 – JUNE 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 23 This axis-2 path is only compatible with the LP-AM243 LaunchPad pinout. Jumper J25 is used to select between 2-wire and 4-wire RS-485 options. SPRUJ87 – JUNE 2023 AM2x BLDC Servo Motor BoosterPack (BP-AM2BLDCSERVO) Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 24 Hardware www.ti.com Figure 2-27. Axis-2 - PRU Absolute Encoder Feedback AM2x BLDC Servo Motor BoosterPack (BP-AM2BLDCSERVO) SPRUJ87 – JUNE 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 25: Additional Information

    Texas Instruments. ® and Cortex ® are registered trademarks of Texas Instruments. All trademarks are the property of their respective owners. 4.2 Terminology 5 References Please see the following references for devices and other kits used with this BoosterPack...
  • Page 26 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
  • Page 27 www.ti.com Regulatory Notices: 3.1 United States 3.1.1 Notice applicable to EVMs not FCC-Approved: FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and software developers to write software applications for use with the end product.
  • Page 28 www.ti.com Concernant les EVMs avec antennes détachables Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à...
  • Page 29 www.ti.com EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS. 4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling or using the EVM, including without limitation any warning or restriction notices.
  • Page 30 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2023, Texas Instruments Incorporated...
  • Page 31 TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products. TI objects to and rejects any additional or different terms you may have proposed. IMPORTANT NOTICE Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2023, Texas Instruments Incorporated...
