Method 1 (Manual ID Assignment)

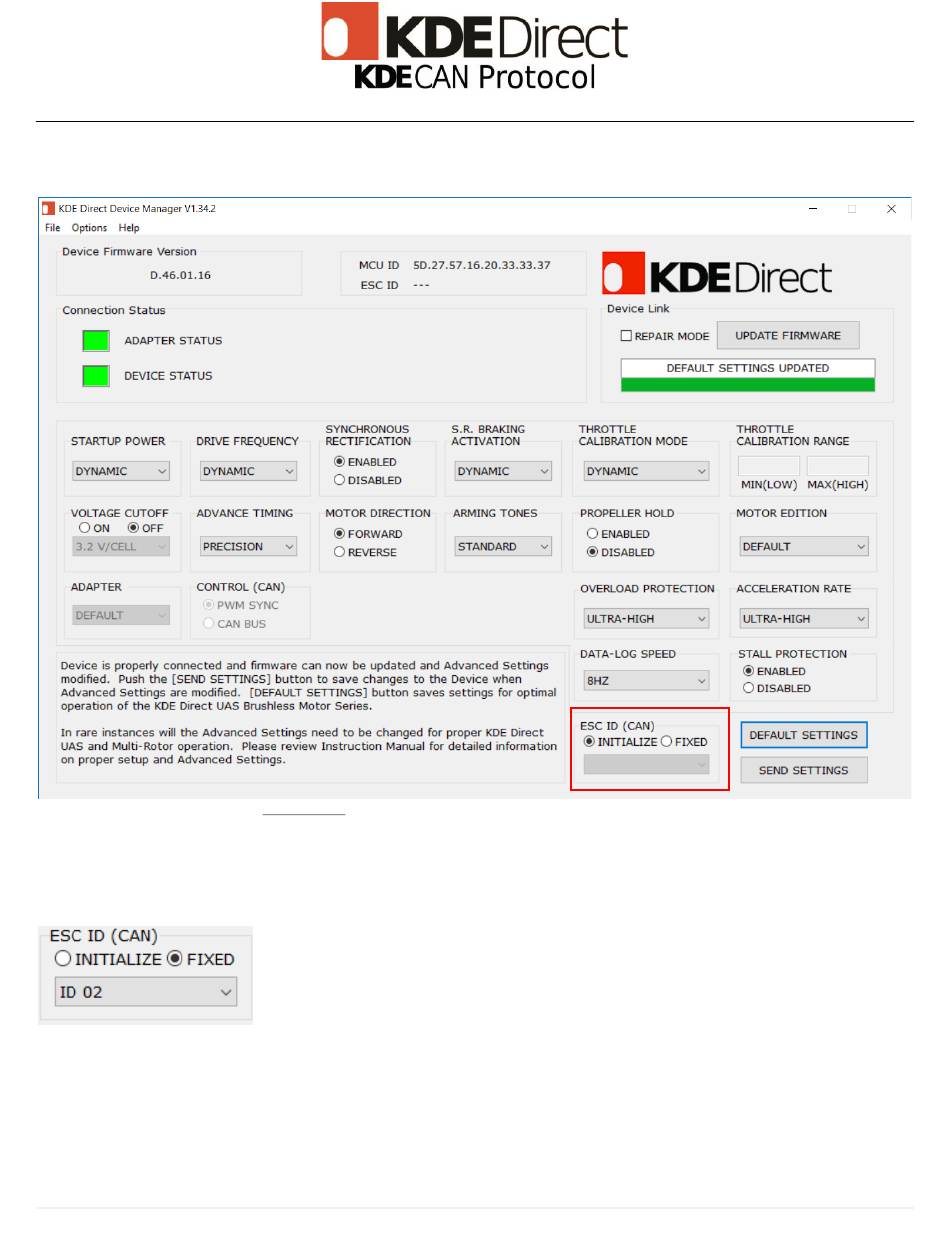

Figure 4: KDE Direct Device Manager
• The ESC ID can be set in the KDE Device Manager through the ESC ID (CAN) selection.
• To set the ESC ID, press the FIXED checkbox, select the desired ID, and press the SEND SETTINGS
button.

Figure 5: ESC Unique ID Assignment

REV 1.1.1 (Last Modified May 25, 2023)
(download link)
9 | 29 R E V 1 . 1 . 1
