REV 1.1.1 (Last Modified May 25, 2023)
For manual configuration, please refer to the picture shown below:

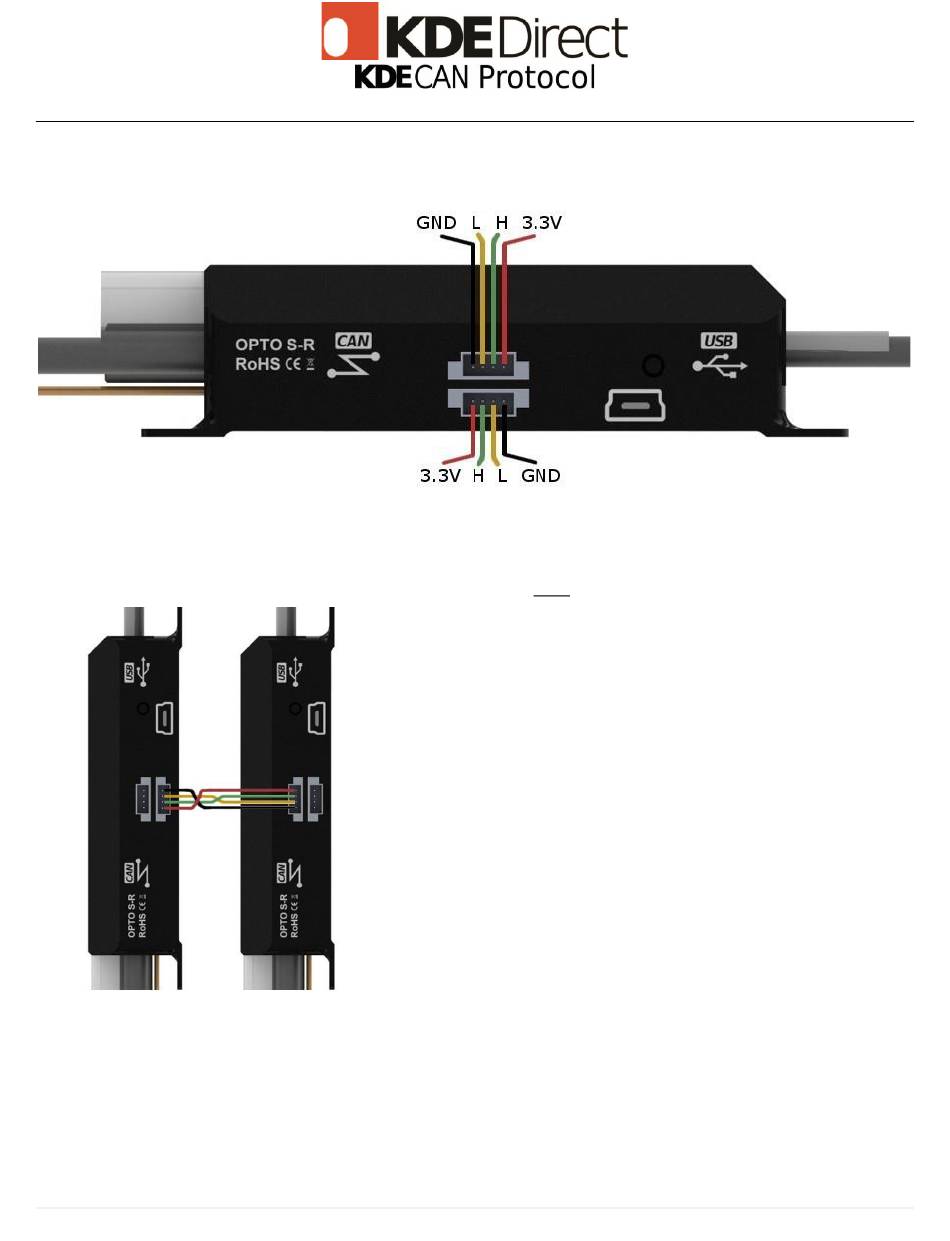

Figure 1: CAN bus port configuration.

Connect multiple ESCs together following the wire setup shown below. To connect additional ESCs, simply
connect the two closest CAN bus ports. Wire kits can be found here.

Figure 2: ESC to ESC CAN bus connection.
