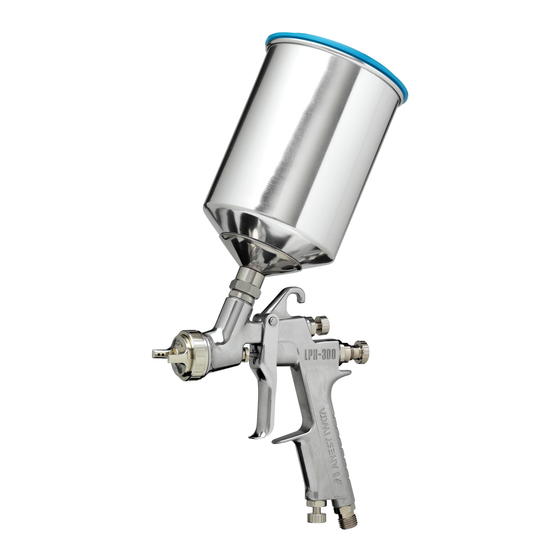

LPH 300 LV LOW PRESSURE SPRAY GUN
Before use, adjustment or maintenance, it is important to read this instruction manual very
GB
carefully. This manual must be stored in a safe place for any future reference that may be necessary.
This ANEST IWATA spray guns kit complies to ATEX regulations 94/9/EC, protection level:
II 2 G X Suitable for using Zones 1 and 2.
X marking: Any static electricity discharge from the spray gun is to be diverted to the ground via the conductive air hose as stipulated.
IMPORTANT
This spray gun should be operated only by an adequately trained operator, for safe use and maintenance of the equipment. Any
misuse or handling other than those indicated in this Instruction Manual is not covered by guarantee. ANEST IWATA disclaims
all responsibility for any accident or damage caused by failure to observe the operational and safety procedures in this manual.
In the interest of user friendliness, this manual contains information in a brief and concise form.
For any additional information you may require regarding spray gun operations, or if any missing parts or any damage during
transportation is found, please contact your nearest ANEST IWATA Company (see last cover page).
Be sure to observe warnings and cautions in this instruction manual.
If not, it can cause paint ejection and serious bodily injury by drawing organic solvent.
Be sure to observe following marked items which are especially important.
WARNING Indicates a potentially hazardous situation which, if not avoided, may result in serious injury or loss of life.
CAUTION Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury or pro-
perty damage.
IMPORTANT Indicates notes which we ask you to observe. The safety precautions in this instruction manual are the mini-
mum necessary conditions. Follow national and local regulations regarding fire prevention, electricity and
safety as well as your own company regulations.
IMPORTANT SPECIFICATIONS
Max. Pressure: 6.8 bar (98 PSI)
Noise Level (LAeqT) 70.1 dB (A)
Spray conditions Recommended
Measuring point 1m backwards from gun, 1,6 m height
TECHNICAL SPECIFICATIONS
Model Nozzle Air cap Air pressure
orifice set at gun inlet
(ø mm) Mark bar (PSI)
LPH-300 LV Gravity feed
LPH-300-104LV 1.0 (0.039) 1.0 (14)
LPH-300-104LV 1.0 (0.039) 1.3 (18)
LPH-300-124LV 1.2 (0.047) 1.0 (14)
LPH-300-124LV 1.2 (0.047) 1.3 (18)
LPH-300-134LV 1.3 (0.051) 1.0 (14)
LPH-300-134LV 1.3 (0.051) LV4 1.3 (18)
LPH-300-144LV 1.4 (0.055) 1.0 (14)
LPH-300-144LV 1.4 (0.055) 1.3 (18)
LPH-300-164LV 1.6 (0.063) 1.3 (18)
LPH-300-184LV 1.8 (0.070) 1.3 (18)
LPH-300-204LV 2.0 (0.078) 1.3 (18)
* Tested with 12 sec/Ford cup #4 automotive repair paint.
Manufactured by: ANEST IWATA Corporation 3176,Shinyoshida-cho, Kohoku-ku, Yokohama, 223-8501 Japan
Instruction Manual
Max. Temperature:
Atmosphere 5 ~ 40 °C
Air and fluid 5 ~ 43 °C
Air connection: G 1/4"
Fluid connection: G 1/4"
Air pressure Fluid Air Pattern
inside air cap output consumption width
bar (PSI) ml/min l/min(cfm) mm(in)
0.5 (7.1) *80 200 (7.1) 180 (7.1)
0.7 (10) 50 240 (8.5) 200 (7.9)
0.5 (7.1) *90 200 (7.1) *210 (8.3)
0.7 (10) 70 240 (8.5) 210 (8.3)
0.5 (7.1) *120 200 (7.1) *220 (8.7)
0.7 (10) 80 240 (8.5) 230 (9.1)
0.5 (7.1) *130 200 (7.1) *230 (9.1)
0.7 (10) 90 240 (8.5) 250 (9.8)
0.7 (10) 110 240 (8.5) 230 (9.1)
0.7 (10) 130 240 (8.5) 230 (9.1)
0.7 (10) 150 240 (8.5) 230 (9.1)
Weight
g
320
