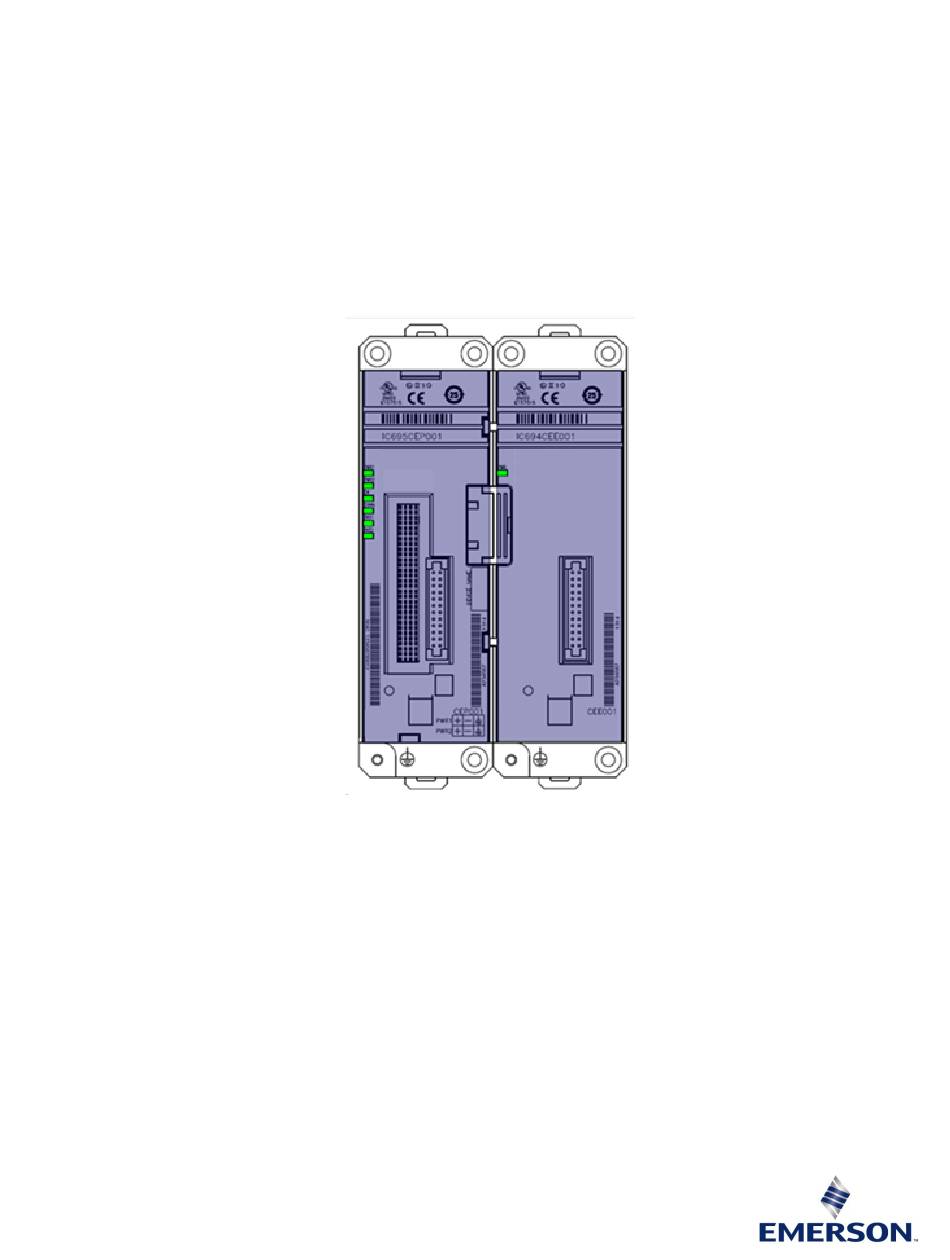

- Page 1 IMPORTANT PRODUCT INFORMATION GFK-2884K Feb 2022 PACSystems RX3i CEP CARRIER (IC695CEP001 & IC694CEE001)
- Page 2 Changes, modifications, and/or improvements to equipment and specifications are made periodically and these changes may or may not be reflected herein. It is understood that Emerson may make changes, modifications, or improvements to the equipment referenced herein or to the document itself at any time. This document is intended for trained personnel familiar with the Emerson products referenced herein.
-
Page 3: Ordering Information

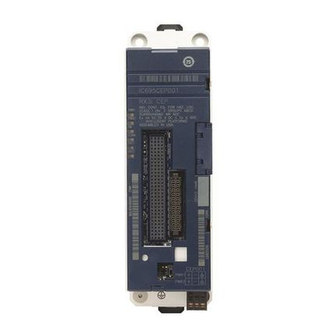

Feb 2022 Introduction The PACSystems RX3i Carrier IC695CEP001 interfaces a remote node, consisting of one RX3i I/O module, to a PROFINET I/O Local Area Network (LAN). The optional RX3i Expansion Carrier IC694CEE001 attaches to the RX3i CEP001 Carrier and provides the ability to add one additional RX3i IC694 I/O module to the remote node. -
Page 4: Specifications
Configuration V2.3 GSDML file available for import into 3rd-Party tools. Note: For product standards, general operating specifications, and installation requirements, refer to GFK-2314, PACSystems RX3i System Manual. _________________________ Value does not include the power consumption of the installed I/O modules. When calculating the total power requirements, add the power consumption of... -
Page 5: Installation Location
At a minimum, the enclosure shall provide a degree of protection against solid objects as small as 12mm (fingers, for example). This equates to a NEMA/UL Type 1 enclosure or an IEC60529 IP20 rating providing at least a pollution degree 2 environment. For details about installing RX3i rack systems, refer to PACSystems RX3i System Manual, GFK-2314. - Page 6 GFK-2884K Feb 2022 Connect LED The CONN LED indicates the status of PROFINET connections. Green, ON At least one PROFINET connection (AR) exists with an IO-Controller Amber, blink pattern Fatal error. Flashes once between error codes blinked on the OK LED Amber, blink in 1Hz No device name configured No PROFINET connection (AR) exists...
- Page 7 GFK-2884K Feb 2022 Quick Start Carrier Installation Requirements Figure 1: Dimension The CEP001 Carrier and optional Expansion Carrier CEE001 can be mounted on a DIN-rail or on a panel. Adequate installation space is required for: 1. Clearance for communications port cables. 2.
-
Page 8: Panel Mounting
GFK-2884K Feb 2022 Installing an RX3i CEP001 Carrier on a DIN-rail Figure 3: Installing on DIN Rail The carrier mounts on a standard EN 50022, 35 x 7.5 mm DIN-rail. Conductive (unpainted) finish is required for proper grounding. For best resistance to vibration, the DIN-rail should be installed horizontally on a panel using screws spaced approximately 15 cm (6”) apart. - Page 9 Installing Modules on the Carrier The insertion and removal of I/O modules is the same as in an RX3i Universal Backplane. For details, refer to GFK-2314, PACSystems RX3i System Manual. Caution Failure to do so Do not install a Power Supply module on the CEP001 or CEE001 Carrier. Attempting to do so could...
- Page 10 GFK-2884K Feb 2022 Unsupported Modules Caution If an unsupported module is inserted in the CEP001 or CEE001 Carrier, the module will not be recognized correctly and could cause damage to the Carrier or the module. When an unsupported I/O module is inserted into either the RX3i CEP001 Carrier or RX3i CEE001 Expansion Carrier, no alarm is reported to indicate this.
-
Page 11: Adding A Redundant Power Supply
5. Apply power to the redundant power supply. The PWR2 LED on the RX3i CEP001 carrier should turn on. 6. Apply power to the primary power supply. The PWR1 LED on the CEP001 Carrier should turn on. Note: For the procedure to swap a redundant power supply, refer to PACSystems RX3i PROFINET Scanner IC695CEP001 User Manual, GFK-2883. - Page 12 GFK-2884K Feb 2022 Connecting the CEP001 to the PROFINET Network Figure 8: Profinet Connection The two external RJ-45 Ethernet ports, which provide 10/100 Mbps copper interfaces, are on the bottom of the CEP001 Carrier. Devices connected to the RX3i CEP001 ports should have Ethernet Auto-negotiation enabled. The RX3i CEP001 Carriers and other participating devices can be connected in a daisy-chain/line, or star topology.
-
Page 13: Supported I/O Modules
CEP001 is included with PAC Machine Edition or may be downloaded from the support website. See links provided at the end of this document. To obtain the GSDML for import into a 3rd-Party tool, contact Emerson. Supported I/O Modules The following table indicates the minimum CEP001 firmware version required for compatibility with the listed I/O modules and whether the module can be installed in the RX3i Expansion Carrier CEE001. - Page 14 GFK-2884K Feb 2022 Earliest Distin- CEE001 Catalog CEP001 Module Description guishing Comp- Number Compatible Classes atible Version IC694MDL241 16 Circuit Input 24 Vac / Vdc 16 in 2.50 IC694MDL250 16 Circuit Input 120 Vac Isolated None 1.00 IC694MDL260 32 Circuit Input 120 Vac None 2.50 IC694MDL632...
- Page 15 GFK-2884K Feb 2022 Earliest Distin- CEE001 Catalog CEP001 Module Description guishing Comp- Number Compatible Classes atible Version IC693MDL734 6 Circuit Output 125 Vdc 1A Positive/Negative 8 out 2.50 IC694MDL740 16 Circuit Output 12/24 Vdc 0.5A Positive 16 out 2.50 IC694MDL741 16 Circuit Output 12/24 Vdc 1A Negative 16 out 2.50...
-
Page 16: Important Product Information
Firmware updated to address an issue reported on ‘MRP enabled’ bit IC695CEP001-ACAJ 2.71 available in CEP input status data. 2020 Following Emerson’s acquisition of this product, changes have been made to apply appropriate branding and registration of the product with IC695CEP001-ACAH 2.70 required certification agencies. No change in form-fit-functionality. -
Page 17: New Features And Enhancements
Release History for IC694CEE001 Version Date Comments Following Emerson’s acquisition of this product, changes have been made to apply IC694CEE001-BA appropriate branding and registration of the product with required certification agencies. 2019 No changes to material, process, form, fit or functionality. -
Page 18: Operational Notes
GFK-2884K Feb 2022 Restrictions and Open Issues Restriction / Issue Description When configuring RX3i CEP001 under PROFINET HSB redundancy, if you pull the I/O module installed on an RX3i CEP001 while switching the current primary/backup CPU role, then plug Pulling and plugging a module the I/O module back in and switch the primary/backup CPU role back, the I/O module might during HSB roll switch can make be lost. - Page 19 I/O module may show as a Generic IO module in a subsequent PROFINET network scan. Emerson Device Essentials software (v 01.04.00) may stop responding when trying to view live data for more than 30 number of HART devices simultaneously.
-
Page 20: Additional Information
Manuals can be downloaded from the support website. See links provided at the end of this document. PACSystems RX3i PROFINET Scanner IC695CEP001 User Manual GFK-2883 PACSystems RX3i PROFINET Controller User Manual GFK- 2571 PACSystems RX3i PROFINET Controller Command Line Interface Manual GFK-2572 PACSystems RX3i CPU Reference Manual GFK-2222 PACSystems RX3i CPU Programmer’s Reference Manual GFK-2950... -
Page 21: General Contact Information
Note: If the product is purchased through an Authorized Channel Partner, please contact the seller directly for any support. Emerson reserves the right to modify or improve the designs or specifications of the products mentioned in this manual at any time without notice. Emerson does not assume responsibility for the selection, use or maintenance of any product.
